IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM225DX-24TIGBT MOD 1200V 225A 1470W |
13,042 |
|
- |
T | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 225 A | 1470 W | 17.5V @ 15V, 225A | 1 mA | 55 nF @ 10 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
APTGT35A120T1GIGBT MODULE 1200V 55A 208W SP1 |
13,862 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
FP10R12YT3BOMA1MOD IGBT LOW PWR EASY2-1 |
10,188 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F3L200R12W2H3PB11BPSA1MODULE IGBT 1200V EASY2B-2 |
5,358 |
|
- |
EasyPACK™ | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP20R06YE3B4BOMA1MOD IGBT LOW PWR EASY2-1 |
8,220 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS75R12KT4BPSA2LOW POWER ECONO AG-ECONO2B-411 |
5,030 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP35R12N2T4B86BPSA1LOW POWER ECONO |
12,490 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT200A60TGIGBT MODULE 600V 290A 625W SP4 |
11,358 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150DU60TGIGBT MODULE 600V 225A 480W SP4 |
15,324 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Dual, Common Source | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
FP10R12YT3B4BOMA1MOD IGBT LOW PWR EASY2-1 |
6,544 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGLQ100DA120T1GIGBT MODULE 1200V 170A 520W SP1 |
14,748 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Boost Chopper | 1200 V | 170 A | 520 W | 2.42V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
FP50R12N2T7B11BPSA2LOW POWER ECONO |
18,108 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
MG1225H-XN2MMIGBT MOD 1200V 40A 147W |
10,302 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 40 A | 147 W | 1.7V @ 15V, 25A | 100 µA | 1.81 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
MWI75-06A7IGBT MODULE 600V 90A 280W E2 |
9,190 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 90 A | 280 W | 2.6V @ 15V, 75A | 1.3 mA | 3.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|

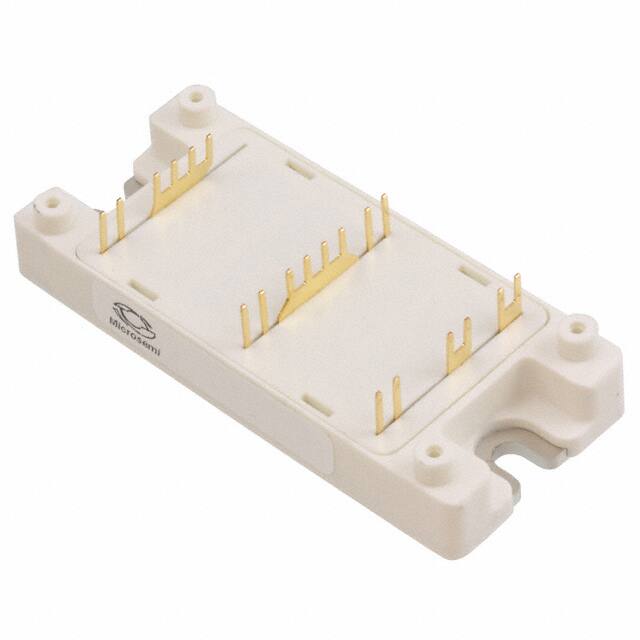

APTGF100A120TGIGBT MODULE 1200V 135A 568W SP4 |
11,038 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
FS75R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
7,622 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
MG1750S-BN4MMIGBT MODULE 1700V 75A 320W S3 |
16,996 |
|
- |
- | S-3 Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 75 A | 320 W | 2.45V @ 15V, 50A | 3 mA | 4.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | S3 |
|
|
CM20TF-12HIGBT MODULE 600V 20A 125W |
10,116 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 20 A | 125 W | 2.8V @ 15V, 20A | 1 mA | 2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT50DU170TGIGBT MODULE 1700V 75A 312W SP4 |
11,598 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Dual, Common Source | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
MWI75-06A7TIGBT MODULE 600V 90A 280W E2 |
7,636 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 90 A | 280 W | 2.6V @ 15V, 75A | 1.3 mA | 3.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
