IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM100DU-12HIGBT MOD 600V 100A 400W |
7,910 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MII145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
13,164 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Half Bridge | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MUBW15-12A7IGBT MODULE 1200V 35A 180W E2 |
6,088 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 35 A | 180 W | 2.6V @ 15V, 15A | 900 µA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
APTGT400SK60D3GIGBT MODULE 600V 500A 1250W D3 |
18,948 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGT50DDA60T3GIGBT MODULE 600V 80A 176W SP3 |
8,476 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
MIF150R12C2TL-BPGBT MODULES |
13,538 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Half Bridge Inverter | 1200 V | 150 A | 833 W | 1.85V @ 15V, 150A | 1 mA | 11000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
APTGLQ30H65T3GIGBT MODULE 650V 40A 95W |
6,260 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 40 A | 95 W | 2.3V @ 15V, 30A | 50 µA | 1.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FMG2G300US60EIGBT MODULE 600V 300A 892W 7PMHA |
18,688 |
|
- |
- | 7PM-HA | Box | Obsolete | - | Half Bridge | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-HA |
|
APTGT50A120T1GIGBT MODULE 1200V 75A 277W SP1 |
6,662 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
MIXA60W1200TEDIGBT MODULE 1200V 85A 290W E2 |
5,252 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MIXG240RF1200P-PCIGBT MODULE MIXG240RF1200PTED-PC |
18,268 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

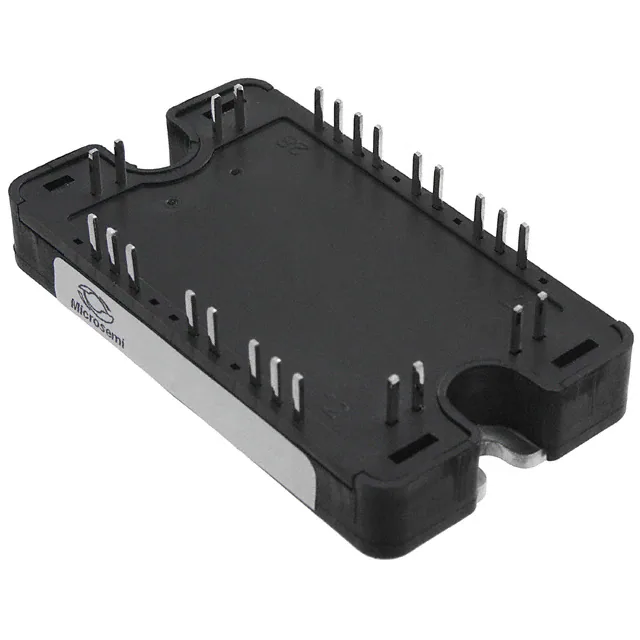

APTGF150A120T3AGIGBT MODULE 1200V 210A 1041W SP3 |
7,588 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 210 A | 1041 W | 3.7V @ 15V, 150A | 250 µA | 9.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
FP50R12N2T4B86BPSA1LOW POWER ECONO |
11,140 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIF200R12C2TF-BPGBT MODULES |
12,938 |
|
- |
- | Module | Tape & Reel (TR) | Active | Trench | Half Bridge Inverter | 1200 V | 200 A | 1250 W | 2.4V @ 15V, 200A | 1 mA | 12800 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
APTGT50H60T1GIGBT MODULE 600V 80A 176W SP1 |
11,266 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGLQ50DDA65T3GIGBT MODULE 650V 70A 175W |
13,514 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
APTGLQ50VDA65T3GIGBT MODULE 650V 70A 175W SP3F |
13,780 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
APTGT200SK120D3GIGBT MODULE 1200V 300A 1050W D3 |
8,354 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 300 A | 1050 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
FP75R07N2E4B16BPSA1LOW POWER ECONO |
12,430 |
|
- |
EconoPIM™2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | - | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
APTGT30A170T1GIGBT MODULE 1700V 45A 210W SP1 |
17,090 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
