IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT20H60T1GIGBT MODULE 600V 32A 62W SP1 |
7,992 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
VS-50MT060PHTAPBFMODULES IGBT - MTP SWITCH |
4,626 |
|
- |
HEXFRED® | 12-MTP Module | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 121 A | 305 W | 1.64V @ 15V, 50A | 100 µA | 6000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | 12-MTP |
|
|
FP25R12N2T7B80BPSA1LOW POWER ECONO |
11,156 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | - | - | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-EASY2B |
|
|
FS3L50R07W2H3B11BPSA1IGBT MODULE 650V 75A 215W |
5,898 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 215 W | 1.8V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
APTGT150A60TGIGBT MODULE 600V 225A 480W SP4 |
8,026 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
MG0675S-BN4MMIGBT MODULE 600V 75A 250W S3 |
18,438 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
APT100GN120JDQ4IGBT MOD 1200V 153A 446W ISOTOP |
16,112 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 153 A | 446 W | 2.1V @ 15V, 100A | 200 µA | 6.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
MG06100S-BR1MMIGBT MODULE 600V 150A 625W S3 |
5,248 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 150 A | 625 W | 1.9V @ 15V, 100A (Typ) | 500 µA | 5.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
IXBN75N170IGBT MOD 1700V 145A 625W SOT227B |
5,908 |
|
- |
BIMOSFET™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1700 V | 145 A | 625 W | 3.1V @ 15V, 75A | 25 µA | 6.93 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
APTGL90DA120T1GIGBT MODULE 1200V 110A 385W SP1 |
9,790 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 1200 V | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
MII100-12A3IGBT MODULE 1200V 135A 560W Y4M5 |
11,232 |
|
- |
- | Y4-M5 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 135 A | 560 W | 2.7V @ 15V, 75A | 5 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
APTGT50DH60T1GIGBT MODULE 600V 80A 176W SP1 |
6,794 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT20TL601GIGBT MODULE 600V 32A 62W SP1 |
12,268 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
MIP25R12E1ATN-BPIGBT MODULES |
4,964 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Three Phase Inverter | 1200 V | 25 A | 166 W | 2.25V @ 15V, 25A | 1 mA | 1450 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
F3L75R12W1H3PB11BPSA1LOW POWER EASY AG-EASY1B-311 |
6,420 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF150R12KE3B8BPSA1LOW POWER ECONO AG-ECONO2B-311 |
16,014 |
|
- |
* | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

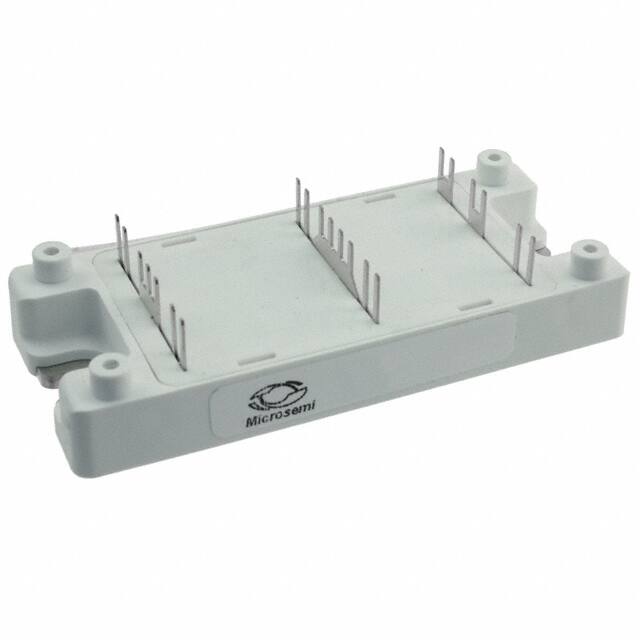

APTGF75DSK120TGIGBT MODULE 1200V 100A 500W SP4 |
13,180 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Dual, Common Source | 1200 V | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
CM50DU-24FIGBT MOD 1200V 50A 320W |
13,856 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 50 A | 320 W | 2.4V @ 15V, 50A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FP15R06YE3B4BOMA1MOD IGBT LOW PWR EASY2-1 |
9,740 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MG12105S-BA1MMIGBT MODULE 1200V 150A 690W S3 |
19,140 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 690 W | 1.8V @ 15V, 100A (Typ) | 500 µA | 7.43 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
