IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

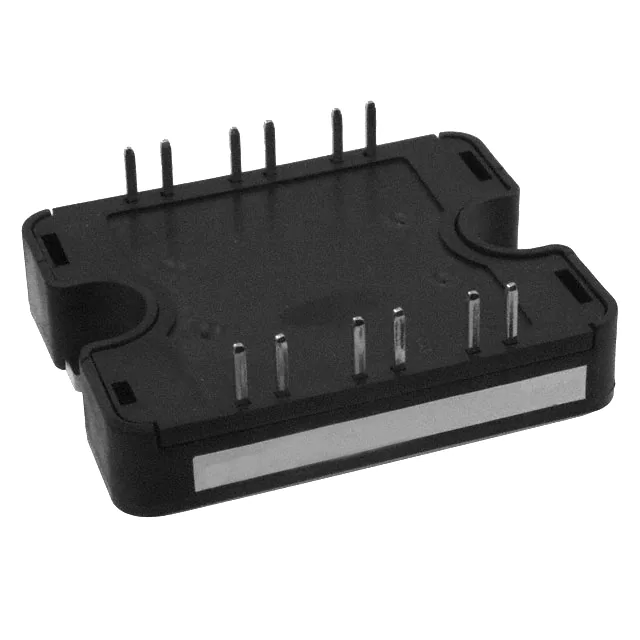

APTGT100DA60T1GIGBT MODULE 600V 150A 340W SP1 |
8,006 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
A2C50S65M2-FIGBT MOD 650V 50A 208W ACEPACK2 |
12,148 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
MUBW30-06A7IGBT MODULE 600V 50A 180W E2 |
16,718 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 50 A | 180 W | 2.3V @ 15V, 30A | 600 µA | 1.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MIXA30W1200TEDIGBT MODULE 1200V 43A 150W E2 |
11,152 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 43 A | 150 W | 2.1V @ 15V, 25A | 2.1 mA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
APT100GT120JRIGBT MOD 1200V 123A 570W ISOTOP |
17,608 |
|
- |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 123 A | 570 W | 3.7V @ 15V, 100A | 100 µA | 6.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
NXH80T120L2Q0P2GIC MODULE PIM 1200V 80A |
18,586 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 67 A | 158 W | 2.85V @ 15V, 80A | 300 µA | 19.4 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|

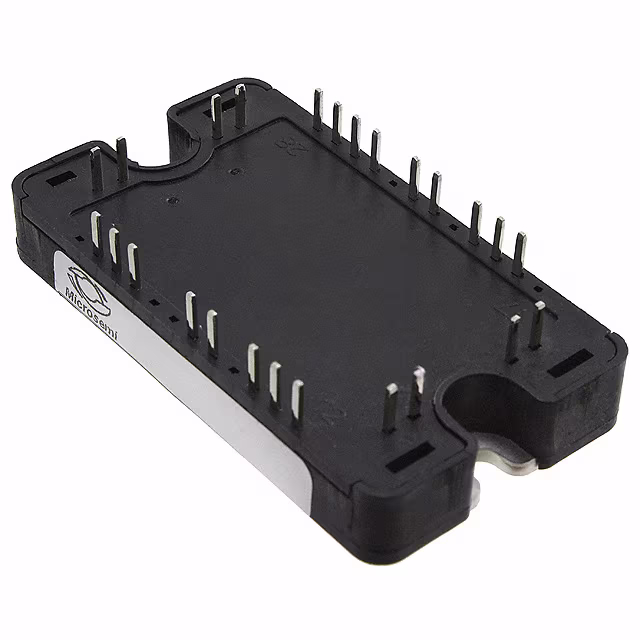

APTGF90H60T3GIGBT MODULE 600V 120A 416W SP3 |
4,108 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 120 A | 416 W | 2.45V @ 15V, 100A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
FS75R07N2E4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
8,784 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 250 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
MUBW35-06A6IGBT MODULE 600V 38A 104W E1 |
11,596 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 38 A | 104 W | 2.5V @ 15V, 30A | 1 mA | 1.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
APTGT75DH120TGIGBT MODULE 1200V 110A 357W SP4 |
11,626 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
NXH80T120L3Q0S3TGPIM GENERATION3 Q0PACK 1200V, 80 |
19,342 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18150 pF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
|
CM75E3U-24HIGBT MOD 1200V 75A 600W |
9,832 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 75 A | 600 W | 3.7V @ 15V, 75A | 1 mA | 11 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MUBW35-12E7IGBT MODULE 1200V 52A 225W E2 |
19,138 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 52 A | 225 W | 2.8V @ 15V, 35A | 400 µA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
FP25R12N2T7B16BPSA1LOW POWER ECONO |
14,192 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | - | - | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-EASY2B |
|
|
IRG7T100HF12AIGBT MOD 1200V 200A POWIR 34 |
9,552 |
|
- |
- | POWIR® 34 Module | Box | Obsolete | - | Half Bridge | 1200 V | 200 A | 575 W | 2.2V @ 15V, 100A | 1 mA | 13.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 34 |
|
VS-GT140DA60UIGBT MOD 600V 200A 652W SOT227 |
17,182 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | Trench | Single | 600 V | 200 A | 652 W | 2V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
|
FP35R12W2T7PB11BPSA1EASY STANDARD |
5,254 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FMG2G150US60IGBT MODULE 600V 150A 595W 7PMHA |
18,722 |
|
- |
- | 7PM-HA | Box | Obsolete | - | Half Bridge | 600 V | 150 A | 595 W | 2.7V @ 15V, 150A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-HA |
|
|
FS75R07N2E4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
9,856 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 250 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FS35R12KE3GBPSA1LOW POWER ECONO AG-ECONO2B-311 |
5,112 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 55 A | 200 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
