IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 |
8,706 |
|
- |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
FMG2G50US120IGBT MODULE 1200V 50A 320W 7PMGA |
13,558 |
|
- |
- | 7PM-GA | - | Obsolete | - | Half Bridge | 1200 V | 50 A | 320 W | 3V @ 15V, 50A | 3 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 |
5,676 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
VKI50-12P1IGBT MOD 1200V 49A 208W ECO-PAC2 |
15,710 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 49 A | 208 W | 3.7V @ 15V, 50A | 1.1 mA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | ECO-PAC2 |
|

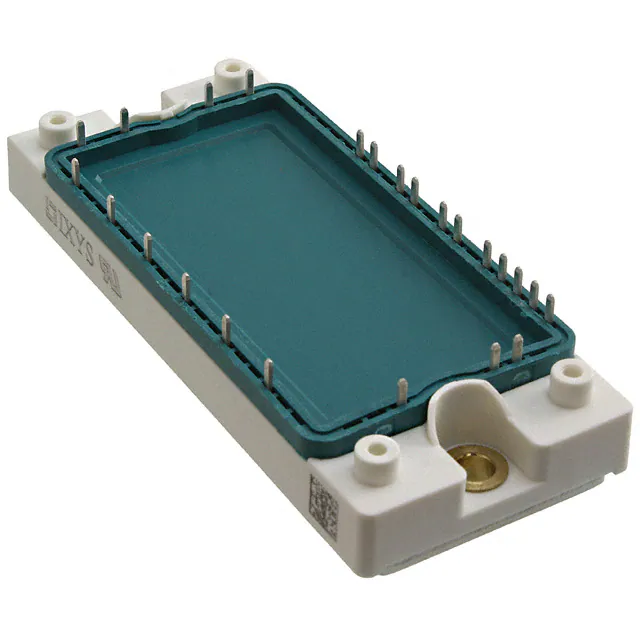

MUBW10-06A7IGBT MODULE 600V 20A 85W E2 |
9,518 |
|
- |
- | E2 | Bulk | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 20 A | 85 W | 2.3V @ 15V, 10A | 600 µA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
MG1250S-BA1MMIGBT MODULE 1200V 80A 500W S3 |
12,466 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 80 A | 500 W | 1.8V @ 15V, 50A (Typ) | 500 µA | 4.29 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
|
MUBW30-12A6KIGBT MODULE 1200V 30A 130W E1 |
13,778 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 30 A | 130 W | 3.8V @ 15V, 30A | 1 mA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
MUBW25-06A6IGBT MODULE 600V 27.5A 77W E1 |
11,490 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 27.5 A | 77 W | 2.5V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | E1 |
|
|
MKI50-06A7IGBT MODULE 600V 72A 225W E2 |
12,116 |
|
- |
- | E2 | Box | Obsolete | NPT | Full Bridge Inverter | 600 V | 72 A | 225 W | 2.4V @ 15V, 50A | 600 µA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MWI25-12E7IGBT MODULE 1200V 52A 225W E2 |
6,116 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 52 A | 225 W | 2.4V @ 15V, 25A | 400 µA | 2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
APTGF50X60T3GIGBT MODULE 600V 65A 250W SP3 |
6,226 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
MDI100-12A3IGBT MODULE 1200V 135A 560W Y4M5 |
8,786 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 135 A | 560 W | 2.7V @ 15V, 75A | 5 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MID100-12A3IGBT MODULE 1200V 135A 560W Y4M5 |
5,256 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 135 A | 560 W | 2.7V @ 15V, 75A | 5 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MWI30-06A7IGBT MODULE 600V 45A 140W E2 |
11,920 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 45 A | 140 W | 2.4V @ 15V, 30A | 600 µA | 1.6 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
FP35R12W2T7PBPSA1LOW POWER EASY |
7,836 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
MDI75-12A3IGBT MODULE 1200V 90A 370W Y4M5 |
15,420 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
APTGF50DA120TGIGBT MODULE 1200V 75A 312W SP4 |
17,592 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | NPT | Single | 1200 V | 75 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGF50SK120TGIGBT MODULE 1200V 75A 312W SP4 |
5,700 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | NPT | Single | 1200 V | 75 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGF100DA120TGIGBT MODULE 1200V 135A 568W SP4 |
19,726 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Single | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
MIF100R12C1PF-BPInterface |
13,528 |
|
- |
- | Module | Bulk | Active | NPT | 2 Independent | 1200 V | 100 A | 675 mW | 3V @ 15V, 100A | 1 mA | 6700 pF @ 25 V | - | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
