IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1P50S65M2-FIGBT MOD 650V 50A 208W ACEPACK1 |
13,334 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|

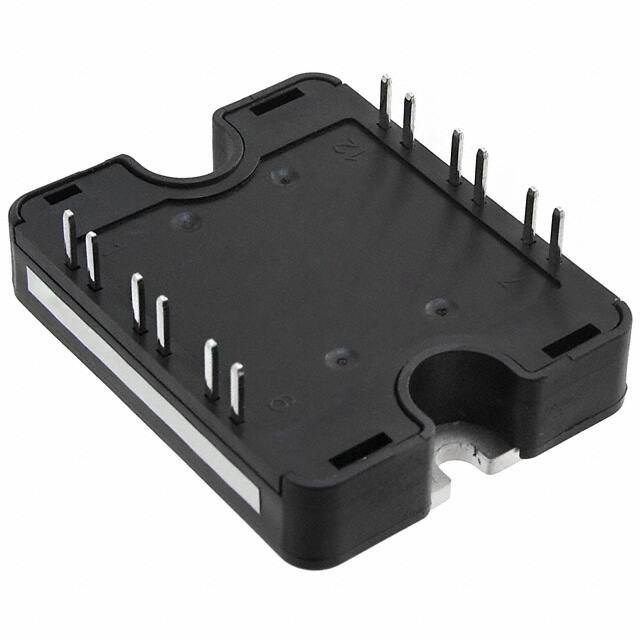

APTGF25H120T1GIGBT MODULE 1200V 40A 208W SP1 |
12,190 |
|
- |
- | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
APTGF50H60T3GIGBT MODULE 600V 65A 250W SP3 |
16,952 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
APTGT30H60T3GIGBT MODULE 600V 50A 90W SP3 |
12,186 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FMG2G100US60IGBT MODULE 600V 100A 400W 7PMGA |
6,078 |
|
- |
- | 7PM-GA | Bulk | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 10.84 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
|
FMG1G75US60LIGBT MODULE 600V 75A 310W 7PMGA |
5,832 |
|
- |
- | 7PM-GA | Bulk | Obsolete | - | Single | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 7.056 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
|
MIP35R12P3STN-BPIGBT DISCRETE |
6,924 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter with Brake | 1200 V | 35 A | 215 W | 1.82V @ 15V, 35A | 1 mA | 2500 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | P3S |
|
|
IRG5K100HF06AIGBT MOD 600V 170A 405W POWIR 34 |
13,130 |
|
- |
- | POWIR® 34 Module | Box | Obsolete | - | Half Bridge | 600 V | 170 A | 405 W | 2.1V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 34 |
|
|
APTGL60DH120T3GIGBT MODULE 1200V 80A 280W SP3 |
8,878 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 1200 V | 80 A | 280 W | 2.25V @ 15V, 50A | 250 µA | 2.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
MUBW15-06A7IGBT MODULE 600V 25A 100W E2 |
17,002 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 25 A | 100 W | 2.3V @ 15V, 15A | 600 µA | 800 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
APTGV15H120T3GIGBT MODULE 1200V 25A 115W SP3 |
6,376 |
|
- |
- | SP3 | Bulk | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 25 A | 115 W | 2.1V @ 15V, 15A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
MKI80-06T6KIGBT MODULE 600V 89A 210W E1 |
8,872 |
|
- |
- | E1 | Box | Obsolete | Trench | Full Bridge Inverter | 600 V | 89 A | 210 W | 2.3V @ 15V, 75A | 500 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
CPV364M4FIGBT MODULE 600V 27A 63W IMS-2 |
5,238 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | - | Obsolete | - | Three Phase Inverter | 600 V | 27 A | 63 W | 1.6V @ 15V, 27A | 250 µA | 2.2 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CP25TD1-24AIGBT MODULE 1200V 25A 138W |
11,574 |
|
- |
- | 26-DIP Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 25 A | 138 W | 2.5V @ 15V, 25A | 1 mA | 4.94 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -20°C ~ 150°C (TJ) | Through Hole | - |
|
|
APTGF50DH120T3GIGBT MODULE 1200V 70A 312W SP3 |
6,154 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|

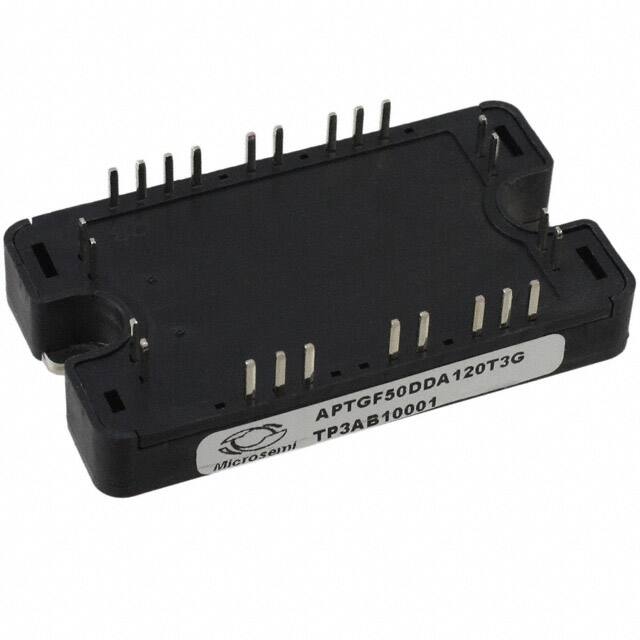

APTGF50DDA120T3GIGBT MODULE 1200V 70A 312W SP3 |
8,050 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGF50DSK120T3GIGBT MODULE 1200V 70A 312W SP3 |
17,790 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Dual Buck Chopper | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
APT65GP60JIGBT MOD 600V 130A 431W ISOTOP |
12,800 |
|
- |
POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 130 A | 431 W | 2.7V @ 15V, 65A | 1 mA | 7.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APT50GR120JD30IGBT MOD 1200V 84A 417W SOT227 |
6,628 |
|
- |
- | SOT-227-4 | Tube | Active | NPT | Single | 1200 V | 84 A | 417 W | 3.2V @ 15V, 50A | 1.1 mA | 5.55 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APTGT75A1202GIGBT MODULE 1200V 110A 357W SP2 |
6,742 |
|
- |
- | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 50 µA | 5.34 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP2 |
