IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT75LA60UFMODULES IGBT - SOT-227 IGBT |
16,276 |
|
- |
FRED Pt® | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single Chopper | 600 V | 81 A | 231 W | 2.26V @ 15V, 70A | 100 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
GA200SA60UIGBT MOD 600V 200A 500W SOT227B |
11,972 |
|
- |
- | SOT-227-4, miniBLOC | - | Obsolete | - | Single | 600 V | 200 A | 500 W | 1.9V @ 15V, 100A | 1 mA | 16.5 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
APT100GT60JRDQ4IGBT MOD 600V 148A 500W ISOTOP |
7,028 |
|
- |
Thunderbolt IGBT® | ISOTOP | Tube | Obsolete | NPT | Single | 600 V | 148 A | 500 W | 2.5V @ 15V, 100A | 50 µA | 5.15 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
F3L50R06W1E3B11BOMA1IGBT MODULE 600V 75A 175W |
11,226 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 50 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
DF200R12W1H3B27BOMA1IGBT MOD 1200V 30A 375W |
15,048 |
|
- |
- | Module | Tray | Active | - | 2 Independent | 1200 V | 30 A | 375 W | 1.3V @ 15V, 30A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
APTGT100A602GIGBT MODULE 600V 150A 340W SP2 |
5,562 |
|
- |
- | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 50 µA | 6.1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Through Hole | SP2 |
|
|
APTGF25A120T1GIGBT MODULE 1200V 40A 208W SP1 |
10,664 |
|
- |
- | SP1 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
MWI30-12E6KIGBT MODULE 1200V 29A 130W E1 |
16,636 |
|
- |
- | E1 | Box | Obsolete | - | Three Phase Inverter | 1200 V | 29 A | 130 W | 2.9V @ 15V, 20A | 1 mA | 1.18 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
APTGT30TL60T3GIGBT MODULE 600V 50A 90W SP3 |
15,192 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Three Level Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT20DDA60T3GIGBT MODULE 600V 32A 62W SP3 |
6,052 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Dual Boost Chopper | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT20DSK60T3GIGBT MODULE 600V 32A 62W SP3 |
12,682 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Dual Buck Chopper | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FMG2G50US60IGBT MODULE 600V 50A 250W 7PMGA |
9,256 |
|
- |
- | 7PM-GA | Bulk | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 3.46 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|

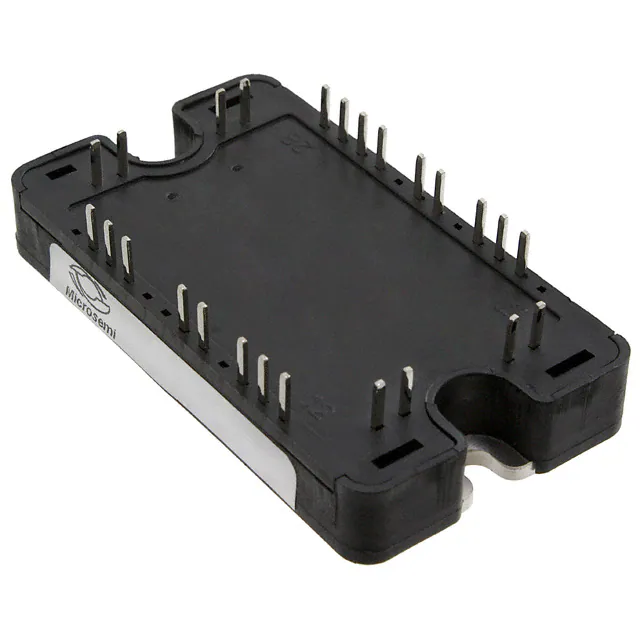

APTGF30H60T3GIGBT MODULE 600V 42A 140W SP3 |
4,236 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 42 A | 140 W | 2.45V @ 15V, 30A | 250 µA | 1.35 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
FP30R06W1E3PBPSA1LOW POWER EASY AG-EASY1B-311 |
5,412 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IXGN82N120B3H1IGBT MOD 1200V 145A 595W SOT227B |
10,356 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 1200 V | 145 A | 595 W | 3.2V @ 15V, 82A | 50 µA | 7.9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

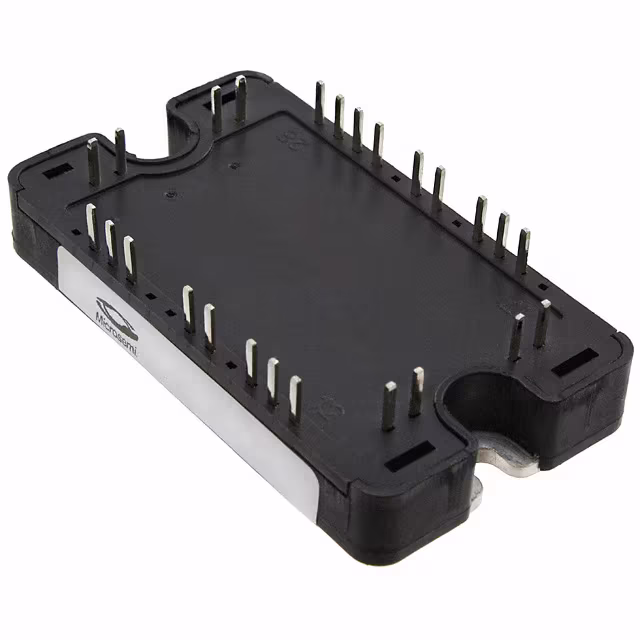

APTGF50VDA60T3GIGBT MODULE 600V 65A 250W SP3 |
15,540 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGT50A1202GIGBT MODULE 1200V 75A 277W SP2 |
10,638 |
|
- |
- | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 50 µA | 3.6 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP2 |
|
|
FMS6G10US60SIGBT MODULE 600V 10A 66W 25PMAA |
18,572 |
|
- |
- | 25PM-AA | Box | Obsolete | - | Three Phase Inverter | 600 V | 10 A | 66 W | 2.7V @ 15V, 10A | 250 µA | 710 pF @ 30 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
|
|
APTGT25A120T1GIGBT MODULE 1200V 40A 156W SP1 |
8,942 |
|
- |
- | SP1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
.JPG)
|
FP7G100US60IGBT MODULE 600V 100A 400W EPM7 |
17,000 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
