IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

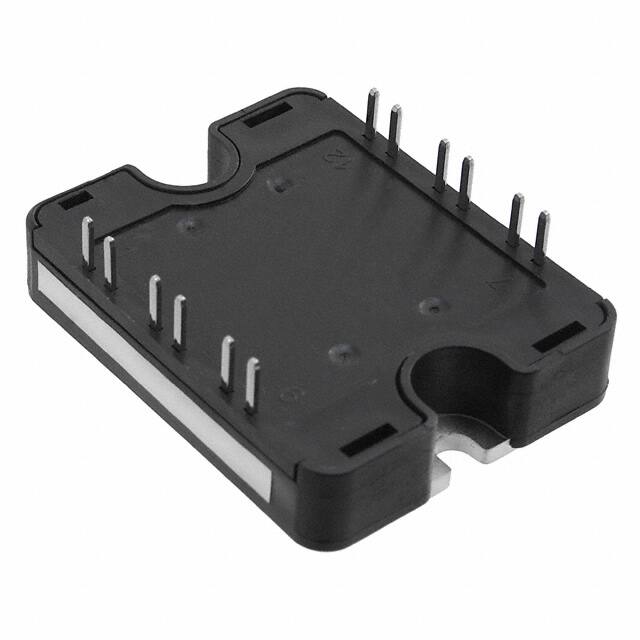

APTGT75DA60T1GIGBT MODULE 600V 100A 250W SP1 |
15,530 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
MDI145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
18,980 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MID145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
12,308 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MWI50-06A7TIGBT MODULE 600V 72A 225W E2 |
16,606 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 72 A | 225 W | 2.4V @ 15V, 50A | 600 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MIF100R12C1TF-BPGBT MODULES |
10,104 |
|
- |
- | Module | Tape & Reel (TR) | Active | Trench | Half Bridge Inverter | 1200 V | 100 A | 789 W | 2V @ 15V, 100A | 1 mA | 6450 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | C1 |
|
MG1275S-BA1MMIGBT MODULE 1200V 105A 630W S3 |
12,708 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 105 A | 630 W | 1.8V @ 15V, 75A (Typ) | 500 µA | 5.52 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
|
MKI75-06A7TIGBT MODULE 600V 90A 280W E2 |
13,228 |
|
- |
- | E2 | Tube | Obsolete | NPT | Full Bridge Inverter | 600 V | 90 A | 280 W | 2.6V @ 15V, 75A | 1.3 mA | 3.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MUBW30-12A6IGBT MODULE 1200V 31A 104W E1 |
8,012 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 31 A | 104 W | 2.6V @ 15V, 15A | 1 mA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
APTGT100A60TGIGBT MODULE 600V 150A 340W SP4 |
12,378 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
MIXA10WB1200TEDIGBT MODULE 1200V 17A 60W E2 |
17,856 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 17 A | 60 W | 2.1V @ 15V, 9A | 700 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
APT50GF120JRDIGBT NPT COMBI 1200V 50A ISOTOP |
16,144 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 75 A | 460 W | 3.4V @ 15V, 50A | 750 µA | 3.45 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
IRG5K100HF12AIGBT MOD 1200V 200A POWIR 34 |
7,152 |
|
- |
- | POWIR® 34 Module | Box | Obsolete | - | Half Bridge | 1200 V | 200 A | 620 W | 2.6V @ 15V, 100A | 1 mA | 12.9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 34 |
|
|
APTGF50DH60TGIGBT MODULE 600V 65A 250W SP4 |
15,330 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | NPT | Asymmetrical Bridge | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT75DH60TGIGBT MODULE 600V 100A 250W SP4 |
19,196 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Asymmetrical Bridge | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
FS75R12W2T4PBPSA1LOW POWER EASY AG-EASY2B-411 |
13,994 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FS75R12W2T4PB11BPSA1LOW POWER EASY |
8,378 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIXG240RF1200PTEDIGBT MODULE - BRAKE E2-PACK-PFP |
11,912 |
|
- |
- | E2 | Box | Active | PT | Single Chopper | 1200 V | 335 A | 1250 W | 2V @ 15V, 200A | 200 µA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E2 |
|
|
DDB6U134N16RRB38BPSA1LOW POWER ECONO |
14,422 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 70 A | 500 W | 2.75V @ 15V, 70A | 500 µA | 5.1 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
APTGT200DA60TGIGBT MODULE 600V 290A 625W SP4 |
16,378 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Single | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
PRHMB75W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
18,628 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 1200 V | 75 A | 290 W | 2V @ 15V, 75A | 1 mA | 8000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
