IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT150GT120JRIGBT MOD 1200V 170A 830W ISOTOP |
15,390 |
|
- |
Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 1200 V | 170 A | 830 W | 3.7V @ 15V, 150A | 150 µA | 9.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
MIXA41W1200EDNPT IGBT MODULE |
18,038 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT50H120TGIGBT MODULE 1200V 75A 277W SP4 |
8,028 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
NXH40T120L3Q1PTGPIM Q1 3 CHANNEL T-TYPE NPC 40A |
14,024 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 42 A | 146 W | 2.2V @ 15V, 40A | 400 µA | 7.753 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 44-PIM (71x37.4) |
|
VS-ETF150Y65NIGBT MOD 650V 201A 600W |
10,034 |
|
- |
FRED Pt® | Module | Box | Obsolete | NPT | Half Bridge Inverter | 650 V | 201 A | 600 W | 2.17V @ 15V, 150A | - | - | Standard | Yes | 175°C (TJ) | - | Module |
|
A2C25S12M3IGBT MOD 1200V 25A 197W ACEPACK2 |
7,754 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
|
APTGT75A120TGIGBT MODULE 1200V 100A 350W SP4 |
4,100 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT100A60T1GIGBT MODULE 600V 150A 340W SP1 |
18,400 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
FS75R12N2T4B85BPSA1LOW POWER ECONO |
11,698 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRG5U50HH12EIGBT MOD 1200V 85A POWIR ECO 2 |
15,292 |
|
- |
- | POWIR ECO 2™ Module | Box | Obsolete | - | Full Bridge Inverter | 1200 V | 85 A | 390 W | 3.5V @ 15V, 50A | 1 mA | 6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR ECO 2™ |
|
|
FP25R12N2T7BPSA1LOW POWER ECONO |
5,372 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP75R07N2E4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
8,978 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | - | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
CM75DU-24FIGBT MOD 1200V 75A 450W |
8,780 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 75 A | 450 W | 2.4V @ 15V, 75A | 1 mA | 29 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT100DA120T1GIGBT MODULE 1200V 140A 480W SP1 |
12,970 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
MG06100S-BN4MMIGBT MODULE 600V 100A 330W S3 |
18,506 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 125 A | 330 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|

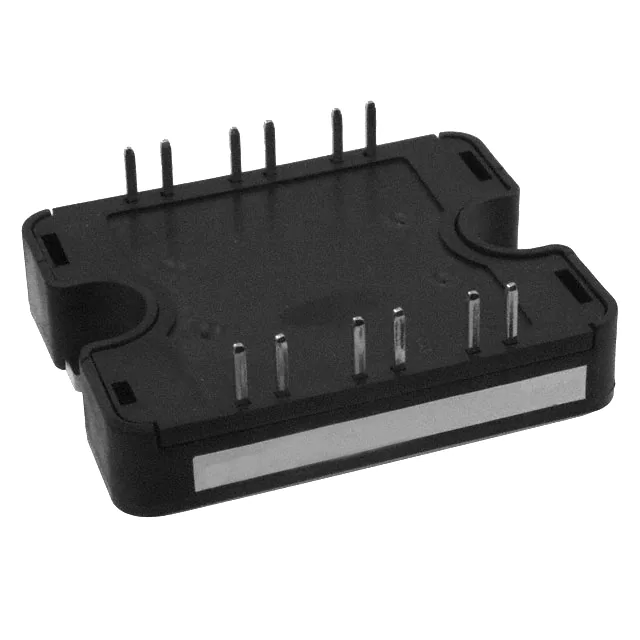

APTGT50SK170T1GIGBT MODULE 1700V 75A 312W SP1 |
17,624 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
MUBW10-12A7IGBT MODULE 1200V 20A 105W E2 |
12,604 |
|
- |
- | E2 | Bulk | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 20 A | 105 W | 2.7V @ 15V, 10A | 600 µA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MWI15-12A7IGBT MODULE 1200V 30A 140W E2 |
6,144 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 30 A | 140 W | 2.6V @ 15V, 15A | 900 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MWI50-06A7IGBT MODULE 600V 72A 225W E2 |
4,912 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 72 A | 225 W | 2.4V @ 15V, 50A | 600 µA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MG12100S-BN2MMIGBT MODULE 1200V 140A 450W S3 |
18,130 |
|
- |
