IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM600HU-12HIGBT MOD 600V 600A 1560W |
18,696 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 600 A | 1560 W | 3V @ 15V, 600A | 1 mA | 52.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM75DU-12FIGBT MODULE 600V 75A 290W |
11,902 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Half Bridge | 600 V | 75 A | 290 W | 2.2V @ 15V, 75A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75DU-12HIGBT MODULE 600V 75A 310W |
15,416 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 3V @ 15V, 75A | 1 mA | 6.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75DY-12HIGBT MODULE 600V 75A 310W |
5,382 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75DY-24HIGBT MOD 1200V 75A 600W |
8,658 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 75 A | 600 W | 3.4V @ 15V, 75A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

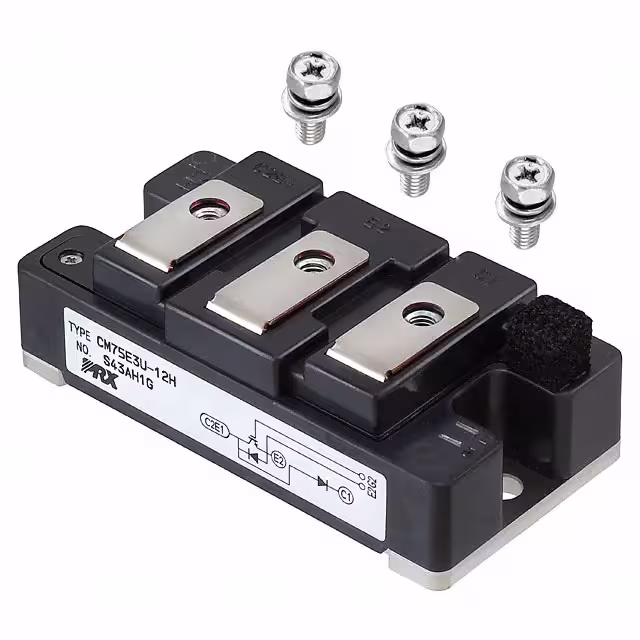

CM75E3U-12HIGBT MODULE 600V 75A 310W |
7,148 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 75 A | 310 W | 3V @ 15V, 75A | 1 mA | 6.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75MX-12AIGBT MODULE 600V 75A 280W |
5,766 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 75 A | 280 W | 2.1V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TF-12HIGBT MODULE 600V 75A 310W |
19,386 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM800HA-24HIGBT MOD 1200V 800A 4800W |
11,632 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 800 A | 4800 W | 3.6V @ 15V, 800A | 5 mA | 180 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG400J2YS61AIGBT MOD 600V 400A 2160W |
12,002 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 2160 W | 2.2V @ 15V, 400A | 1 mA | 85 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG600J2YS61AIGBT MOD 600V 600A 2770W |
5,114 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 2770 W | 2.5V @ 15V, 600A | 1 mA | 125 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
MG600Q2YS60AIGBT MOD 1200V 600A 4300W |
17,570 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 4300 W | 3.1V @ 15V, 600A | 1 mA | 41 nF @ 10 V | Standard | Yes | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|

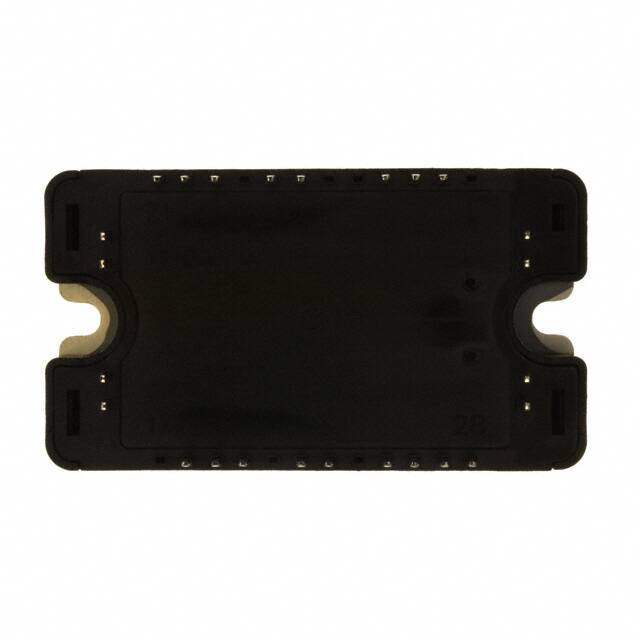

APTCV90TL12T3GIGBT MODULE 1200V 80A 280W SP3 |
4,508 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Three Level Inverter - IGBT, FET | 1200 V | 80 A | 280 W | 2.2V @ 15V, 50A | 1 mA | 2.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
IXGN100N160AIGBT MODULE 1600V 200A SOT227B |
13,832 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1600 V | 200 A | - | - | - | - | Standard | No | - | Chassis Mount | SOT-227B |
|
|
IXGN200N60IGBT MOD 600V 200A 600W SOT227B |
19,632 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 200 A | 600 W | 2.5V @ 15V, 100A | 200 µA | 9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXGN200N60AIGBT MOD 600V 200A 600W SOT227B |
4,666 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 200 A | 600 W | 2.7V @ 15V, 100A | 200 µA | 9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXGN40N60CD1IGBT MODULE 600V SOT227B |
8,440 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | - | - | - | - | - | Standard | No | - | Chassis Mount | SOT-227B |
|
IXSN35N100U1IGBT MOD 1000V 38A 205W SOT227B |
8,202 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 1000 V | 38 A | 205 W | 3.5V @ 15V, 25A | 750 µA | 4.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXSN35N120AU1IGBT MOD 1200V 70A 300W SOT227B |
11,688 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 1200 V | 70 A | 300 W | 4V @ 15V, 35A | 750 µA | 3.9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXSN50N60BD2IGBT MOD 600V 75A 250W SOT227B |
13,834 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 75 A | 250 W | 2.5V @ 15V, 50A | 350 µA | 3.85 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
