IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXSN55N120AU1IGBT MOD 1200V 110A 500W SOT227B |
14,104 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 1200 V | 110 A | 500 W | 4V @ 15V, 55A | 1 mA | 8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXSN62N60U1IGBT MOD 600V 90A 250W SOT227B |
9,026 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 90 A | 250 W | 2.5V @ 15V, 50A | 750 µA | 4.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

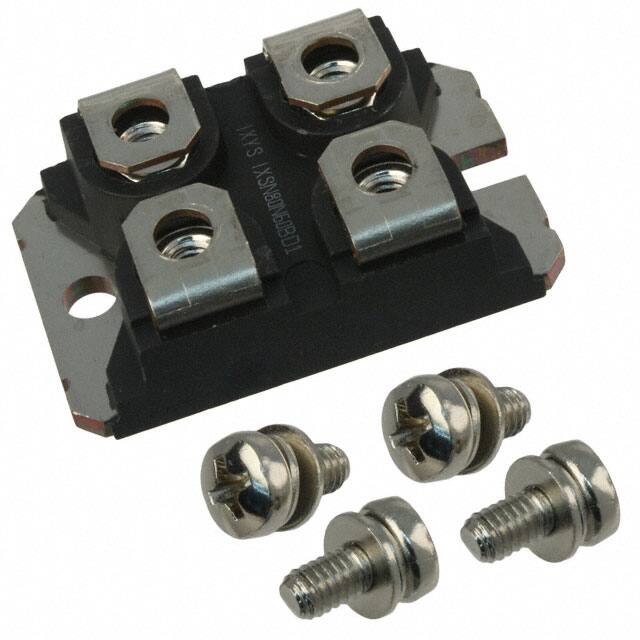

IXSN80N60AU1IGBT MOD 600V 160A 500W SOT227B |
14,816 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 160 A | 500 W | 3V @ 15V, 80A | 1 mA | 8.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
APTGFQ25H120T2GIGBT MODULE 1200V 40A 227W SP2 |
11,000 |
|
- |
- | SP2 | Bulk | Active | NPT and Fieldstop | Full Bridge | 1200 V | 40 A | 227 W | 2.1V @ 15V, 25A | 250 µA | 2.02 nF @ 25 V | Standard | Yes | - | Through Hole | SP2 |
|
CM1400E3U-24NFIGBT MOD 1200V 1400A 3900W |
6,558 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM150DX-24SIGBT MOD 1200V 150A 1150W |
11,788 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 1150 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM400DY-34AIGBT MOD 1700V 400A 3780W |
19,270 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 400 A | 3780 W | 2.8V @ 15V, 400A | 1 mA | 98.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM600DU-12NFHIGBT MOD 600V 600A 1130W |
8,984 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.7V @ 15V, 600A | 1 mA | 166 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|

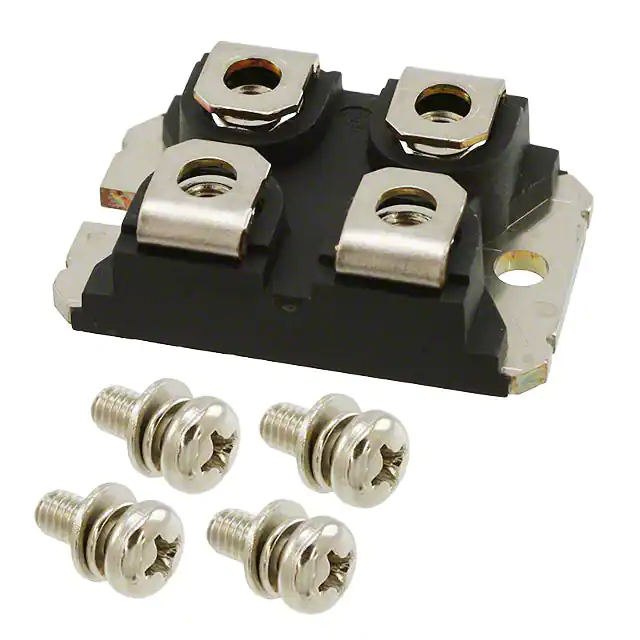

VS-GA250SA60SIGBT MOD 600V 400A 961W SOT227 |
15,114 |
|
- |
- | SOT-227-4 | Tube | Obsolete | - | Single | 600 V | 400 A | 961 W | 1.66V @ 15V, 200A | 1 mA | 16.25 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
VS-GB90SA120UIGBT MOD 1200V 149A 862W SOT227 |
12,620 |
|
- |
- | SOT-227-4 | Tube | Obsolete | NPT | Single | 1200 V | 149 A | 862 W | 3.9V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
VS-GB90DA60UIGBT MOD 600V 147A 625W SOT227 |
13,762 |
|
- |
- | SOT-227-4 | Tube | Obsolete | NPT | Single | 600 V | 147 A | 625 W | 2.8V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
VS-CPV362M4KPBFIGBT MODULE 600V 3PHASE IMS-2 |
10,944 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV362M4UPBFIGBT MODULE 600V 7.2A 23W IMS-2 |
9,438 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 7.2 A | 23 W | 2.2V @ 15V, 3.9A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV363M4FPBFIGBT MODULE 600V 3PHASE IMS-2 |
10,358 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV363M4KPBFIGBT MODULE 600V 11A 36W IMS-2 |
19,476 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 11 A | 36 W | 2.1V @ 15V, 6A | 250 µA | 740 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4FPBFIGBT MODULE 600V 27A 63W IMS-2 |
14,304 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 27 A | 63 W | 1.5V @ 15V, 15A | 250 µA | 2.2 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4UPBFIGBT MODULE 600V 20A 63W IMS-2 |
9,100 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 20 A | 63 W | 2.1V @ 15V, 10A | 250 µA | 2.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
MIXA101W1200EHIGBT MODULE 1200V 155A 500W E3 |
14,584 |
|
- |
- | E3 | Box | Active | PT | Three Phase Inverter | 1200 V | 155 A | 500 W | 2.1V @ 15V, 100A | 300 µA | - | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MIXA10W1200TMLIGBT MODULE 1200V 17A 65W E1 |
9,624 |
|
- |
- | E1 | Box | Active | PT | Three Phase Inverter | 1200 V | 17 A | 65 W | 2.1V @ 15V, 9A | 150 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
MIXA10WB1200TMLIGBT MODULE 1200V 17A 63W E1 |
16,364 |
|
- |
- | E1 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 17 A | 63 W | 2.1V @ 15V, 9A | 100 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
