IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM15TF-24HIGBT MOD 1200V 15A 150W |
13,716 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 15 A | 150 W | 3.4V @ 15V, 15A | 1 mA | 3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200DU-24FIGBT MOD 1200V 200A 890W |
17,452 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 200 A | 890 W | 2.4V @ 15V, 200A | 1 mA | 78 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200DU-24HIGBT MOD 1200V 200A 1130W |
10,116 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 1130 W | 3.7V @ 15V, 200A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200DY-12HIGBT MOD 600V 200A 780W |
10,226 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 200 A | 780 W | 2.8V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|

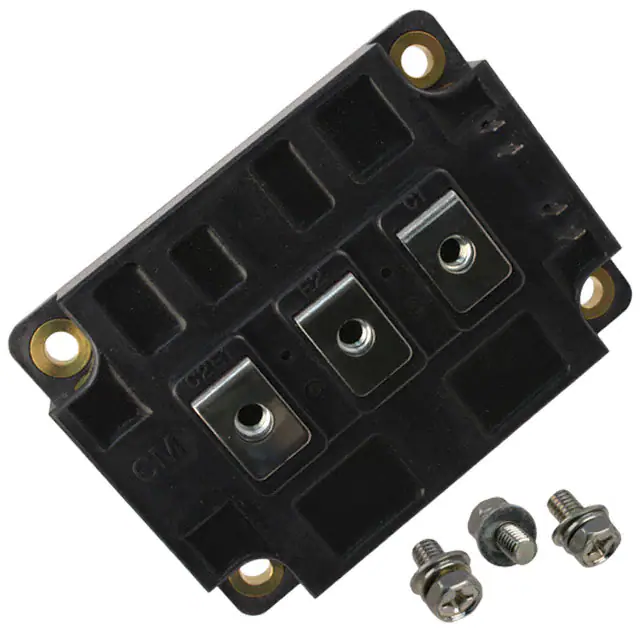

CM200DY-24HIGBT MOD 1200V 200A 1500W |
16,784 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 1500 W | 3.4V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200DY-28HIGBT MOD 1400V 200A 1500W |
17,238 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 200 A | 1500 W | 4.2V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200E3U-12HIGBT MOD 600V 200A 650W |
15,840 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 200 A | 650 W | 3V @ 15V, 200A | 1 mA | 17.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200HA-24HIGBT MOD 1200V 200A 1500W |
7,486 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 200 A | 1500 W | 3.4V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200RX-12AIGBT MOD 600V 200A 735W |
17,914 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 200 A | 735 W | 2.1V @ 15V, 200A | 1 mA | 27 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200TU-12FIGBT MOD 600V 200A 590W |
15,116 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Three Phase Inverter | 600 V | 200 A | 590 W | 2.2V @ 15V, 200A | 1 mA | 54 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-24FIGBT MOD 1200V 300A 890W |
17,834 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 300 A | 890 W | 2.4V @ 15V, 300A | 1 mA | 120 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-24HIGBT MOD 1200V 300A 1130W |
7,826 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1130 W | 3.7V @ 15V, 300A | 1 mA | 45 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DY-12HIGBT MOD 600V 300A 1100W |
13,626 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 1100 W | 2.8V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DY-24HIGBT MOD 1200V 300A 2100W |
8,658 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 2100 W | 3.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DY-28HIGBT MOD 1400V 300A 2100W |
14,408 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 300 A | 2100 W | 4.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300E3U-12HIGBT MOD 600V 300A 890W |
10,066 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 300 A | 890 W | 3V @ 15V, 300A | 1 mA | 26.4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300HA-12HIGBT MOD 600V 300A 1100W |
19,108 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 300 A | 1100 W | 2.8V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300HA-24HIGBT MOD 1200V 300A 2100W |
13,348 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 300 A | 2100 W | 3.4V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300HA-28HIGBT MOD 1400V 300A 2100W |
5,410 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1400 V | 300 A | 2100 W | 4.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM30TF-12HIGBT MODULE 600V 30A 150W |
15,014 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 30 A | 150 W | 2.8V @ 15V, 30A | 1 mA | 3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
