IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT75A170D1GIGBT MODULE 1700V 120A 520W D1 |
5,464 |
|
- |
- | D1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGT75SK170D1GIGBT MODULE 1700V 120A 520W D1 |
10,086 |
|
- |
- | D1 | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|

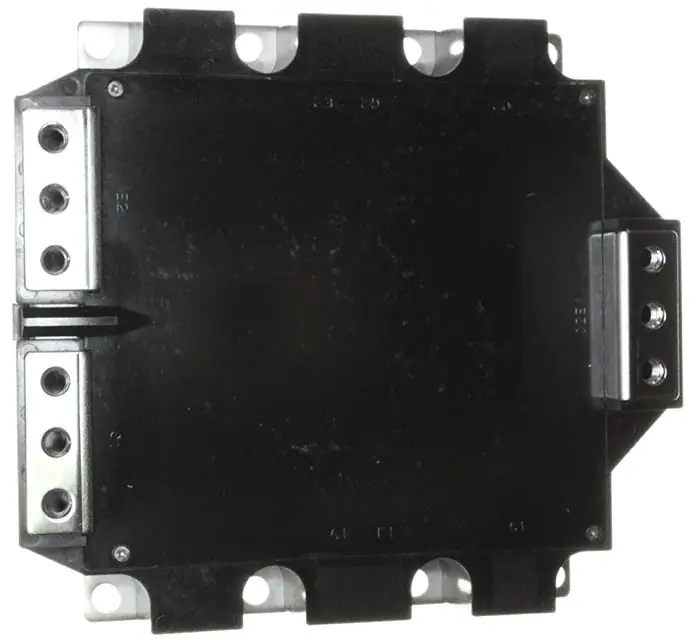

CM1000DU-34NFIGBT MOD 1700V 1000A 3900W |
14,038 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

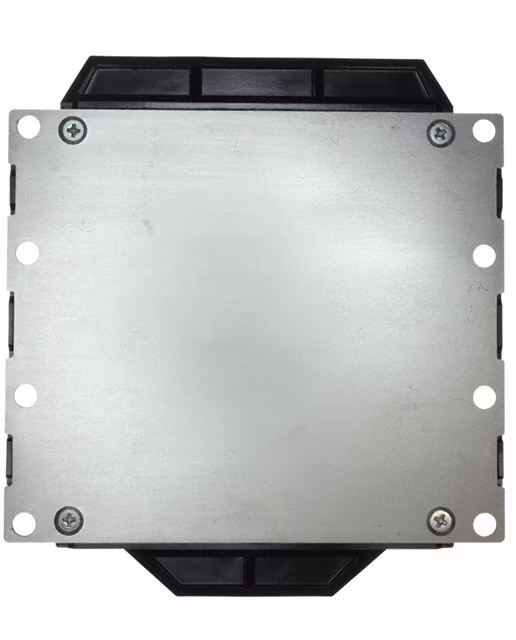

CM1400DU-24NFIGBT MOD 1200V 1400A 3900W |
19,934 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM450DX-24AIGBT MOD 1200V 450A 2840W |
5,560 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 450 A | 2840 W | 2.6V @ 15V, 450A | 1 mA | 68 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

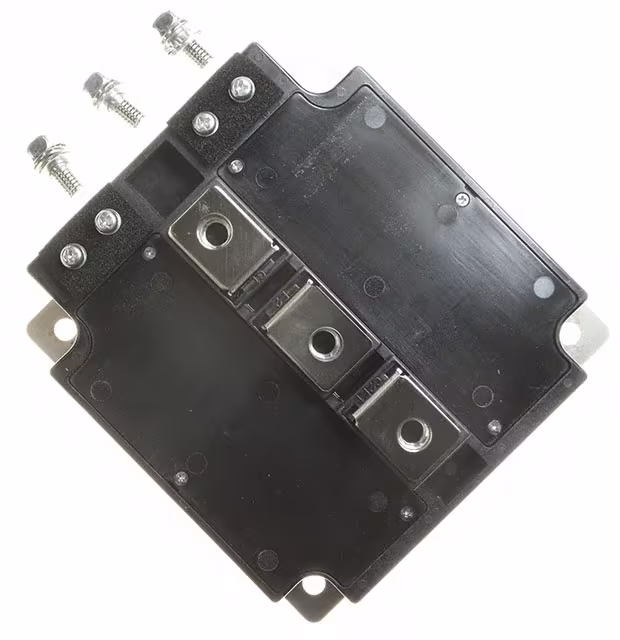

CM600DU-24NFIGBT MOD 1200V 600A 2080W |
12,000 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 2080 W | 2.65V @ 15V, 600A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

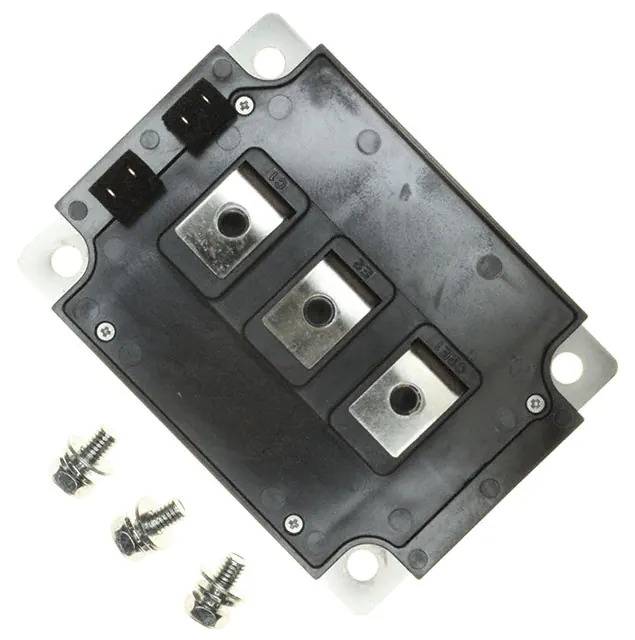

CM600DY-12NFIGBT MOD 600V 600A 1130W |
7,320 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.2V @ 15V, 600A | 1 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

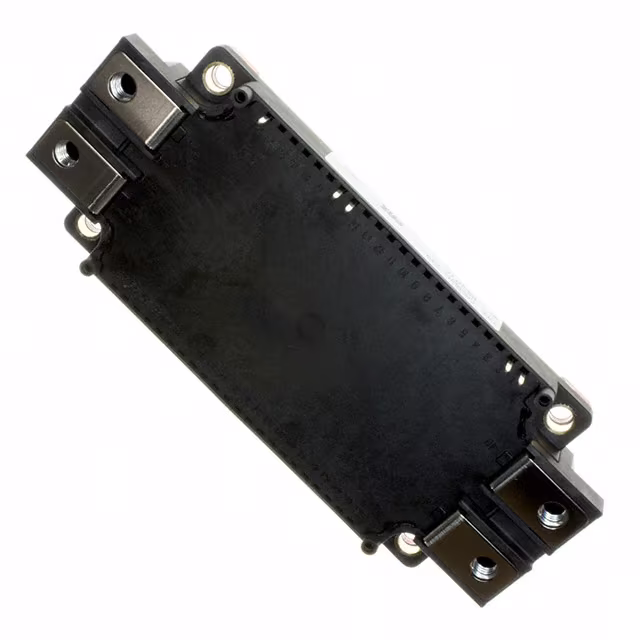

CM600HX-24AIGBT MOD 1200V 600A 3785W |
12,598 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 600 A | 3785 W | 2.6V @ 15V, 600A | 1 mA | 100 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IXGN200N60A2IGBT MOD 600V 200A 700W SOT227B |
5,030 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 200 A | 700 W | 1.35V @ 15V, 100A | 50 µA | 9.9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

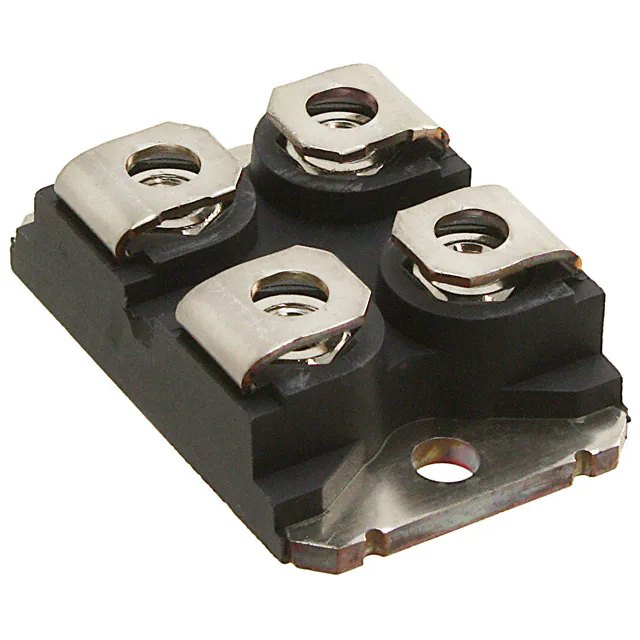

IXGN200N60BIGBT MOD 600V 200A 600W SOT227B |
15,358 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 200 A | 600 W | 2.1V @ 15V, 120A | 200 µA | 11 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXSN52N60AU1IGBT MOD 600V 80A 250W SOT227B |
9,702 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 80 A | 250 W | 3V @ 15V, 40A | 750 µA | 4.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
MUBW40-12T7IGBT MODULE 1200V 62A 220W E2 |
14,432 |
|
- |
- | E2 | Box | Active | Trench | Three Phase Inverter with Brake | 1200 V | 62 A | 220 W | 2.6V @ 15V, 40A | 1.75 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MUBW45-12T6KIGBT MODULE 1200V 43A 160W E1 |
7,062 |
|
- |
- | E1 | Box | Active | Trench | Three Phase Inverter with Brake | 1200 V | 43 A | 160 W | 3.1V @ 15V, 45A | 1.25 mA | 1.81 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
MUBW50-12T8IGBT MODULE 1200V 80A 270W E3 |
4,014 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter with Brake | 1200 V | 80 A | 270 W | 2.15V @ 15V, 50A | 2.7 mA | 3.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI100-12T8TIGBT MODULE 1200V 145A 480W E3 |
10,884 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter | 1200 V | 145 A | 480 W | 2.1V @ 15V, 100A | 4 mA | 7.21 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI225-17E9IGBT MODULE 1700V 335A 1400W E+ |
6,376 |
|
- |
- | E+ | Box | Active | NPT | Three Phase | 1700 V | 335 A | 1400 W | 2.9V @ 15V, 225A | 600 µA | 22 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI300-12E9IGBT MODULE 1200V 530A 2100W E+ |
11,234 |
|
- |
- | E+ | Box | Obsolete | NPT | Three Phase | 1200 V | 530 A | 2100 W | 2.4V @ 15V, 300A | 1 mA | 22 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI300-17E9IGBT MODULE 1700V 500A 2200W E+ |
17,044 |
|
- |
- | E+ | Box | Active | NPT | Three Phase | 1700 V | 500 A | 2200 W | 2.7V @ 15V, 300A | 1 mA | 33 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI450-12E9IGBT MODULE 1200V 640A 2200W E+ |
15,520 |
|
- |
- | E+ | Box | Obsolete | NPT | Three Phase | 1200 V | 640 A | 2200 W | 2.4V @ 15V, 450A | 1 mA | 33 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI60-06G6KIGBT MODULE 600V 60A 180W E1 |
6,464 |
|
- |
- | E1 | Box | Active | - | Three Phase Inverter | 600 V | 60 A | 180 W | 2.8V @ 15V, 30A | 200 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
