IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWI75-12E8IGBT MODULE 1200V 130A 500W E3 |
8,528 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 130 A | 500 W | 2.5V @ 15V, 75A | 1.1 mA | 5.7 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
VDI100-06P1IGBT MOD 600V 93A 294W ECO-PAC2 |
5,320 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 93 A | 294 W | 2.8V @ 15V, 100A | 1.4 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VDI125-12P1IGBT MOD 1200V 138A ECO-PAC2 |
13,022 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 138 A | 568 W | 3.4V @ 15V, 125A | 5 mA | 5.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VDI130-06P1IGBT MOD 600V 121A 379W ECO-PAC2 |
13,146 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 121 A | 379 W | 2.9V @ 15V, 130A | 1.2 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VDI75-12P1IGBT MOD 1200V 92A 379W ECO-PAC2 |
6,668 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 92 A | 379 W | 3.2V @ 15V, 75A | 3.7 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID100-06P1IGBT MOD 600V 93A 294W ECO-PAC2 |
5,902 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 93 A | 294 W | 2.8V @ 15V, 100A | 1.4 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID125-12P1IGBT MOD 1200V 138A ECO-PAC2 |
5,512 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 138 A | 568 W | 3.4V @ 15V, 125A | 5 mA | 5.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID25-06P1IGBT MOD 600V 24.5A 82W ECO-PAC2 |
5,848 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 24.5 A | 82 W | 2.9V @ 15V, 25A | 600 µA | 8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID25-12P1IGBT MOD 1200V 30A 130W ECO-PAC2 |
8,706 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 30 A | 130 W | 3.3V @ 15V, 25A | 900 µA | 1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID75-12P1IGBT MOD 1200V 92A 379W ECO-PAC2 |
5,992 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 92 A | 379 W | 3.2V @ 15V, 75A | 3.7 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VII130-06P1IGBT MOD 600V 121A 379W ECO-PAC2 |
15,840 |
|
- |
- | ECO-PAC2 | Box | Active | NPT | Half Bridge | 600 V | 121 A | 379 W | 2.9V @ 15V, 130A | 1.2 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VII25-12P1IGBT MOD 1200V 30A 130W ECO-PAC2 |
9,220 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Half Bridge | 1200 V | 30 A | 130 W | 3.3V @ 15V, 25A | 900 µA | 1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VII50-12P1IGBT MOD 1200V 49A 208W ECO-PAC2 |
10,588 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Half Bridge | 1200 V | 49 A | 208 W | 3.7V @ 15V, 50A | 1.1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|

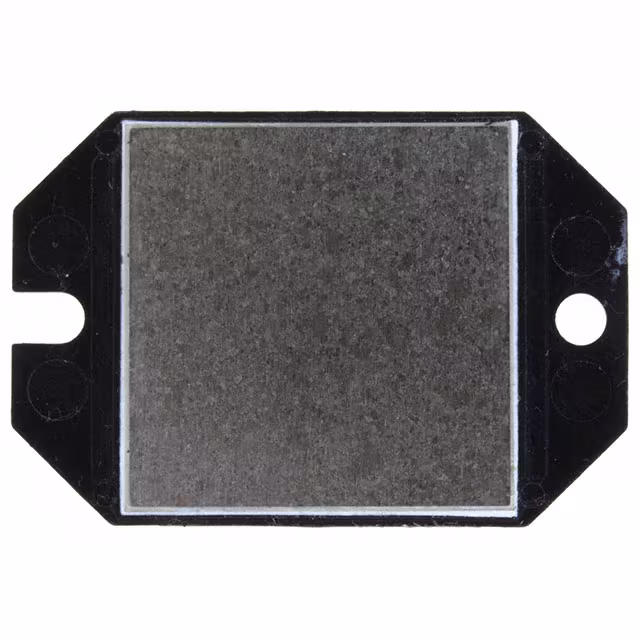

VKI75-06P1IGBT MOD 600V 69A 208W ECO-PAC2 |
5,282 |
|
- |
- | ECO-PAC2 | Box | Active | NPT | Full Bridge Inverter | 600 V | 69 A | 208 W | 2.8V @ 15V, 75A | 800 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VWI35-06P1IGBT MOD 600V 31A 100W ECO-PAC2 |
6,646 |
|
- |
- | ECO-PAC2 | Box | Active | NPT | Three Phase Inverter | 600 V | 31 A | 100 W | 2.4V @ 15V, 20A | 600 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
APTGF165A60D1GIGBT MODULE 600V 230A 781W D1 |
13,382 |
|
- |
- | D1 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 230 A | 781 W | 2.45V @ 15V, 200A | 250 µA | 9 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGF90A60TGIGBT MODULE 600V 110A 416W SP4 |
10,970 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT100A120D1GIGBT MODULE 1200V 150A 520W D1 |
10,710 |
|
- |
- | D1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 150 A | 520 W | 2.1V @ 15V, 100A | 3 mA | 7 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGT150H170GIGBT MODULE 1700V 250A 890W SP6 |
16,642 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT225DA170GIGBT MODULE 1700V 340A 1250W SP6 |
15,078 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 340 A | 1250 W | 2.4V @ 15V, 225A | 500 µA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
