IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWI75-12T8TIGBT MODULE 1200V 110A 360W E3 |
13,760 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter | 1200 V | 110 A | 360 W | 2.1V @ 15V, 75A | 3 mA | 5.35 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
CM100BU-12HIGBT MOD 600V 100A 400W |
13,408 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Full Bridge Inverter | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DU-24FIGBT MOD 1200V 100A 500W |
5,764 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 100 A | 500 W | 2.4V @ 15V, 100A | 1 mA | 39 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DU-34KAIGBT MOD 1700V 100A 890W |
16,596 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 100 A | 890 W | 4V @ 15V, 100A | 1 mA | 14 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DY-12HIGBT MOD 600V 100A 400W |
13,692 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DY-24HIGBT MOD 1200V 100A 780W |
14,674 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 100 A | 780 W | 3.4V @ 15V, 100A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DY-28HIGBT MOD 1400V 100A 780W |
12,296 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 100 A | 780 W | 4.2V @ 15V, 100A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DY-34AIGBT MOD 1700V 100A 960W |
13,454 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 100 A | 960 W | 2.8V @ 15V, 100A | 1 mA | 24.7 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100MX-12AIGBT MOD 600V 100A 400W |
10,386 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 100 A | 400 W | 2.1V @ 15V, 100A | 1 mA | 11.3 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TF-12HIGBT MOD 600V 100A 400W |
7,568 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TU-12FIGBT MOD 600V 100A 350W |
18,688 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 100 A | 350 W | 2.2V @ 15V, 100A | 1 mA | 27 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM1200HA-24JIGBT MOD 1200V 1200A 5800W |
18,730 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 1200 A | 5800 W | 3.1V @ 15V, 1200A | 6 mA | 200 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DU-24HIGBT MOD 1200V 150A 890W |
17,590 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 890 W | 3.7V @ 15V, 150A | 1 mA | 22 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

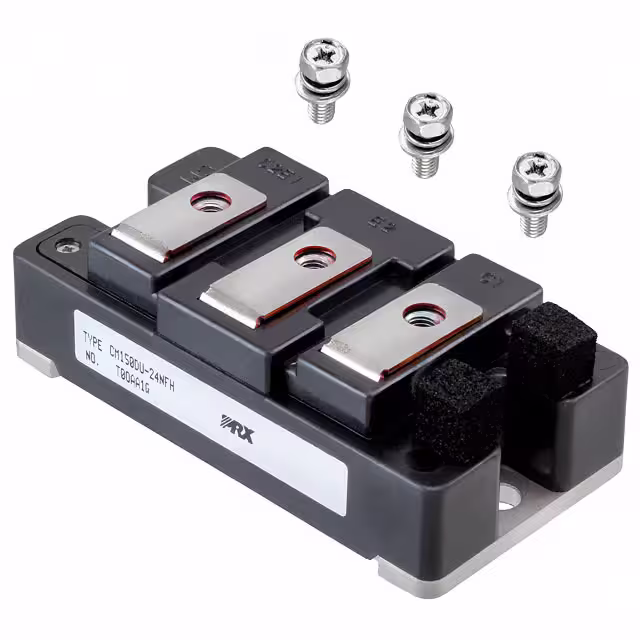

CM150DU-24NFHIGBT MOD 1200V 150A 650W |
11,760 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 650 W | 6.5V @ 15V, 150A | 1 mA | 24 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DU-34KAIGBT MOD 1700V 150A 1100W |
18,032 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 150 A | 1100 W | 4V @ 15V, 150A | 1 mA | 21 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DY-12HIGBT MOD 600V 150A 600W |
18,878 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 150 A | 600 W | 2.8V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM150DY-24HIGBT MOD 1200V 150A 1100W |
4,298 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 1100 W | 3.4V @ 15V, 150A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DY-28HIGBT MOD 1400V 150A 1100W |
8,856 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 150 A | 1100 W | 4.2V @ 15V, 150A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150E3U-24HIGBT MOD 1200V 150A 890W |
11,388 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 150 A | 890 W | 3.7V @ 15V, 150A | 1 mA | 22 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM15TF-12HIGBT MODULE 600V 15A 100W |
10,376 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 15 A | 100 W | 2.8V @ 15V, 15A | 1 mA | 1.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
