IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIXA151W1200EHIGBT MODULE 1200V 220A 695W |
16,954 |
|
- |
- | - | Box | Active | PT | Three Phase Inverter | 1200 V | 220 A | 695 W | 2.1V @ 15V, 150A | 500 µA | - | Standard | No | -40°C ~ 125°C (TJ) | - | - |
|
|
MIXA20WB1200TMLIGBT MOD 1200V 28A MINIPACK2 |
15,674 |
|
- |
- | MiniPack2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 28 A | 100 W | 2.1V @ 15V, 16A | 100 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | MiniPack2 |
|
CM100TX-24S1IGBT MOD 1200V 100A 625W |
7,512 |
|
- |
- | Module | Tray | Active | - | Three Level Inverter | 1200 V | 100 A | 625 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
VS-CPV362M4FPBFIGBT MODULE 600V 8.8A 23W IMS-2 |
18,542 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 8.8 A | 23 W | 1.7V @ 15V, 4.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-EMG050J60NIGBT MOD 600V 88A 338W EMIPAK2 |
18,174 |
|
- |
- | EMIPAK2 | Bulk | Obsolete | - | Half Bridge | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK2 |
|

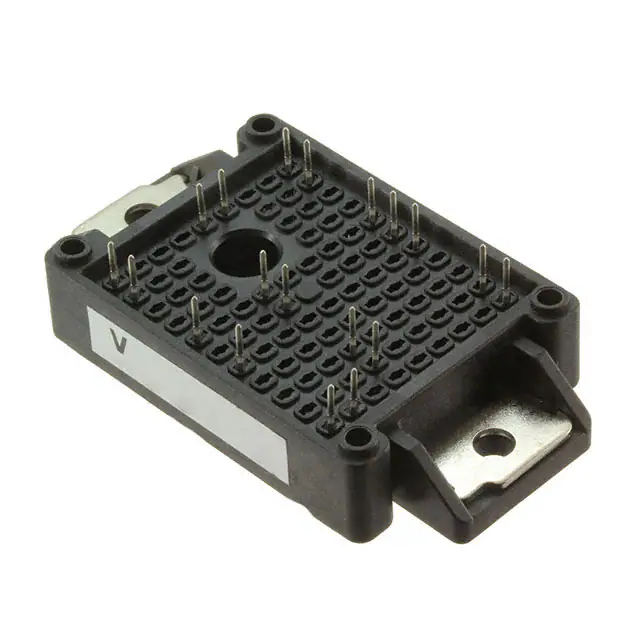

VS-ENQ030L120SIGBT MOD 1200V 61A EMIPAK-1B |
15,246 |
|
- |
- | EMIPAK-1B | Bulk | Active | Trench | Three Level Inverter | 1200 V | 61 A | 216 W | 2.52V @ 15V, 30A | 230 µA | 3.34 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-1B |
|
VS-ETL015Y120HIGBT MOD 1200V 22A 89W EMIPAK-2B |
17,710 |
|
- |
- | EMIPAK-2B | Bulk | Active | Trench | - | 1200 V | 22 A | 89 W | 3.03V @ 15V, 15A | 75 µA | 1.07 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-2B |
|
VS-GA100NA60UPIGBT MOD 600V 100A 250W SOT227 |
6,808 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | - | Single | 600 V | 100 A | 250 W | 2.1V @ 15V, 50A | 250 µA | 7.4 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GA100TS120UPBFIGBT MOD 1200V 182A INT-A-PAK |
8,912 |
|
- |
- | INT-A-Pak | Bulk | Obsolete | - | Half Bridge | 1200 V | 182 A | 520 W | 3V @ 15V, 100A | 1 mA | 18.67 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GA200HS60S1PBFIGBT MOD 600V 480A INT-A-PAK |
4,140 |
|
- |
- | INT-A-Pak | Bulk | Obsolete | - | Half Bridge | 600 V | 480 A | 830 W | 1.21V @ 15V, 200A | 1 mA | 32.5 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GA200SA60UPIGBT MOD 600V 200A 500W SOT227 |
5,960 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | - | Single | 600 V | 200 A | 500 W | 1.9V @ 15V, 100A | 1 mA | 16.5 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GA200TH60SIGBT MOD 600V 260A INT-A-PAK |
13,380 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 600 V | 260 A | 1042 W | 1.9V @ 15V, 200A (Typ) | 5 µA | 13.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GA300TD60SIGBT MOD 600V 530A INT-A-PAK |
13,026 |
|
- |
- | Dual INT-A-PAK (3 + 8) | Bulk | Obsolete | - | Half Bridge | 600 V | 530 A | 1136 W | 1.45V @ 15V, 300A | 750 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
VS-GA400TD60SIGBT MOD 600V 750A INT-A-PAK |
4,986 |
|
- |
- | Dual INT-A-PAK (3 + 8) | Bulk | Obsolete | - | Half Bridge | 600 V | 750 A | 1563 W | 1.52V @ 15V, 400A | 1 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
VS-GB05XP120KTPBFIGBT MODULE 1200V 0 76W MTP |
13,854 |
|
- |
- | 12-MTP Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 12 A | 76 W | - | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-GB100LH120NIGBT MOD 1200V 200A INT-A-PAK |
18,312 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Single | 1200 V | 200 A | 833 W | 1.77V @ 15V, 100A (Typ) | 1 mA | 8.96 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB100LP120NIGBT MOD 1200V 200A INT-A-PAK |
13,998 |
|
- |
- | INT-A-Pak | Bulk | Obsolete | - | Single | 1200 V | 200 A | 658 W | 1.8V @ 15V, 100A (Typ) | 1 mA | 7.43 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB100NH120NIGBT MOD 1200V 200A INT-A-PAK |
11,052 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Single | 1200 V | 200 A | 833 W | 2.35V @ 15V, 100A | 5 mA | 8.58 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB100TH120NIGBT MOD 1200V 200A INT-A-PAK |
9,272 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 833 W | 2.35V @ 15V, 100A | 5 mA | 8.58 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB100TH120UIGBT MOD 1200V 200A INT-A-PAK |
9,206 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 200 A | 1136 W | 3.6V @ 15V, 100A | 5 mA | 8.45 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
