SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
xxx-xxIO1.jpg)
|
MCC312-18IO1MOD THYRISTOR DUAL 1800V Y1-CU |
3,332 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 320 A | 520 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
TD250N16KOFHPSA1SCR MODULE 1800V 410A MODULE |
6,874 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD215N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB50AT |
4,614 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 215 A | 410 A | 2 V | 200 mA | 7000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD224-20IO1MOD THYRISTOR/DIODE 2000V Y1-CU |
7,606 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2 kV | 240 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT250-16PBFMOD THY/THY 1600V 250A MAGNA-PAK |
2,736 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
TT215N22KOFHPSA1SCR MODULE 2.2KV 410A MODULE |
2,964 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 215 A | - | 2 V | 200 mA | 7000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT330N16AOFHPSA1SCR MODULE 1.6KV 520A MODULE |
6,152 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | 12500A @ 50Hz | 300 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
TZ430N22KOFHPSA1THYRISTOR MODULE 2200V 430A |
8,250 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 1 SCR | 2.4 kV | 669 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
ETD540N22P60HPSA1THYR / DIODE MODULE DK |
8,438 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 542 A | 700 A | 2.2 V | 250 mA | 16300A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | - | - | Chassis Mount |
|
TD500N16KOFHPSA2SCR MODULE 1800V 900A MODULE |
6,376 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TZ240N36KOFHPSA1SCR MODULE 3.6KV 700A MODULE |
7,436 |
|
Datasheet |
- | Module | Bulk | Active | Single | 1 SCR | 3.6 kV | 240 A | 700 A | 1.5 V | 250 mA | 6100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD520N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
9,868 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | 18000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|

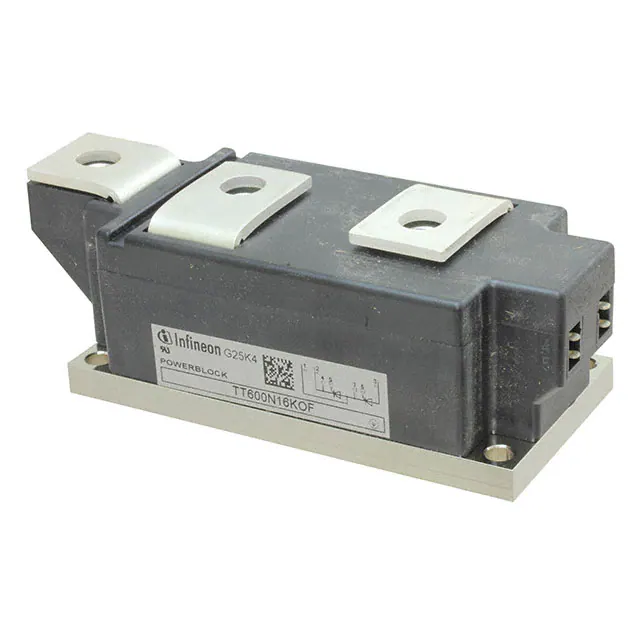

TT600N16KOFHPSA2SCR MODULE 1.6KV 1050A MODULE |
9,034 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 600 A | 1050 A | 2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TD700N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
5,566 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 700 A | 1050 A | 2.2 V | 250 mA | 20400A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TZ800N18KOFHPSA3SCR MODULE 1.8KV 1500A MODULE |
6,730 |
|
Datasheet |
- | Module | Bulk | Active | Single | 1 SCR | 1.8 kV | 819 A | 1500 A | 2 V | 250 mA | 35000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TZ630N28KOFHPSA1SCR MODULE 2.8KV 1500A MODULE |
6,954 |
|
Datasheet |
- | Module | Bulk | Active | Single | 1 SCR | 2.8 kV | 955 A | 1500 A | 2 V | 250 mA | 25.5A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
MCD26-08IO8BMOD THYRISTOR/DIO 800V TO-240AA |
6,882 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC19-14IO1BMOD THYRISTOR DUAL 1400V TO240AA |
4,124 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 25 A | 40 A | 1.5 V | 100 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD26-16IO8BMOD THYRISTOR/DIO 1600V TO-240AA |
2,780 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC44-08IO1BMOD THYRISTOR DUAL 800V TO-240AA |
9,012 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 51 A | 80 A | 1.5 V | 100 mA | 1150A, 1230A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
