SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCD200-14IO1MOD THYRISTOR/DIODE 1400V Y4-M6 |
4,482 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MT160CB16T2-BPMOD SCR/DIODE 160A 1600V T2 |
2,502 |
|
Datasheet |
- | T2 | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCD200-18IO1MOD THYRISTOR/DIODE 1800V Y4-M6 |
7,144 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

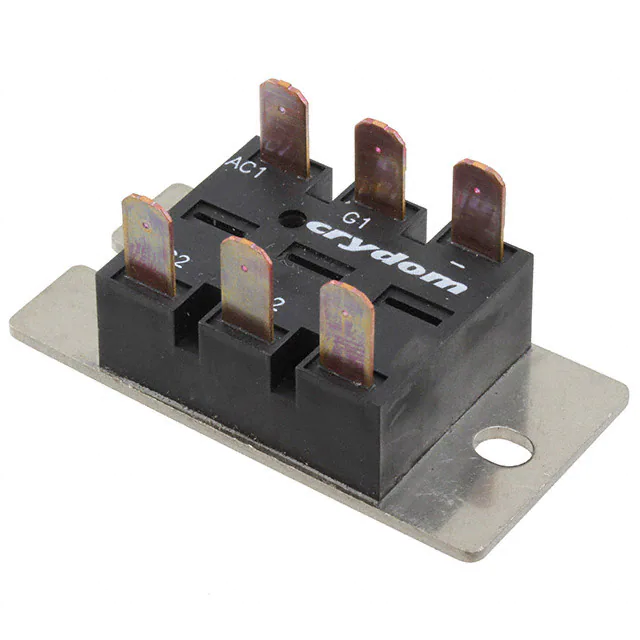

M252513FMODULE POWER 25A 320VAC SCR CC |
7,722 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
|
|
MCC200-16IO1MOD THYRISTOR DUAL 1600V Y4-M6 |
8,674 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCMA260PD1600YBSCR MODULE 1.6KV 260A Y4 |
8,792 |
|
Datasheet |
- | Y4 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 260 A | 408 A | 2 V | 150 mA | 8300A, 8970A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
L312FMODULE SCR/DIODE 15A 240VAC PCB |
9,920 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 100 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
|
MCNA180PD2200YBBIPOLAR MODULE - THYRISTOR Y4-M |
8,634 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 180 A | 280 A | 2 V | 150 mA | 5400A, 5830A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

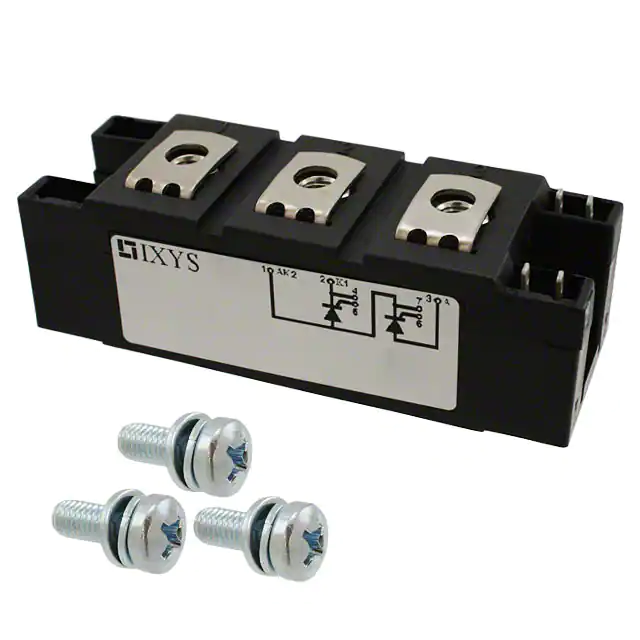

MCC200-18IO1MOD THYRISTOR DUAL 1800V Y4-M6 |
4,298 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT280N16SOFHPSA1SCR MODULE 1.6KV 520A MODULE |
8,920 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
TD280N18SOFHPSA1SCR MODULE 1800V 520A MODULE |
8,702 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
TD320N16SOFHPSA1THYRISTOR MODULE 1600V 320A |
8,698 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 320 A | 520 A | 2 V | 150 mA | - | 150 mA | 130°C (TJ) | - | - | Chassis Mount |
|

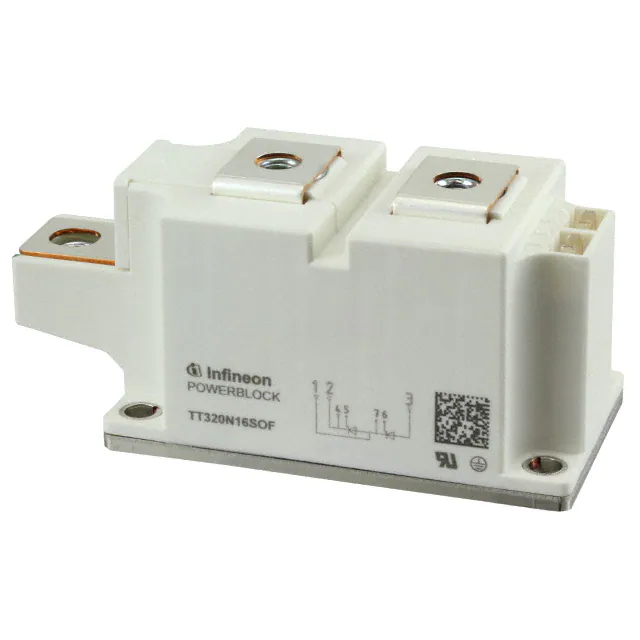

TT320N16SOFHPSA1THYRISTOR MODULE 1600V 320A |
6,734 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 320 A | 520 A | 2 V | 150 mA | - | 150 mA | 130°C (TJ) | - | - | Chassis Mount |
|
TT390N18SOFHPSA1SCR MODULE 1.8KV 520A MODULE |
5,576 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
|
MCNA220PD2200YBBIPOLAR MODULE - THYRISTOR Y4-M |
6,850 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 220 A | 345 A | 2 V | 150 mA | 7200A, 7780A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCD310-14IO1MOD THYRISTOR/DIODE 1400V Y2-DCB |
5,676 |
|
Datasheet |
- | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCC310-14IO1MOD THYRISTOR DUAL 1400V Y2-DCB |
9,658 |
|
Datasheet |
- | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

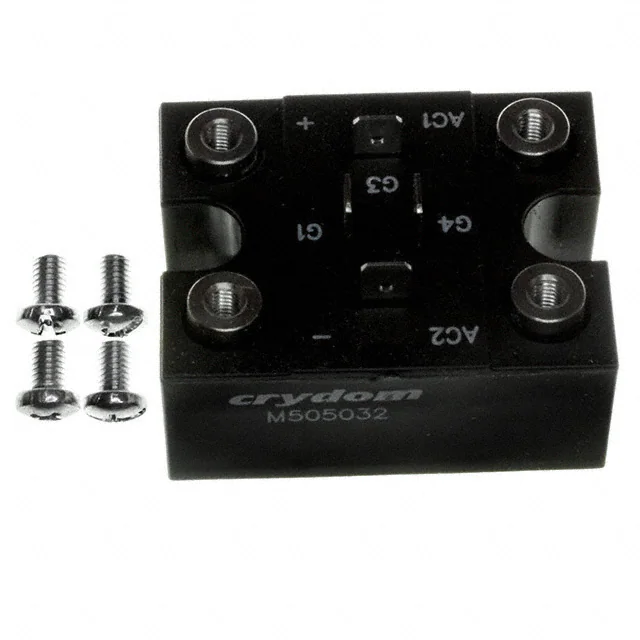

M505032MODULE POWER 50A 600V SCR BRIDGE |
5,260 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TDB6HK240N16PBOSA1THYRISTOR MODULE VDRM 1600V 70A |
5,234 |
|
Datasheet |
- | Module | Tray | Active | Bridge, 3-Phase - SCRs/Diodes | 3 SCRs, 3 Diodes | 1.6 kV | 140 A | 240 A | 2 V | 100 mA | 1800A @ 50Hz | 220 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
MCO500-18IO1MOD THYRISTOR SGL 1800V Y1-CU |
3,926 |
|
Datasheet |
- | Y1-CU | Box | Active | Single | 1 SCR | 1.8 kV | 560 A | 880 A | 2 V | 300 mA | 17000A, 16000A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
