SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

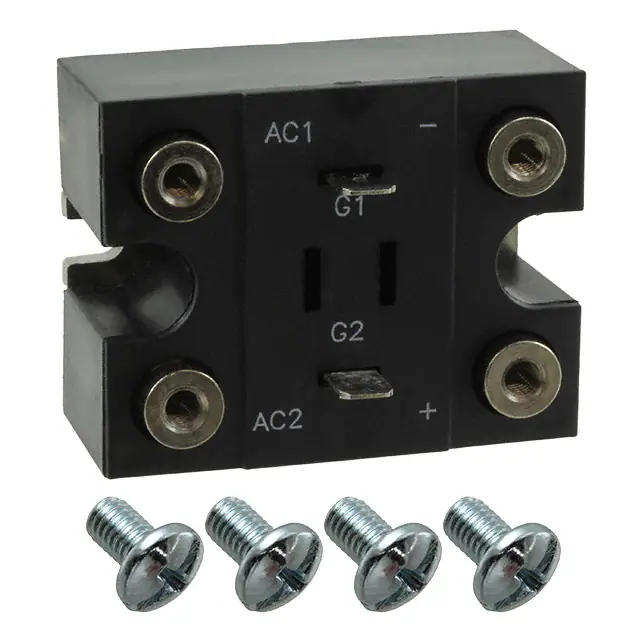

M5010015FMODULE POWER 100A 1200V SCR CC |
5,480 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T1190N14TOFVTXPSA1SCR MODULE 1800V 2800A DO200AC |
6,830 |
|
Datasheet |
- | TO-200AC | Tray | Active | Single | 1 SCR | 1.8 kV | 1190 A | 2800 A | 2 V | 250 mA | 22500A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
TT425N18KOFHPSA2SCR MODULE 1.8KV 800A MODULE |
3,914 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 471 A | 800 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD240N36KOFHPSA1SCR MODULE 3800V 700A MODULE |
4,330 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 3.8 kV | 446 A | 700 A | 1.5 V | 250 mA | 6100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
VWO35-08HO7MODULE AC CTLR 800V ECO-PAC1 |
8,108 |
|
Datasheet |
- | Module | Box | Active | 3-Phase Controller - All SCRs | 6 SCRs | 800 V | 16 A | 35 A | 1.5 V | 65 mA | 200A, 210A | 50 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

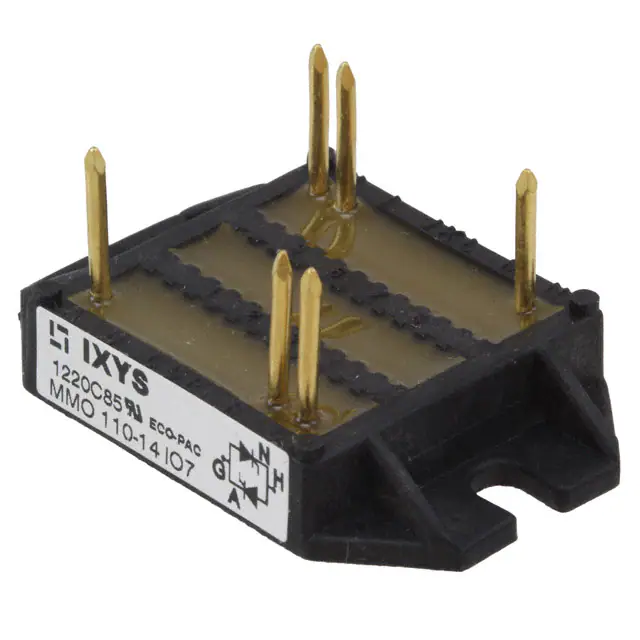

MMO110-14IO7MODULE AC CONTROL 1400V ECO-PAC1 |
7,204 |
|
Datasheet |
- | Module | Box | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.4 kV | 51 A | 81 A | 1.5 V | 100 mA | 1000A, 1070A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
MCD40-16IO6MOD THYRISTOR/DIO 1600V SOT-227B |
3,404 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 38 A | 60 A | 1.5 V | 100 mA | 500A, 440A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
MCC21-16IO8BMOD THYRISTOR DUAL 1600V TO240AA |
5,058 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 21 A | 33 A | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC56-12IO8BMOD THYRISTOR PHASE LEG TO-240AA |
8,456 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-P105WSCR HY-BRIDGE 1200V 25A PACE-PAK |
5,986 |
|
Datasheet |
- | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD95-18IO1BMOD THYRISTOR/DIO 1800V TO-240AA |
7,146 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC56-12IO1BMOD THYRISTOR DUAL 1200V TO240AA |
2,944 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

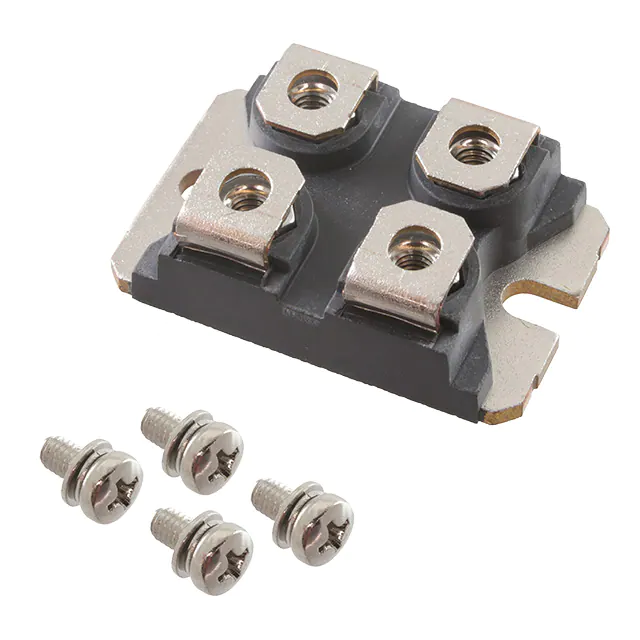

MMO62-16IO6MODULE AC CTLR 1600V SOT-227B |
6,002 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | 25 A | 39 A | 1.5 V | 100 mA | 400A, 430A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MCC56-14IO1BMOD THYRISTOR DUAL 1400V TO240AA |
9,338 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MMO90-14IO6SCR DUAL CNTRL 1400V 90A SOT227B |
4,878 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.4 kV | 38 A | 60 A | 1.5 V | 100 mA | 500A, 440A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MCD95-08IO8BTHYRISTOR DOUB 800V 116A TO-240 |
3,204 |
|
Datasheet |
- | TO-240AA | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VHFD37-08IO1RECT BRIDGE 1PH 800V V1-A-PAK |
6,550 |
|
Datasheet |
- | V1A-PAK | Box | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 4 Diodes | 800 V | 36 A | - | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD72-14IO8BMOD THYRISTOR/DIO 1400V TO-240AA |
9,340 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 115 A | 180 A | 2.5 V | 150 mA | 1700A, 1800A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC56-18IO1BMOD THYRISTOR DUAL 1800V TO240AA |
6,134 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD95-16IO8BMOD THYRISTOR/DIO 1600V TO-240AA |
3,748 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
