SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDB6HK135N16LOFHOSA1SCR MODULE VDRM 1600V 70A |
6,502 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TTW3C85N16LOFHOSA1SCR MODULE 1.6KV 75A MODULE |
12,540 |
|
Datasheet |
- | Module | Bulk | Discontinued at Digi-Key | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 106 A | 75 A | 2.5 V | 150 mA | 720A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TTB6C135N16LOFHOSA1SCR MODULE 1.6KV 100A MODULE |
7,190 |
|
Datasheet |
- | Module | Bulk | Obsolete | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 173 A | 100 A | 2.5 V | 150 mA | 1000A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TTB6C165N16LOFHOSA1SCR MODULE 1.6KV 120A MODULE |
10,336 |
|
Datasheet |
- | Module | Bulk | Obsolete | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 208 A | 120 A | 2.5 V | 150 mA | 1250A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT92N12KOFPMOD,DUAL-SCR,1200V,92A. IT (AVG |
808 |
|
Datasheet |
- | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | - | - | 1.4 V | - | - | 200 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
TDB6HK180N16RRPB11BPSA1TDB6HK180N16RR - LOW POWER ECONO |
3,094 |
|
Datasheet |
EconoPACK™2 | Module | Bulk | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 2 V | 100 mA | 1600A @ 50Hz | 220 mA | 175°C (TJ) | - | - | Chassis Mount |
|
TT120N16SOFHPSA1SCR MODULE 1.6V 190A MODULE |
2,594 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 119 A | 190 A | 2.5 V | 100 mA | - | 250 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
MCC161-22IO1THERISTER MODULE 2200V |
4,996 |
|
Datasheet |
- | Y4-M6 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 165 A | 300 A | 2 V | 150 mA | 6000A, 6400A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TD162N16KOFHPSA2THYR / DIODE MODULE DK |
5,298 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 162 A | 260 A | 2 V | 150 mA | 5200A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TT162N16KOFHPSA2DIODE |
7,504 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 162 A | 260 A | 2 V | 150 mA | 5200A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TD330N16KOFTIMHPSA1SCR MODULE 1600V 520A MODULE |
5,826 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | 12500A @ 50Hz | 300 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
T1220N28TOFVTXPSA1SCR MODULE 2800V 2625A DO200AC |
3,544 |
|
Datasheet |
- | TO-200AC | Tray | Active | Single | 1 SCR | 2.8 kV | 1220 A | 2625 A | 2 V | 250 mA | 25000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
T501N70TOHXPSA1SCR MODULE 7000V 1000A DO200AC |
4,726 |
|
Datasheet |
- | TO-200AC | Tray | Active | Single | 1 SCR | 7 kV | 890 A | 1000 A | 2.5 V | 350 mA | 13500A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Clamp On |
|
MCC26-16IO1BTHYRISTOR MODULE 1600V 2X32A |
4,348 |
|
Datasheet |
- | TO-240AA | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC95-08IO1BMOD THYRISTOR DUAL 800V TO-240AA |
2,614 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC95-14IO1BMOD THYRISTOR DUAL 1400V TO240AA |
8,518 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

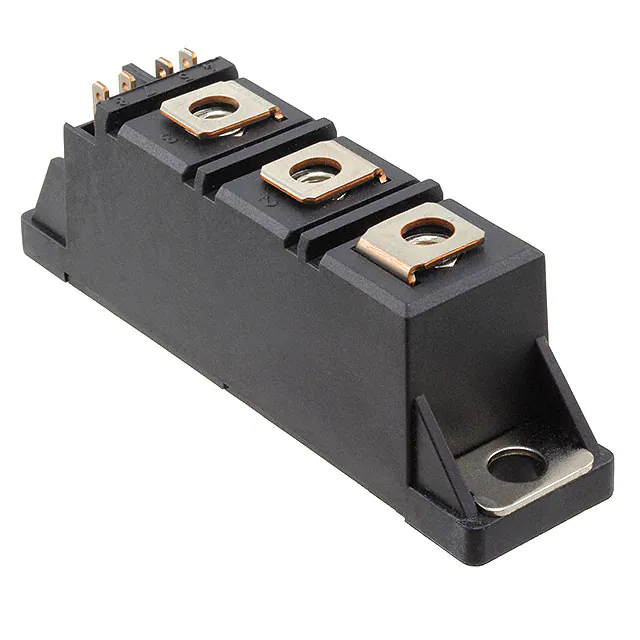

VS-VSKT56/16MODULE THYRISTOR 60A ADD-A-PAK |
8,316 |
|
Datasheet |
- | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 60 A | 135 A | 2.5 V | 150 mA | 1200A, 1256A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKT91/12MODULE THYRISTOR 95A ADD-A-PAK |
4,614 |
|
Datasheet |
- | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 95 A | 210 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC94-22IO1BMOD THYRISTOR DUAL 2200V TO240AA |
2,682 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 104 A | 180 A | 1.5 V | 100 mA | 1700A, 1800A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TD240N18SOFHPSA1SCR MODULE 1.8KV 275A MODULE |
2,462 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
