SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCMA200P1600YASCR MODULE 1.6KV 200A MODULE |
9,054 |
|
Datasheet |
- | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 200 A | 315 A | 2.5 V | 150 mA | 6000A, 6480A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
B512F-2T-YEBMOD DIODE SCR 25A 240VAC .250"QC |
7,146 |
|
Datasheet |
B-2T | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B612FSE-2TMOD DIODE SCR 42.5A 240V .250"QC |
9,444 |
|
Datasheet |
B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCMA260PD1800YBSCR MODULE 1.8KV 260A Y4-M6 |
2,386 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 260 A | 408 A | 2 V | 150 mA | 8300A, 8970A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCNA150P2200YABIPOLAR MODULE - THYRISTOR Y4-M |
9,262 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 150 A | 235 A | 2 V | 150 mA | 4300A, 4650A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
TT320N18SOFHPSA1SCR MODULE 1800V 520A MODULE |
9,186 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 320 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
|
T512FMODULE POWER |
7,844 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T512FSMODULE POWER |
3,980 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
L413FMODULE BRIDGE RECT SLG PHASE 12A |
2,292 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | 100 A | 22 A | 2.5 V | 100 mA | - | 100 mA | -40°C ~ 125°C (TJ) | - | - | - |
|
|
MCNA180P2200YABIPOLAR MODULE - THYRISTOR Y4-M |
9,910 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 180 A | 280 A | 2 V | 150 mA | 5400A, 5830A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCC161-20IO1SCR 175A 2000V |
3,964 |
|
Datasheet |
- | Y4-M6 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2 kV | 165 A | 300 A | 2 V | 150 mA | 6000A, 6400A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

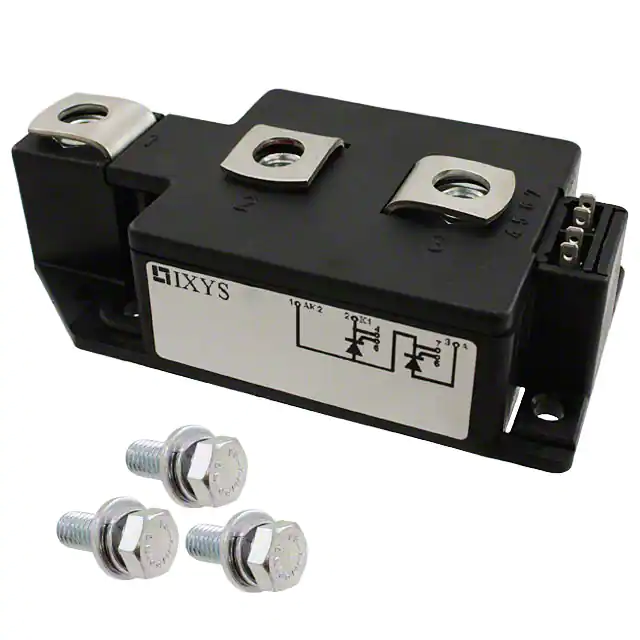

MCC310-12IO1THYRISTOR MODULE 1300V |
4,076 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
TDB6HK124N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 |
5,614 |
|
Datasheet |
- | Module | Tray | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | 70 A | 2.5 V | 150 mA | 650A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
xxx-xxIO1.jpg)
|
MCC255-12IO1MOD THYRISTOR DUAL 1200V Y1-CU |
8,142 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

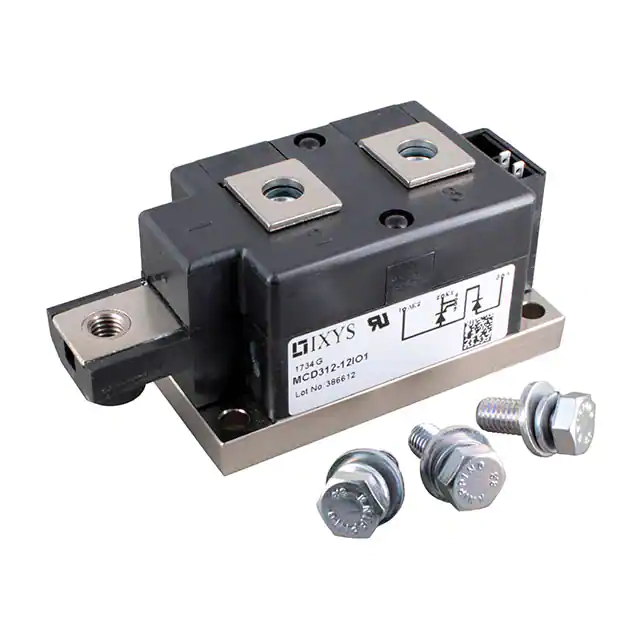

MCD312-12IO1MOD THYRISTOR/DIODE 1200V Y1-CU |
2,852 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 320 A | 520 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

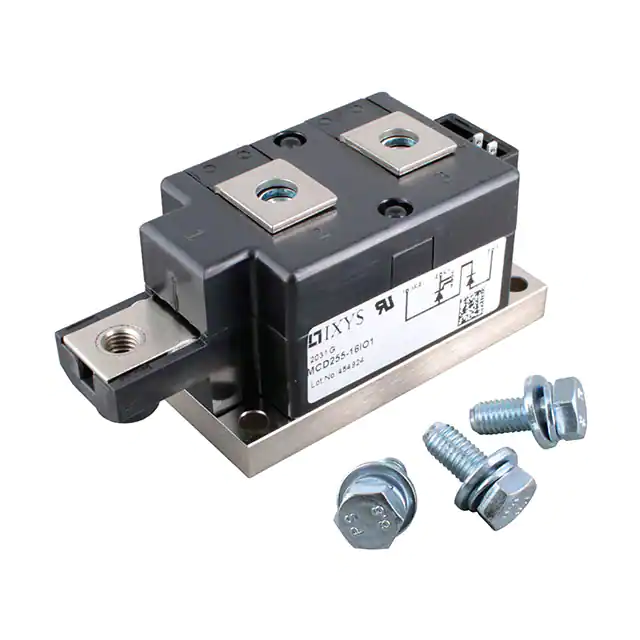

MCD255-16IO1MOD THYRISTOR/DIODE 1600V Y1-CU |
8,030 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCO600-16IO1MOD THYRISTOR SGL 1600V Y1-CU |
5,598 |
|
Datasheet |
- | Y1-CU | Box | Active | Single | 1 SCR | 1.6 kV | 600 A | 928 A | 2 V | 300 mA | 15000A, 16000A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

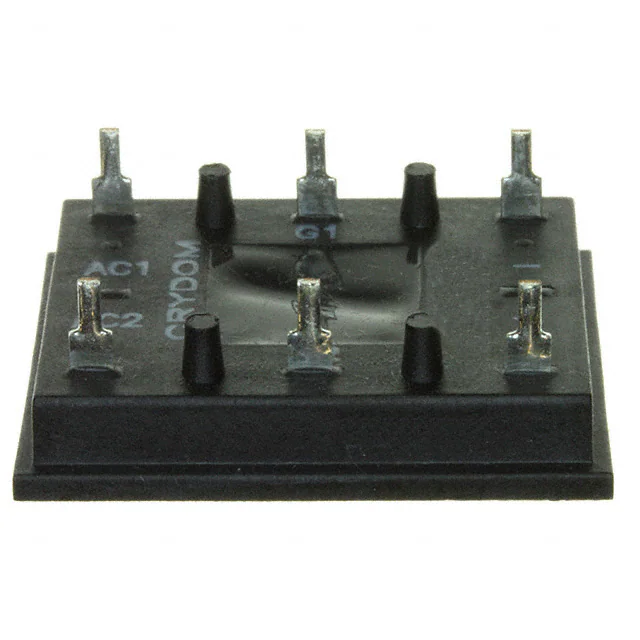

L622FMODULE SCR/DIO 42.5A 240VAC PCB |
8,672 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 100 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
F1892SD600MODULE SCR/DIODE 90A 240VAC |
3,284 |
|
Datasheet |
F18 | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT330N16KOFHPSA2SCR MODULE 1.6KV 520A MODULE |
3,974 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | - | 300 mA | 130°C (TJ) | - | - | Chassis Mount |
