SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT370N18KOFHPSA1THYR / DIODE MODULE DK |
3,260 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TD570N18KOFHPSA1THYR / DIODE MODULE DK |
3,150 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|

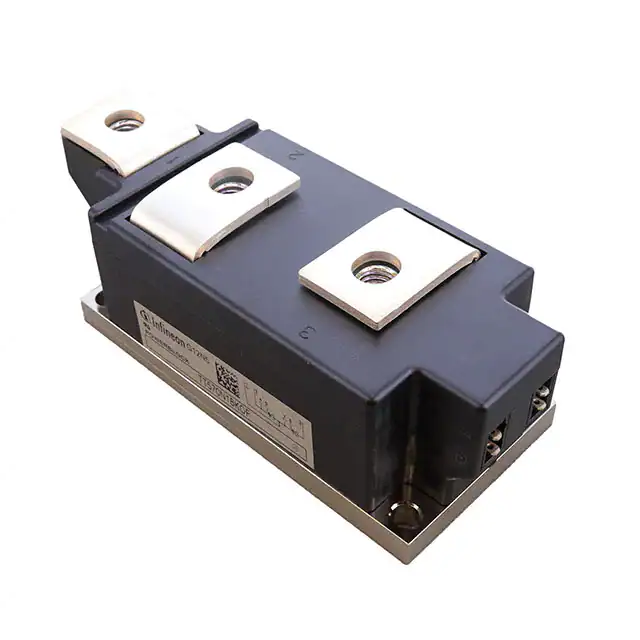

TT570N18KOFHPSA1THYR / DIODE MODULE DK |
9,904 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
.jpg)
|
T3800N16TOFVTXPSA1STD THYR/DIODEN DISC BG-T11126K- |
10,110 |
|
Datasheet |
- | TO-200AE | Bulk | Active | Single | 1 SCR | 1.8 kV | 3800 A | 5970 A | 2.5 V | 250 mA | 63000A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
MCC26-14IO1BDUL THYRIS MOD 800-2200V 19-320A |
8,076 |
|
Datasheet |
- | TO-240AA | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC56-08IO1BMOD THYRISTOR DUAL 800V TO-240AA |
6,092 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC44-16IO1BMOD THYRISTOR DUAL 1600V TO240AA |
9,296 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 51 A | 80 A | 1.5 V | 100 mA | 1150A, 1230A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT60N16SOFB01HPSA1SCR MODULE 1600V 90A MODULE |
6,708 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 2 SCRs | 1.6 kV | 55 A | 90 A | 2.5 V | 100 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
MT25CB16T1-BPSCR MODULE 1.6KV 25A T-1 |
5,742 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MT25C16T1-BPMOD SCR DUAL 25A 1600V T1 |
9,870 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MT40C16T1-BPMOD SCR DUAL 40A 1600V T1 |
6,126 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 40 A | - | 2.5 V | 150 mA | 1000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MT60CB16T1-BPMOD SCR/DIODE 60A 1600V T1 |
4,446 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCMA140P1600TA-NIBIPOLAR MODULE - THYRISTOR TO-2 |
3,880 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 140 A | 220 A | 1.5 V | 150 mA | 2.4kA, 2.59kA | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MT90CB16T1-BPMOD SCR/DIODEL 90A 1600V T1 |
7,016 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 90 A | - | 3 V | 150 mA | 2000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKU91/08MODULE THYRISTOR 95A ADD-A-PAK |
3,850 |
|
Datasheet |
- | ADD-A-PAK (3 + 4) | Bulk | Active | Common Cathode - All SCRs | 2 SCRs | 800 V | 95 A | 150 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT160N16SOFHPSA1SCR MODULE 1.6KV 275A MODULE |
5,326 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
DD220N22SHPSA1LA-T-BOND MODULE |
7,980 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 273 A | 275 A | - | - | 5750A @ 50Hz | - | 130°C (TC) | - | - | Chassis Mount |
|
|
TD240N16SOFHPSA1LA-T-BOND MODULE |
2,354 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
|
MT60C16T1-BPMOD SCR DUAL 60A 1600V T1 |
4,632 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT240N16SOFHPSA1LA-T-BOND MODULE |
6,720 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
