SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT500N14KOFHPSA2SCR MODULE 1.4KV 900A MODULE |
5,730 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T1190N16TOFVTXPSA1SCR MODULE 1800V 2800A DO200AC |
5,478 |
|
Datasheet |
- | TO-200AC | Bulk | Active | Single | 1 SCR | 1.8 kV | 1190 A | 2800 A | 2 V | 250 mA | 22500A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
T1500N16TOFVTXPSA1SCR MODULE 1800V 3500A DO200AC |
9,832 |
|
Datasheet |
- | DO-200AB, B-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 1500 A | 3500 A | 2 V | 250 mA | 39000A @ 50Hz | 500 mA | -40°C ~ 140°C | - | - | Clamp On |
|
|
T1500N18TOFVTXPSA1SCR MODULE 1800V 3500A DO200AC |
9,918 |
|
Datasheet |
- | DO-200AB, B-PUK | Bulk | Active | Single | 1 SCR | 1.8 kV | 1500 A | 3500 A | 2 V | 350 mA | 39000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
TT240N36KOFHPSA1SCR MODULE 3.6KV 700A MODULE |
3,896 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 3.6 kV | 446 A | 700 A | 1.5 V | 250 mA | 6100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T3710N06TOFVTXPSA1SCR MODULE 600V 7000A DO200AD |
9,860 |
|
Datasheet |
- | DO-200AD | Tray | Active | Single | 1 SCR | 600 V | 3710 A | 7000 A | 1.5 V | 250 mA | 70000A @ 50Hz | 300 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
|
T2180N18TOFVTXPSA1SCR MODULE 1800V 4460A DO200AD |
8,290 |
|
Datasheet |
- | DO-200AD | Tray | Active | Single | 1 SCR | 1.8 kV | 2180 A | 4460 A | 2 V | 250 mA | 44000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T1960N22TOFVTXPSA1SCR MODULE 2200V 4100A DO200AD |
3,768 |
|
Datasheet |
- | TO-200AD | Bulk | Active | Single | 1 SCR | 2.2 kV | 1960 A | 4100 A | 2.5 V | 300 mA | 40000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
VHFD16-12IO1RECT BRIDGE 1PH 1200V V1A-PAK |
2,552 |
|
- |
- | V1A-PAK | Box | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 4 Diodes | 1.2 kV | 16 A | - | 1 V | 65 mA | 150A, 170A | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MT40CB16T1-BPMOD SCR/DIODE 40A 1600V T1 |
3,380 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 40 A | - | 2.5 V | 150 mA | 1000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
PK25FG80THYRISTOR MODULE 800V 25A |
3,972 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 25 A | 39 A | 3 V | 50 mA | 640A, 700A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-P124MOD BRIDGE DBLR 25A 1000V D-19 |
8,098 |
|
Datasheet |
- | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 3) | 2 SCRs, 2 Diodes | 1 kV | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

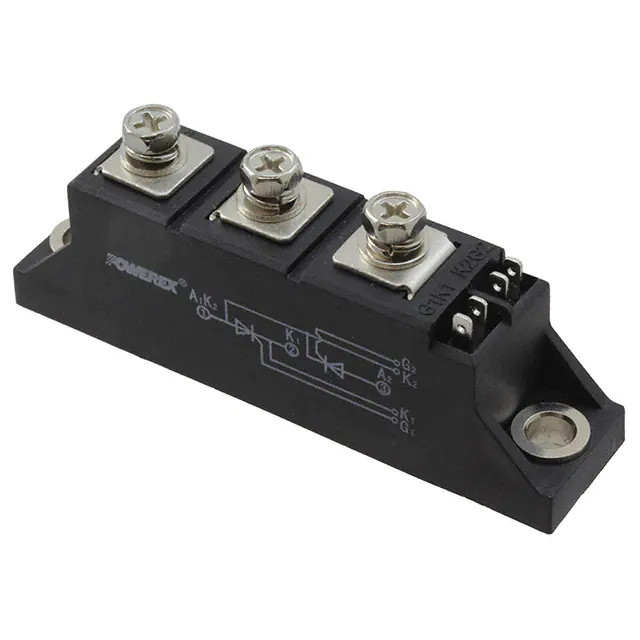

CD431690CPMOD,DUAL-SCR,1600V,90A. IT (AVG |
6,626 |
|
Datasheet |
- | POW-R-BLOK™ Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 90 A | - | 2.5 V | 100 mA | - | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
CD431690CDUAL SCR MODULE |
9,164 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 90 A | 141 A | 2.5 V | 100 mA | 2000A @ 50Hz | 100 mA | -40°C ~ 125°C (TJ) | - | - | - |
|
|
CD431290CPMOD,DUAL-SCR,1200V,90A. IT (AVG |
7,882 |
|
Datasheet |
- | POW-R-BLOK™ Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 90 A | - | 2.5 V | 100 mA | - | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B511F-2MOD DIODE SCR 25A 120VAC ISO QC |
15,542 |
|
Datasheet |
B-2 | Module with Isolation Barriers | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 400 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B522-2TMOD DIODE SCR 25A 240VAC .250"QC |
11,380 |
|
Datasheet |
B-2T | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
B511-2MOD DIODE SCR 25A 120VAC ISO QC |
6,872 |
|
Datasheet |
B-2 | Module with Isolation Barriers | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 400 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
DFA50BA160DIODE MODULE 1600V 50A |
2,932 |
|
Datasheet |
- | Module | Tray | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 50 A | - | 3 V | 70 mA | 730A, 800A | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
CD431899CSCR MODULE DUAL |
6,390 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 110 A | 173 A | 2.5 V | 100 mA | 2400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
