SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDB6HK180N16RRB48BPSA1SCR MODULE VDRM 1600V 70A |
19,008 |
|
Datasheet |
EconoPACK™ 2 | Module | Bulk | Discontinued at Digi-Key | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 2 V | 100 mA | 1600A @ 50Hz | 220 mA | 175°C (TJ) | - | - | Chassis Mount |
|
TT210N16KOFHPSA1SCR MODULE 1.6KV MODULE |
12,332 |
|
Datasheet |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 261 A | - | 2 V | 200 mA | 6600A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
B642SE-2TMOD DIODE SCR 42.5A 240V .250"QC |
16,638 |
|
Datasheet |
B-2T | Module | Bulk | Obsolete | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M505034MODULE POWER 50A 1000V SCR BRDG |
10,196 |
|
Datasheet |
M50 | Module | Bulk | Obsolete | Bridge, Single Phase - All SCRs | 4 SCRs | 1 kV | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TDB6HK180N16RRB21BOSA11600VBRIDGE MODULE |
2,682 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TT250N12KOFKHPSA1SCR MODULE 1800V 410A MODULE |
13,068 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 2 SCRs | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TZ500N14KOFHPSA1SCR MODULE 1.4KV 1050A MODULE |
14,754 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single | 1 SCR | 1.4 kV | 669 A | 1050 A | 2.2 V | 250 mA | 17A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD210N16KOFHPSA1SCR MODULE 1800V 410A MODULE |
14,562 |
|
Datasheet |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 261 A | 410 A | 2 V | 200 mA | 6600A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
F1892DH1200MODULE SCR/DIODE 90A 480VAC |
8,554 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TT170N16KOFHPSA1SCR MODULE 1.6KV 350A MODULE |
11,082 |
|
Datasheet |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 223 A | 350 A | 2 V | 200 mA | 5200A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
F1892CAH600MODULE SCR/DIODE 90A 240VAC |
9,754 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TT92N16KOFPMOD,DUAL-SCR,1600V,92A. IT (AVG |
9,152 |
|
Datasheet |
- | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | - | - | 1.4 V | - | - | 200 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
F1892SD1400MODULE SCR/DIODE 90A 530VAC |
11,522 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T612FSEMODULE POWER |
8,348 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VS-VSKT250-12PBFMODULE DIODE SCR 250A MAGN-A-PAK |
7,970 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|

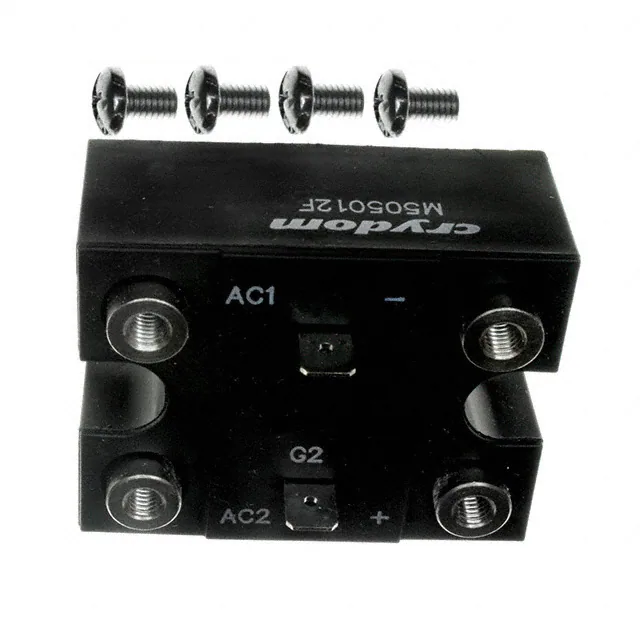

M5010012MODULE POWER 100A 600V SCR CC |
3,816 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1857HD600MODULE SCR/DIODE 55A 240VAC |
19,178 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F18107SDK1600MODULE SCR/DIODE 105A 600VAC |
18,846 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | - | - | 3 V | 150 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
ETD420N22P60HPSA1THYR / DIODE MODULE DK |
16,694 |
|
Datasheet |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 427 A | 700 A | 2.2 V | 250 mA | 13400A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | - | - | Chassis Mount |
|
|
M5010064M SERIES POWER MODULE |
6,938 |
|
Datasheet |
M50 | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
