SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT500N16KOFHPSA2SCR MODULE 1.6KV 900A MODULE |
9,392 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
VTO39-12HO7RECT BRIDGE 3PH 1200V ECO-PAC1 |
10,298 |
|
Datasheet |
- | ECO-PAC1 | Box | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.2 kV | 39 A | - | 1.5 V | 25 mA | 200A, 210A | 50 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MMO62-12IO6MODULE AC CTLR 1200V SOT-227B |
19,322 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.2 kV | 25 A | 39 A | 1.5 V | 100 mA | 400A, 430A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
VS-P102WSCR HY-BRIDGE 600V 25A PACE-PAK |
4,214 |
|
Datasheet |
- | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-P125SCR HY-BRIDGE 1200V 25A PACE-PAK |
13,712 |
|
Datasheet |
- | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 3) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-T90RIA120SCR PHASE CONT 1200V 90A D-55 |
4,648 |
|
Datasheet |
- | D-55 T-Module | Bulk | Active | Single | 1 SCR | 1.2 kV | 90 A | 141 A | 2.5 V | 120 mA | 1780A, 1870A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-VSKH105/06MODULE DIODE 600V 105A ADD-A-PAK |
8,598 |
|
Datasheet |
- | ADD-A-PAK (3) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | 105 A | 235 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT91/14MODULE THYRISTOR 95A ADD-A-PAK |
3,050 |
|
Datasheet |
- | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 95 A | 210 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VVZ40-16IO1RECT BRIDGE 3PH 34A 1600V KAMM |
6,600 |
|
Datasheet |
- | KAMM | Box | Active | Bridge, 3-Phase - SCRs/Diodes | 3 SCRs, 3 Diodes | 1.6 kV | 34 A | - | 1 V | 65 mA | 320A, 340A | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCC162-08IO1MOD THYRISTOR DUAL 800V Y4-M6 |
6,370 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC162-12IO1MOD THYRISTOR DUAL 1200V Y4-M6 |
9,122 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MT90C16T1-BPSCR MODULE 1.6KV 25A T-1 |
19,860 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 90 A | - | 3 V | 150 mA | 2000A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
MCD162-18IO1MOD THYRISTOR/DIODE 1800V Y4-M6 |
11,506 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B512-2T-YDAMOD DIODE SCR 25A 240VAC .250"QC |
9,950 |
|
Datasheet |
B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD200-16IO1MOD THYRISTOR/DIODE 1600V Y4-M6 |
11,236 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC132-16IO1THYRISTOR MOD 1600V 2X138A |
6,328 |
|
Datasheet |
- | Y4-M6 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 130 A | 300 A | 2.5 V | 150 mA | 4750A, 5080A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC200-14IO1MOD THYRISTOR DUAL 1400V Y4-M6 |
8,506 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

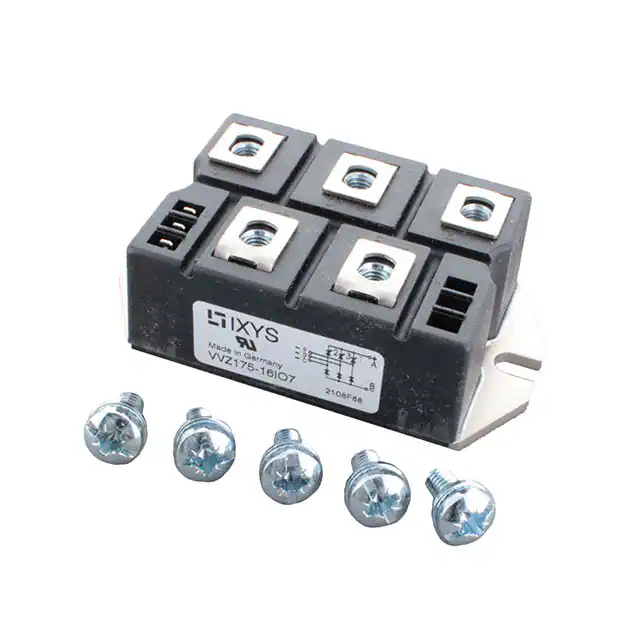

VVZ175-16IO7RECT BRIDGE 3PH 167A 1600V PWSE2 |
9,930 |
|
Datasheet |
- | PWS-E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes | 3 SCRs, 3 Diodes | 1.6 kV | 167 A | 89 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD280N16SOFHPSA1SCR MODULE 1600V 520A MODULE |
5,160 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
|
TD320N18SOFHPSA1SCR MODULE 1.8KV 520A MODULE |
6,284 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 320 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
