SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L522FMODULE SCR/DIODE 25A 240VAC PCB |
19,864 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|

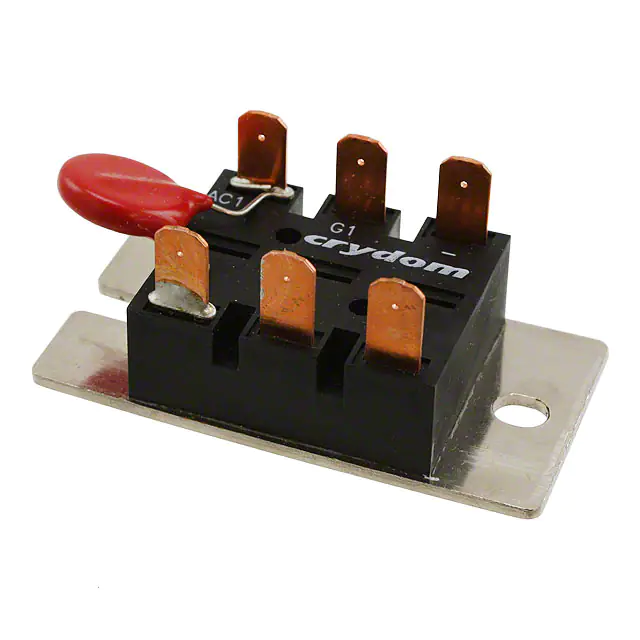

M254012FVMODULE POWER 40A 600V SCR CC |
18,564 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 50 mA | 400A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
|
M505052MODULE POWER 50A 600V SCR DBLR |
13,234 |
|
Datasheet |
M50 | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT104N14KOFHPSA1SCR MODULE 1.4KV 160A MODULE |
6,476 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
L514FMODULE SCR/DIODE 25A 480VAC PCB |
4,684 |
|
Datasheet |
L | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
MCNA220P2200YABIPOLAR MODULE - THYRISTOR Y4-M |
15,992 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 220 A | 345 A | 2 V | 150 mA | 7200A, 7780A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
xxx-xxIO1.jpg)
|
MCC255-14IO1MOD THYRISTOR DUAL 1400V Y1-CU |
13,906 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
L612FMODULE SCR/DIO 42.5A 240VAC PCB |
17,560 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 100 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
|
MCC312-12IO1MOD THYRISTOR DUAL 1200V Y1-CU |
10,078 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 320 A | 520 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
F1827SD1000MODULE SCR/DIODE 25A 380VAC |
9,716 |
|
Datasheet |
F18 | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
PGH200N16THYRISTOR MODULE 3PHASE LEG T+D |
14,346 |
|
Datasheet |
- | Module | Bulk | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 150 mA | 4000A @ 50Hz | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MCMA700P1600NCASCR MODULE 1.6KV 700A COMPACK |
6,584 |
|
Datasheet |
- | ComPack | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1100 A | 2 V | 300 mA | 19000A, 20500A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
T1400N16H75VTXPSA1STD THYR/DIODEN DISC BG-T7526K-1 |
17,882 |
|
Datasheet |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TT425N16KOFHPSA3SCR MODULE 1.6KV 800A MODULE |
17,658 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 471 A | 800 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T1700N16H75VTXPSA1STD THYR/DIODEN DISC BG-T7526K-1 |
14,648 |
|
Datasheet |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TT430N22KOFHPSA2SCR MODULE 2.2KV 800A MODULE |
16,266 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 430 A | 800 A | 2.2 V | 250 mA | - | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT520N22KOFHPSA2THYRISTOR MODULE 2200V 520A |
8,448 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TD600N16KOFTIMHPSA1SCR MODULE 1600V 1050A MODULE |
7,430 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 600 A | 1050 A | 2 V | 250 mA | 21000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD780N18KOFHPSA1THYR / DIODE MODULE DK |
17,382 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 775 A | 1050 A | 2 V | 250 mA | 23500A | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TT780N18KOFHPSA1THYR / DIODE MODULE DK |
18,118 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 775 A | 1050 A | 2 V | 250 mA | 23500A | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
