SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

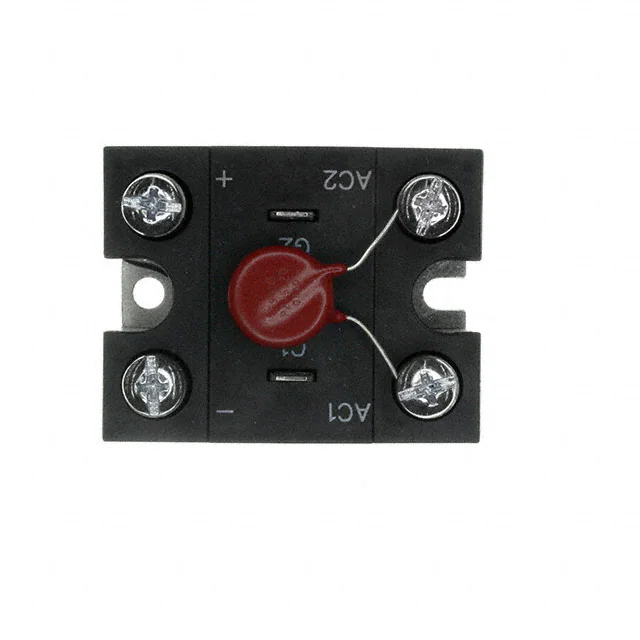

M505012FVMODULE POWER 50A 600V SCR DIODE |
5,942 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCD310-16IO1MOD THYRISTOR/DIODE 1600V Y2-DCB |
10,674 |
|
Datasheet |
- | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
xxx-xxIO1.jpg)
|
MCD312-16IO1MOD THYRISTOR/DIODE 1600V Y1-CU |
19,574 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 320 A | 520 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
M5010012FMODULE POWER 100A 600V SCR CC |
13,854 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCMA700P1600CASCR MODULE 1.6KV 700A COMPACK |
6,550 |
|
Datasheet |
- | ComPack | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1100 A | 2 V | 300 mA | 19000A, 20500A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
ETT540N22P60HPSA1THYR / DIODE MODULE DK |
8,860 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 542 A | 700 A | 2.2 V | 250 mA | 16300A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | - | - | Chassis Mount |
|

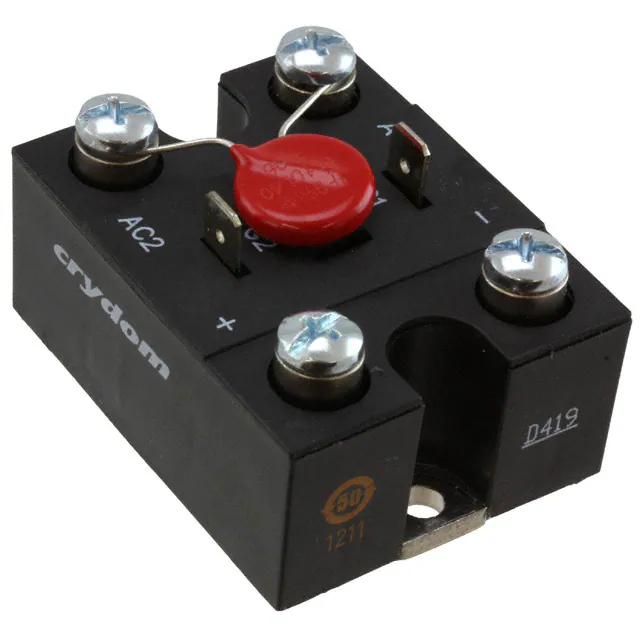

M5010015VMODULE POWER 100A 1200V SCR CC |
19,190 |
|
Datasheet |
M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TT570N16KOFHPSA2SCR MODULE 1.6KV 900A MODULE |
8,474 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 600 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD820N16KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
5,790 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 820 A | 1050 A | 2 V | 250 mA | 24800A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TT820N16KOFHPSA1THYR / DIODE MODULE DK |
8,296 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 820 A | 1050 A | 2 V | 250 mA | 24800A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TZ810N22KOFHPSA2SCR MODULE 2.2KV 1500A MODULE |
9,526 |
|
Datasheet |
- | Module | Bulk | Active | Single | 1 SCR | 2.2 kV | 819 A | 1500 A | 2 V | 250 mA | - | 500 mA | 125°C (TJ) | - | - | Chassis Mount |
|
MCD56-16IO1BMOD THYRISTOR/DIO 1600V TO-240AA |
11,914 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC44-18IO8BMOD THYRISTOR DUAL 1800V TO240AA |
14,684 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 51 A | 80 A | 1.5 V | 100 mA | 1150A, 1230A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCMA65P1600TASCR MODULE 1.6KV 65A TO240AA |
17,674 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 65 A | 105 A | 1.5 V | 95 mA | 1150A, 1240A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCD72-16IO8BMOD THYRISTOR/DIO 1600V TO-240AA |
6,310 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 115 A | 180 A | 2.5 V | 150 mA | 1700A, 1800A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC26-12IO8BMOD THYRISTOR DUAL 1200V TO240AA |
7,278 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC72-12IO1BMOD THYRISTOR DUAL 1200V TO240AA |
4,264 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 115 A | 180 A | 2.5 V | 150 mA | 1700A, 1800A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD72-16IO1BMOD THYRISTOR/DIO 1600V TO-240AA |
6,746 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 115 A | 180 A | 2.5 V | 150 mA | 1700A, 1800A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC95-12IO8BTHYRISTOR MODULE 1200V 2X116A |
8,322 |
|
Datasheet |
- | TO-240AA | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC95-16IO8BTHYRISTOR MODULE 1600V TO-240AA |
2,938 |
|
Datasheet |
- | TO-240AA | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
