SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-VSKT56/12MODULE THYRISTOR 60A ADD-A-PAK |
16,590 |
|
Datasheet |
- | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 60 A | 135 A | 2.5 V | 150 mA | 1200A, 1256A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-P135MOD BRIDGE SCR 25A 1200V PACEPAK |
5,984 |
|
Datasheet |
- | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 1.2 kV | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD60N16SOFHPSA1SCR MODULE 1600V 90A MODULE |
3,454 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 55 A | 90 A | 2.5 V | 100 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
MCMA50P1600TASCR MODULE 1.6KV 50A TO240AA |
8,154 |
|
Datasheet |
- | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 50 A | 79 A | 1.5 V | 78 mA | 800A, 865A | 100 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
VS-P102KWSCR HY-BRIDGE 600V 25A PACE-PAK |
18,820 |
|
Datasheet |
- | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
CMA80PD1600NAMOD THYRISTOR DUAL 1600V SOT-227 |
17,640 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 80 A | 126 A | 1.5 V | 100 mA | 1070A, 1160A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
VHFD37-12IO1RECT BRIDGE 1PH 1200V V1A-PAK |
11,734 |
|
Datasheet |
- | V1A-PAK | Box | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 4 Diodes | 1.2 kV | 36 A | - | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCO150-16IO1MOD THYRISTOR SGL 1600V SOT-227B |
2,058 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | Single | 1 SCR | 1.6 kV | 149 A | 234 A | 1.5 V | 150 mA | 2000A, 2150A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|

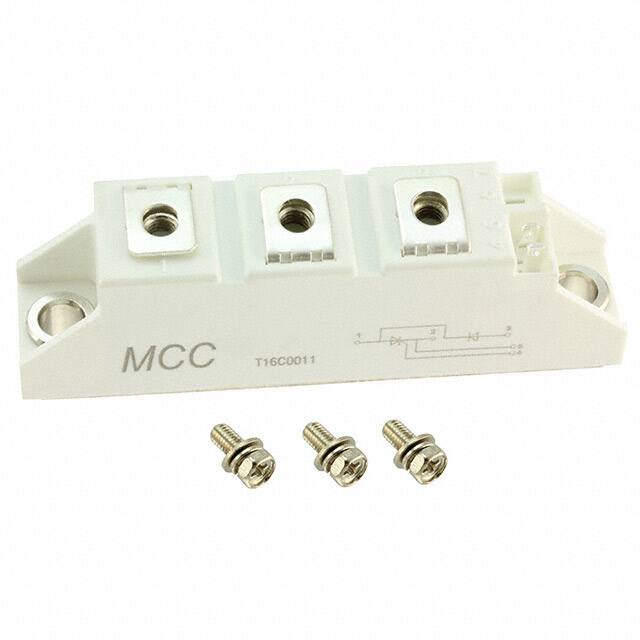

MT110CB16T1-BPMOD SCR/DIODE 110A 1600V T1 |
17,756 |
|
Datasheet |
- | T1 | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

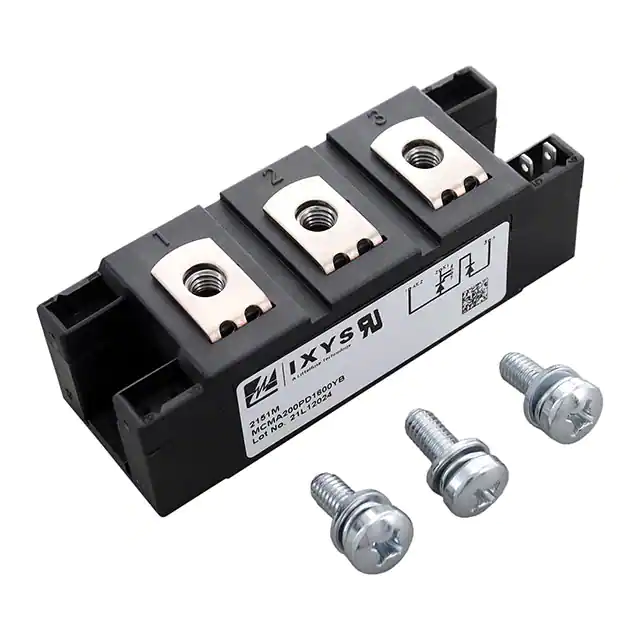

MCMA200PD1600YBDUAL THYRISTOR/DIODE Y4 |
6,118 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 200 A | 315 A | 2.5 V | 150 mA | 6000A, 6480A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
TD190N16SOFHPSA2SCR MODULE 1.6KV 275A MODULE |
17,582 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 190 A | 275 A | 2.5 V | 145 mA | - | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TT190N18SOFHPSA1SCR MODULE 1800V 275A MODULE |
14,636 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 190 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
VS-VSKT162/08PBFMOD PH CTRL 800V 160A INT-A-PAK |
16,442 |
|
Datasheet |
- | INT-A-PAK (3) | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCC162-18IO1MOD THYRISTOR DUAL 1800V Y4-M6 |
18,296 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCMA120UJ1800EDSCR MODULE 1.8KV E2 PACK |
6,160 |
|
Datasheet |
- | E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes | 3 SCRs, 3 Diodes | 1.8 kV | - | - | 1.4 V | 70 mA | 500A, 540A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT162/16PBFMODULE THYRISTOR 160A INT-A-PAK |
19,916 |
|
Datasheet |
- | INT-A-Pak | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B554-2MOD DIODE SCR 25A 480VAC ISO QC |
13,094 |
|
Datasheet |
B-2 | Module with Isolation Barriers | Bulk | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VVZB120-16IOXDIODE BRIDGE 1600V 180A |
17,726 |
|
Datasheet |
- | V2-PAK | Box | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 1.5 V | 95 mA | 700A, 755A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
MCMA260P1600YASCR MODULE 1.6KV 260A Y4 |
13,352 |
|
Datasheet |
- | Y4 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 260 A | 408 A | 2 V | 150 mA | 8300A, 8970A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

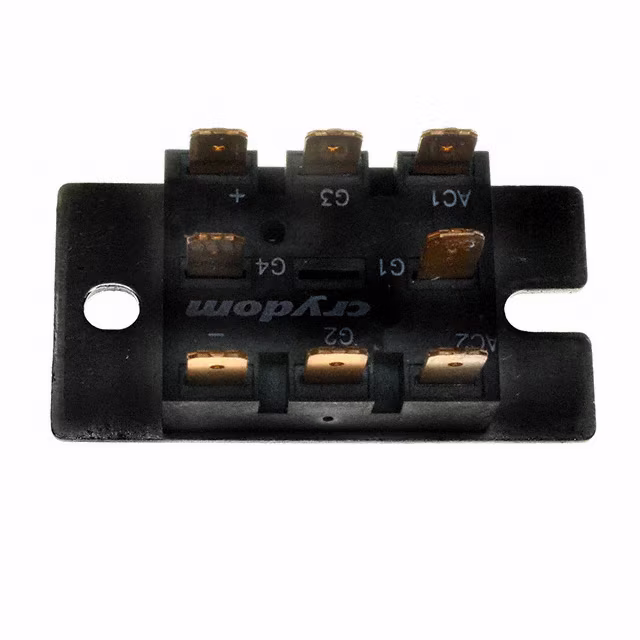

M252532MODULE POWER 25A 600V SCR BRIDGE |
9,584 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
