Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC2505-1YMIC PWR SWITCH N-CHAN 1:1 8SOIC |
4,564 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 7.5V | Not Required | 2A | 30mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MIC2505-1YM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,582 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 7.5V | Not Required | 2A | 30mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TPS27SA08CPWPR36-V, 8-M, 1-CH SMART HIGH-SIDE |
6,844 |
|
Datasheet |
16-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 10A | 9mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-HTSSOP |
|
BTS52004EKAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
20,582 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | Parallel | 5V ~ 28V | Not Required | 800mA | 200mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14-48-EP |
|
BV1HAL45EFJ-E234 V BREAKDOWN VOLTAGE VARIABLE |
13,154 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:2 | High Side | N-Channel | On/Off | 8V ~ 32V | Not Required | 10A | 45mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 8-HTSOP-J |
|
TLE75080ESHXUMA1IC PWR DRVR N-CHAN 1:8 TSDSO-24 |
21,928 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | High Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24-21 |
|

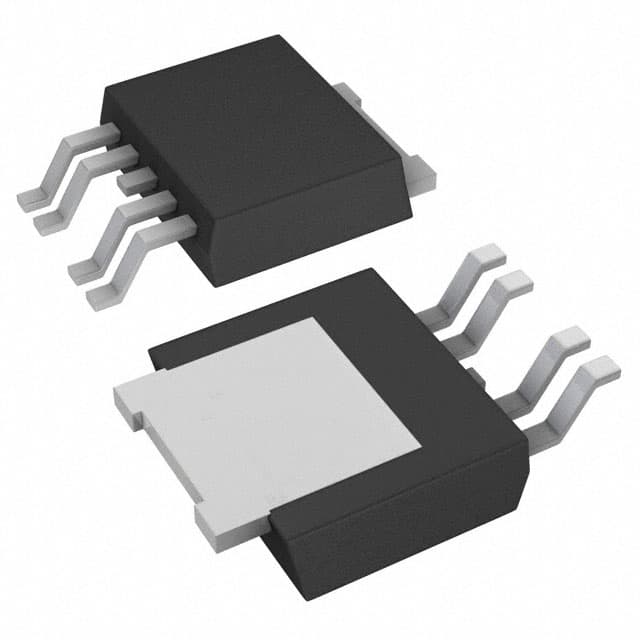

VN751PT13TRIC PWR DRIVER N-CHANNEL 1:1 PPAK |
7,750 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 2.5A | 60mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PPAK |
|
VNQ500PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
26,894 |
|
Datasheet |
12-PowerLSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 400mA | 500mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|

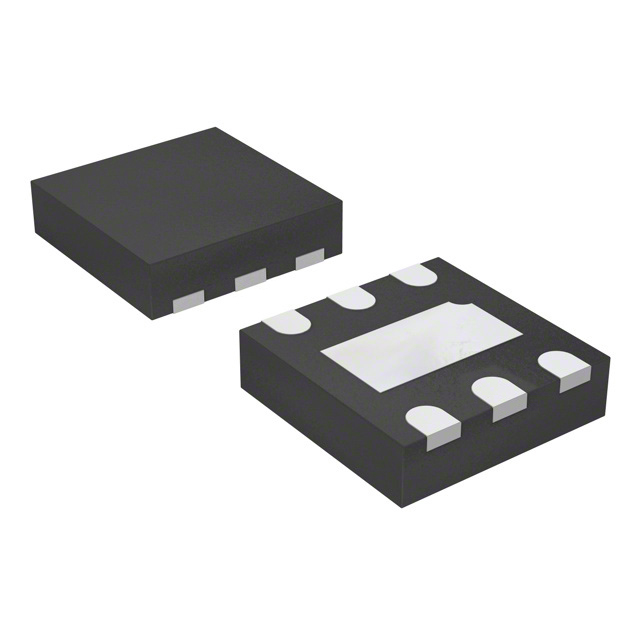

ADP196ACPZN-01-R7IC PWR SWITCH N-CHAN 1:1 6LFCSP |
11,246 |
|
Datasheet |
6-UDFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 3A | 10mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|

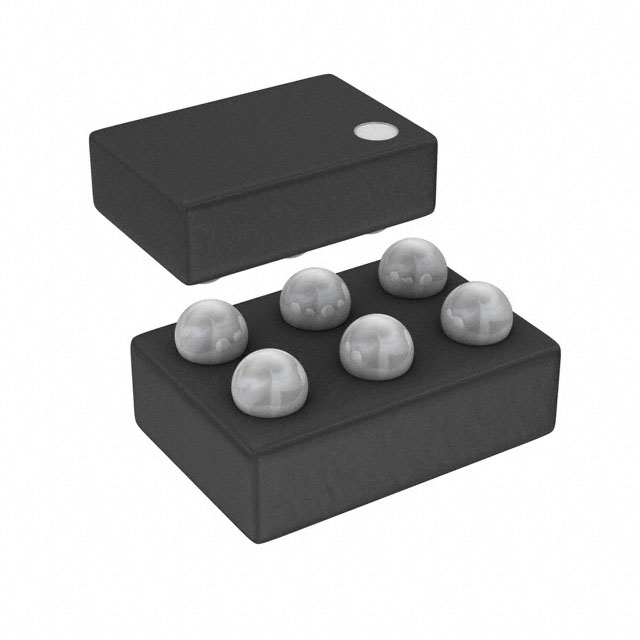

ADP196ACBZ-01-R7IC PWR SWITCH N-CHAN 1:1 6WLCSP |
374 |
|
Datasheet |
6-WFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 3A | 10mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.45x0.95) |
|
ZXMS6006DT8TAIC PWR DRIVER N-CHANNEL 1:1 SM8 |
2,918 |
|
Datasheet |
SOT-223-8 | INTELLIFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | 3.3V, 5V | 2.8A | 75mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SM8 |
|
BTS6142DAUMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
13,806 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 38V | Not Required | 33A | 10mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5-11 |
|

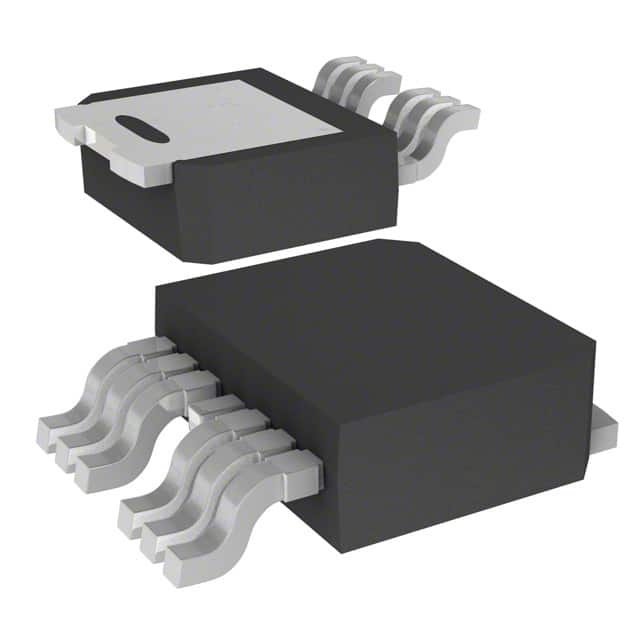

VN5E016AHTR-EIC PWR SWITCH N-CHAN 1:1 6HPAK |
14,744 |
|
Datasheet |
TO-252-7, DPAK (6 Leads + Tab) | VIPower™ | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 54A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-HPAK |
|
|
MIC2043-1YMIC PWR SWITCH N-CHAN 1:1 8SOP |
2,404 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 3A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
BTS6143DAUMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
133,020 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 38V | Not Required | 41A | 8mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5-11 |
|
|
ADP1196ACBZ-02-R7IC PWR SWITCH N-CHAN 1:1 6WLCSP |
22,974 |
|
Datasheet |
6-WFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side or Low Side | N-Channel | On/Off | 1.83V ~ 5.5V | Not Required | 3A | 10mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.45x0.95) |
__2.jpg)
|
VND5N07TR-EIC PWR DRIVER N-CHANNEL 1:1 DPAK |
12,806 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 3.5A | 200mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
VN5016AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
7,580 |
|
Datasheet |
PowerSSO-12 | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 46A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
BTT61002ERAXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
5,264 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 2.2A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-21 |
|
MIC5891YNIC PWR DRIVER BIPOLAR 1:8 16DIP |
2,466 |
|
Datasheet |
16-DIP (0.300", 7.62mm) | - | Tube | Active | Latched Driver | 8 | 1:8 | High Side | Bipolar | Strobe, Serial | 5V ~ 50V | 4.5V ~ 15V | 500mA | - | Non-Inverting | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-DIP |
