Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
__2.jpg)
|
VND10N06TR-EIC PWR DRIVER N-CHANNEL 1:1 DPAK |
18,160 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET™, VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | - | Not Required | 6A | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | DPAK |
|
VN5025AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
15,314 |
|
Datasheet |
12-PowerLSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 28A | 25mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
BSP772TXUMA1IC PWR SWITCH N-CHAN 1:1 PDSO-8 |
16,926 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | miniPROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 2.6A | 50mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8-6 |
|
VN750PTTR-EIC PWR DRIVER N-CHANNEL 1:1 PPAK |
15,388 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PPAK |
|
TPS2044BDRIC PWR SWITCH N-CH 2X1:2 16SOIC |
8,234 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 70mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TPS4H160BQPWPRQ1IC PWR SWTCH N-CHAN 1:1 28HTSSOP |
2,212 |
|
Datasheet |
28-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 40V | Not Required | 2.5A | 165mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 28-HTSSOP |
|
BTS462TATMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
34,958 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | miniPROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 3.5A | 70mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5 |
|

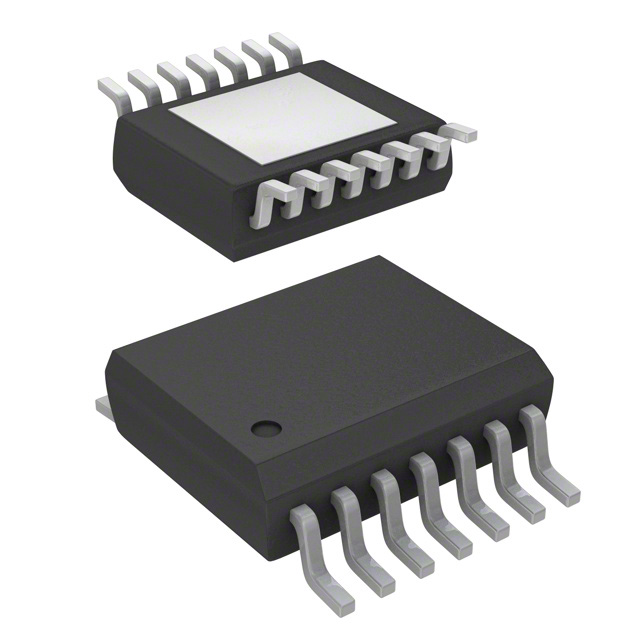

NCV47722PAAJR2GIC PWR SWTCH BIPOLAR 1:1 14TSSOP |
6,688 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | Bipolar | On/Off | 4.4V ~ 40V | Not Required | 250mA | - | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP-EP |
|
TPS274160ARLHR40-V, 160-M, 4-CHANNEL SMART HIG |
6,440 |
|
Datasheet |
28-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 1.35A | 160mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-WQFN (4x5) |
|
TBD62783AFNG,ELIC PWR SWITCH P-CHAN 1:1 18SSOP |
10,058 |
|
Datasheet |
18-LSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 500mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SSOP |
|
BTS3028SDLATMA1IC PWR SWITCH N-CHAN 1:1 TO252-3 |
11,294 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 5A | 28mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
NCV8406BDTRKGIC PWR DRIVER N-CHANNEL 1:1 DPAK |
9,052 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 7A | 185mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
|
VN820PTTR-EIC PWR DRIVER N-CHANNEL 1:1 PPAK |
4,472 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 9A | 40mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PPAK |
|
|
BTS5014SDAAUMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
82,880 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | PROFET® | Tape & Reel (TR) | Last Time Buy | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 20V | Not Required | 6A | 14mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5-11 |
|
NCV8461DR2GIC PWR DRIVER N-CHAN 1:1 8SOIC |
20,582 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 2A | 350mOhm (Max) | CMOS | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
TLE75602ESHXUMA1IC PWR DRVR N-CHAN 1:8 TSDSO-24 |
18,574 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | Slew Rate Controlled | Open Loop, Over Load, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24-21 |
|
BTT60501ERAXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
17,126 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 4.5A | 50mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-11 |
|
BTS70082EPAXUMA1IC PWR SWTCH N-CHAN 1:1 TSDSO-14 |
29,992 |
|
Datasheet |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 7.5A | 9mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-22 |
|
VNQ7140AJTRIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
29,270 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 8A | 140mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VND7NV04TR-EIC PWR DRIVER N-CHANNEL 1:1 DPAK |
27,424 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
