Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPF1321UCXIC PWR SWITCH P-CHAN 2:1 6WLCSP |
41,142 |
|
Datasheet |
6-UFBGA, WLCSP | IntelliMAX™ | Tape & Reel (TR) | Active | General Purpose | 1 | 2:1 | High Side | P-Channel | On/Off | 1.5V ~ 5.5V | Not Required | 1.5A | 42mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (0.96x1.66) |
|
TPS4H000BQPWPRQ1IC PWR SWTCH N-CHAN 1:1 20HTSSOP |
21,546 |
|
Datasheet |
20-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 40V | Not Required | 750mA | 1Ohm | - | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
ADP198ACPZ-R7IC PWR SWITCH P-CHAN 1:1 8LFCSP |
17,122 |
|
Datasheet |
8-UFDFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.65V ~ 6.5V | Not Required | 1A | 75mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-LFCSP-UD (2x2) |
|
BTS452RATMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
4,986 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | miniPROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 52V | Not Required | 1.8A | 150mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5-11 |
|
BSP452HUMA1IC PWR SWTCH N-CHAN 1:1 SOT223-4 |
18,682 |
|
Datasheet |
TO-261-4, TO-261AA | miniPROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 700mA | 160mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|

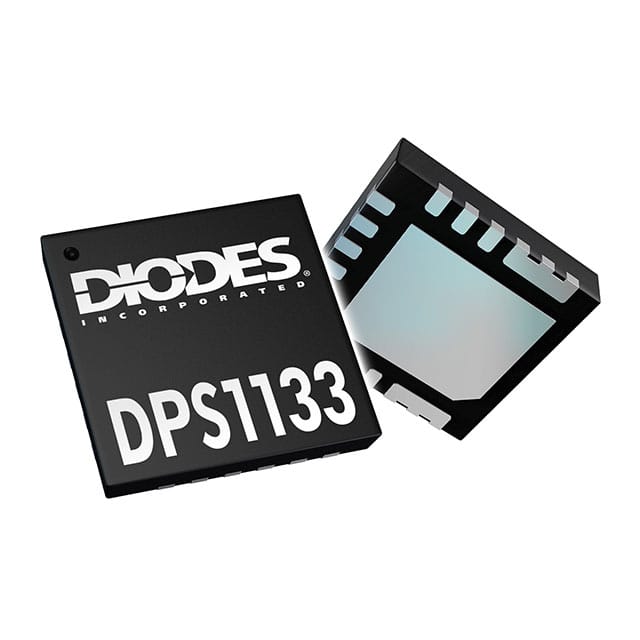

DPS1135FIA-13IC PWR SWITCH N-CH V-QFN4040-17 |
12,142 |
|
Datasheet |
17-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 24V | Not Required | 5A | 30mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | V-QFN4040-17 |
.jpg)
|
TBD62387AFNG,ELIC PWR DRIVER N-CHAN 1:1 20SSOP |
6,142 |
|
Datasheet |
20-LSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | Low Side | N-Channel | On/Off | 0V ~ 50V | 4.5V ~ 5.5V | 500mA | 1.5Ohm | Inverting | - | - | -40°C ~ 85°C | - | - | Surface Mount | 20-SSOP |
|

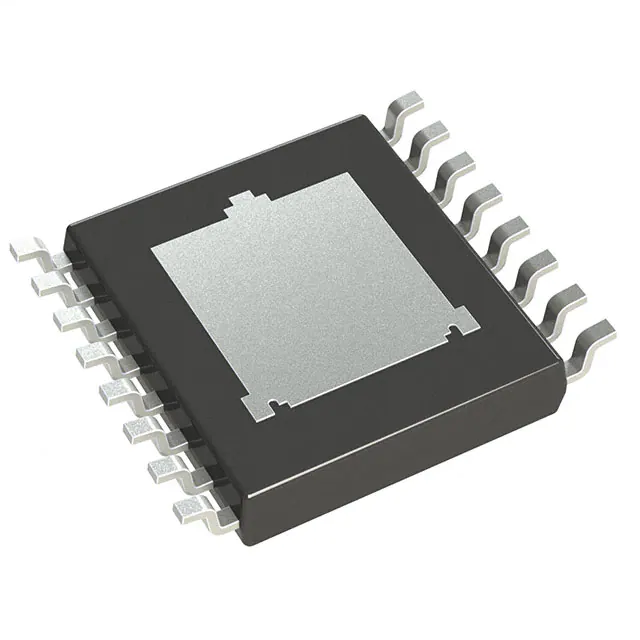

TPS2HB16AQPWPRQ1HYDRA 16 MOHM OTP A |
2,196 |
|
Datasheet |
16-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 28V | Not Required | 60A | 16mOhm | - | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
VN5050AJTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
13,312 |
|
Datasheet |
PowerSSO-12 | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 12A | 50mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
NCV8402ADDR2GIC PWR DRIVER N-CHAN 1:1 8SOIC |
58,044 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -55°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|

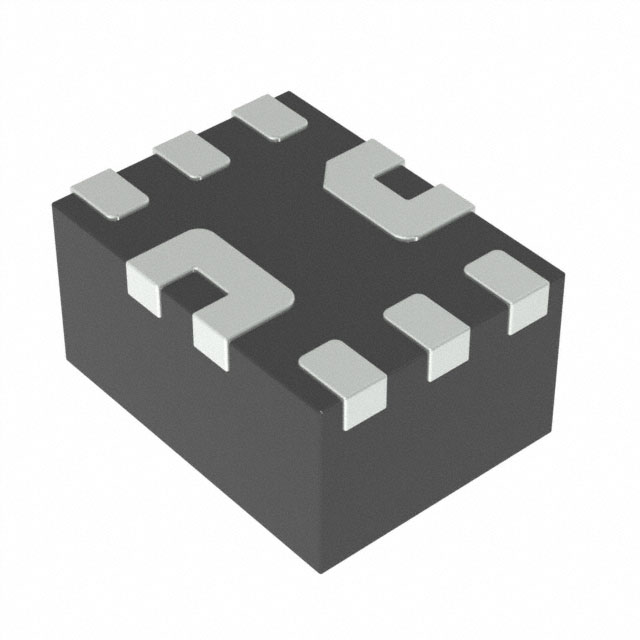

MP5016GQH-ZIC PWR LMT SWITCH N-CH 1:1 10QFN |
19,724 |
|
Datasheet |
10-PowerVFQFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 15V | 2.7V ~ 15V | 5A | 43mOhm | - | Slew Rate Controlled | Over Current, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (1.5x2) |
|
MIC5800YM-TRIC PWR DRIVER BIPOLAR 1:1 14SOIC |
9,538 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Latched Driver | 4 | 1:1 | Low Side | Bipolar | Strobe, Parallel | 50V (Max) | - | 500mA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
AOZ13987DI-0223V USB IDEAL DIODE SWITCH |
112,030 |
|
Datasheet |
12-VFDFN Exposed Pad | ECPower™ | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 22V | Not Required | 8A | 20mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DFN (3x3) |
|

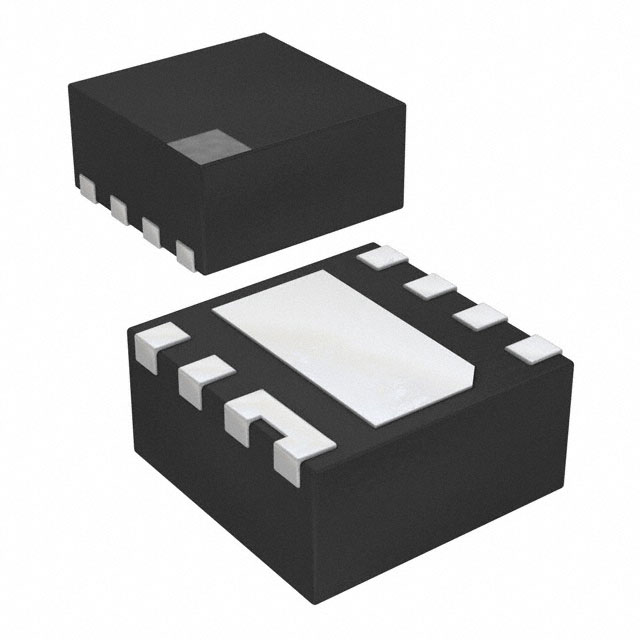

NCP45521IMNTWG-HIC PWR SWITCH N-CHAN 1:1 8DFN |
71,040 |
|
Datasheet |
8-VFDFN Exposed Pad | ecoSWITCH™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 13.5V | 3V ~ 5.5V | 10.5A | 12.8mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
NCP45520IMNTWG-LIC PWR SWITCH N-CHAN 1:1 8DFN |
32,528 |
|
Datasheet |
8-VFDFN Exposed Pad | ecoSWITCH™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 13.5V | 3V ~ 5.5V | 10.5A | 12.8mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
NCP45520IMNTWG-HIC PWR SWITCH N-CHAN 1:1 8DFN |
31,662 |
|
Datasheet |
8-VFDFN Exposed Pad | ecoSWITCH™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 13.5V | 3V ~ 5.5V | 10.5A | 12.8mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (2x2) |
|
BSP762TXUMA1IC PWR SWITCH N-CHAN 1:1 PDSO-8 |
31,576 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | miniPROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 2A | 70mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8-6 |
|
|
BTS4141NHUMA1IC PWR SWTCH N-CHAN 1:1 SOT223-4 |
14,874 |
|
Datasheet |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 12V ~ 45V | Not Required | 700mA | 150mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|

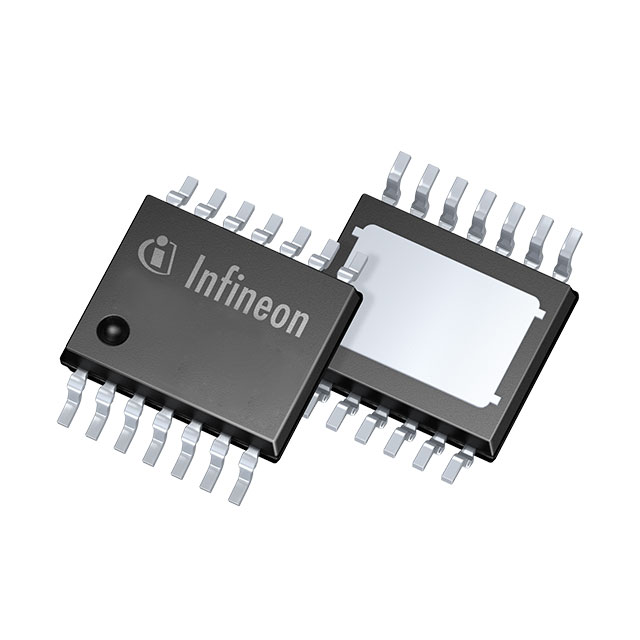

BTS70122EPAXUMA1IC PWR SWTCH N-CHAN 1:1 TSDSO-14 |
14,954 |
|
Datasheet |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 6A | 11.5mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-22 |
|
TPS27S100BPWPRIC PWR DRVR N-CHAN 1:1 14HTSSOP |
9,166 |
|
Datasheet |
14-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 1 | 1:1 | High Side | N-Channel | Logic | 40V | Not Required | 13A | 80mOhm | Non-Inverting | Shutdown | Over Load, Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-HTSSOP |
