Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E-L9338MDIC PWR DRIVER N-CHANNEL 1:1 20SO |
1,982 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 4.5V ~ 32V | Not Required | - | 1.7Ohm | Non-Inverting | - | Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
BTS700201ESPXUMA2PROFET PG-TSDSO-24 |
3,810 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 1 | 1:1 | High Side | N-Channel | - | 4.1V ~ 28V | 4.1V ~ 28V | 23.2A | 2.3mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, Reverse Battery, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSO-24-32 |
|
TPS2041BMDBVTEPIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
5,286 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 70mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS48111LQDGXRQ1AUTOMOTIVE 3.5-V TO 80-V HIGH SI |
5,802 |
|
Datasheet |
20-TFSOP (0.118", 3.00mm Width), 19 Leads | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | - | 3.5V ~ 80V | 4A | - | Differential | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Voltage, Reverse Battery, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 19-VSSOP |
|
MIC2981/82YWM-TRIC PWR DRIVER BIPOLAR 1:1 18SOP |
2,858 |
|
Datasheet |
18-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | Bipolar | On/Off | 5 ~ 50V | Not Required | 500mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOP (Wide) |
|

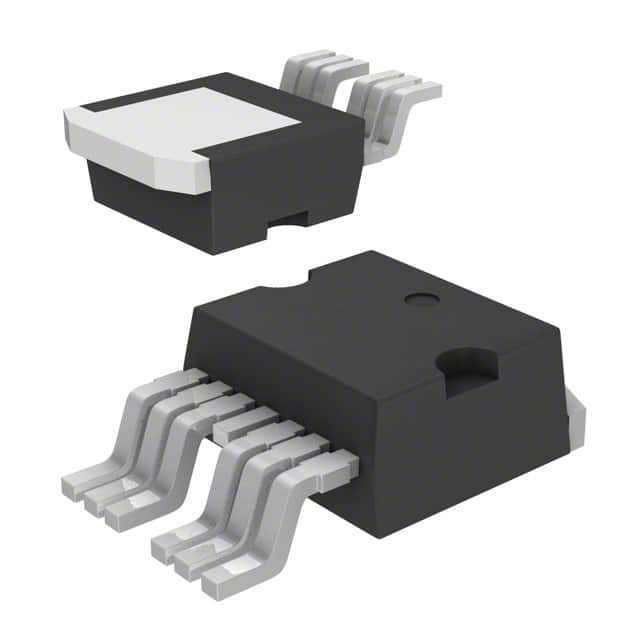

VN5T016AHTR-EIC PWR DRIVER N-CHANNEL 1:1 HPAK |
7,476 |
|
Datasheet |
TO-252-7, DPAK (6 Leads + Tab) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 43A | 16mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | HPAK |
|
BTT60101ERAXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
8,840 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 9A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-11 |
|
E-L9823013TRIC PWR DRIVER N-CHANNEL 1:8 24SO |
47,872 |
|
Datasheet |
24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | 500mA | 800mOhm | - | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SO |
|
BTT3018EJXUMA1BTT3018EJXUMA1 |
3,160 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 36V | 3V ~ 5.5V | 7A | 16mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TDSO-8-31 |
|
ITS4130QEPDXUMA1IC PWR SWTCH N-CHAN 1:1 TSDSO-14 |
26,192 |
|
Datasheet |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 650mA | 130mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSO-14 |
|
BTT60302ERAXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
16,098 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 4A | 32mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-31 |
|
L6375SIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,120 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 35V | Not Required | 500mA | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -25°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ITS716GFUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
9,462 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 40V | Not Required | 2.3A | 110mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Surface Mount | PG-DSO-20-32 |
|
|
BTS4130QGAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
72,316 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 20V | Not Required | 2.1A | 130mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-32 |
|
|
RJE0605JPD-00#J3ABU / MOSFET |
11,380 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | - | P-Channel | On/Off | -3.5V ~ -12V | Not Required | 10A | 75mOhm | Non-Inverting | Latch Function | Current Limiting (Fixed), Over Temperature | 150°C | - | - | Surface Mount | DPAK-3 |
|
BTS500601TEAAUMA2IC PWR SWITCH P-CHAN 1:1 TO252-5 |
9,630 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 6V ~ 19V | Not Required | 16.5A | 6.8mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5-11 |
|
MIC5842YNIC PWR DRIVER BIPOLAR 1:8 18DIP |
1,926 |
|
Datasheet |
18-DIP (0.300", 7.62mm) | - | Tube | Active | Latched Driver | 8 | 1:8 | Low Side | Bipolar | Strobe, Serial | 15V (Max) | - | 500mA | - | Non-Inverting | - | - | -55°C ~ 85°C (TA) | - | - | Through Hole | 18-DIP |
|
|
ITS724GFUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
20,268 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 40V | Not Required | 3A | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Surface Mount | PG-DSO-20-32 |
|
VN7003AHTRIC PWR SWITCH N-CHAN 1:1 OCTAPAK |
7,458 |
|
Datasheet |
OctaPAK (7 leads + Tab) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 80A | 3.5mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | OctaPAK 7+1 |
|
DRV103H/2K5IC PWR DRVR N-CHAN 1:1 8SOPWRPAD |
4,812 |
|
Datasheet |
8-PowerSOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 1 | 1:1 | Low Side | N-Channel | On/Off | 8V ~ 32V | Not Required | 3A | - | Non-Inverting | Internal PWM, Status Flag | Current Limiting (Fixed), Over Temperature | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-SO PowerPad |
