IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS25R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
7,950 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FP15R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
8,758 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|

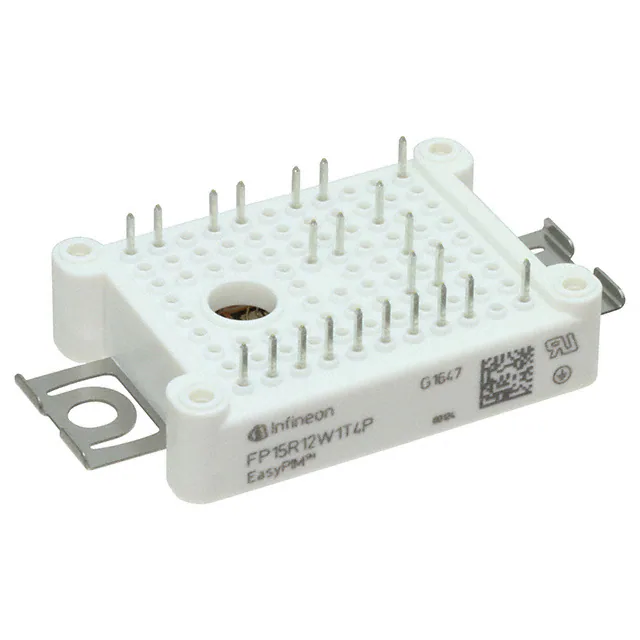

FP15R12W1T4PBPSA1IGBT MOD 1200V 30A 20MW |
2,678 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | - | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP15R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-1 |
2,842 |
|
- |
EasyPIM™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
FP25R12W1T7B11BPSA1IGBT MODULE 1200V 25A 20MW EASY |
8,146 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A (Typ) | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C | Chassis Mount | AG-EASY1B-2 |
|
|
FP25R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9,232 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
F3L75R12W1H3B27BOMA1IGBT MOD 1200V 45A 275W |
3,638 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 45 A | 275 W | 1.7V @ 15V, 30A | 1 mA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
VS-ENM040M60PPOWER MODULE |
6,740 |
|
- |
* | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP25R12W2T7B11BPSA1LOW POWER EASY |
8,668 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
FP25R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-711 |
2,858 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FS75R17W2E4PB11BPSA1LOW POWER EASY |
2,722 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 45 A | - | 2.3V @ 15V, 75A | 35 µA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9,938 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | - | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|
DF150R12W1H3FB11BOMA1IGBT MODULE LOW POWER EASY |
7,842 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12W2T7B11BOMA1LOW POWER EASY |
2,906 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
|
NXH100B120H3Q0PGPIM 60-80KW Q0BOOST-L57 1200V, 1 |
3,466 |
|
- |
- | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 61 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM (55x32.5) |
|
|
NXH100B120H3Q0PTGIGBT MODULE 1200V 50A 186W 22PIM |
6,246 |
|
- |
- | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 50 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM (55x32.5) |
|
|
NXH100B120H3Q0SGPIM 60-80KW Q0BOOST-L57 1200V, 1 |
4,160 |
|
- |
- | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 61 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM/Q0BOOST (55x32.5) |
|
FS75R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9,320 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | - | - | 13 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
VS-ENK025C65SPOWER MODULE |
4,828 |
|
- |
* | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F3L75R07W2E3B11BOMA1IGBT MODULE 650V 95A 250W |
8,168 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
