IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT70GR120JD60IGBT MOD 1200V 112A 543W SOT227 |
7,160 |
|
- |
- | SOT-227-4 | Tube | Active | NPT | Single | 1200 V | 112 A | 543 W | 3.2V @ 15V, 70A | 1.1 mA | 7.26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT150GN60JDQ4IGBT MOD 600V 220A 536W ISOTOP |
6,520 |
|
- |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 220 A | 536 W | 1.85V @ 15V, 150A | 50 µA | 9.2 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
FS25R12W1T4BOMA1IGBT MOD 1200V 45A 205W |
8,740 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 45 A | 205 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
DDB6U75N16W1RBOMA1IGBT MOD 1200V 69A 335W |
4,962 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 69 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP15R12W1T4B3BOMA1IGBT MOD 1200V 28A 130W |
2,836 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 28 A | 130 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP10R12W1T4B11BOMA1IGBT MOD 1200V 20A 105W |
4,872 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 20 A | 105 W | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
IXA60IF1200NAIGBT MOD 1200V 88A 290W SOT227B |
3,478 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 1200 V | 88 A | 290 W | 2.1V @ 15V, 50A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis, Stud Mount | SOT-227B |
|
|
FP15R12W1T4B11BOMA1IGBT MOD 1200V 28A 130W |
6,636 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 28 A | 130 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS50R12W2T4BOMA1IGBT MOD 1200V 83A 335W |
6,258 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS50R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
2,624 |
|
- |
- | Module | Tray | Active | - | - | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | - | No | -40°C ~ 175°C | Chassis Mount | Module |
|
FS50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
7,846 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
FP50R06W2E3BOMA1IGBT MODULE 600V 65A 175W |
2,176 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 65 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APT100GT120JRDQ4IGBT MOD 1200V 123A 570W ISOTOP |
3,770 |
|
- |
Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 1200 V | 123 A | 570 W | 3.7V @ 15V, 100A | 200 µA | 7.85 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FP35R12W2T4BOMA1IGBT MOD 1200V 54A 215W |
3,440 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 54 A | 215 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP50R12W2T7B11BOMA1LOW POWER EASY |
7,484 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
|
APT150GN120JDQ4IGBT MOD 1200V 215A 625W ISOTOP |
9,850 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 215 A | 625 W | 2.1V @ 15V, 150A | 300 µA | 9.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FS75R12W2T4B11BOMA1IGBT MOD 1200V 107A 375W |
3,300 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
.jpg)
|
MIXA20WB1200TEDIGBT MODULE 1200V 28A 100W E2 |
2,698 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 28 A | 100 W | 2.1V @ 15V, 16A | 1.5 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
MIXA61H1200EDIGBT MODULE 1200V 85A 290W E2 |
2,392 |
|
- |
- | E2 | Box | Active | PT | Full Bridge Inverter | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|

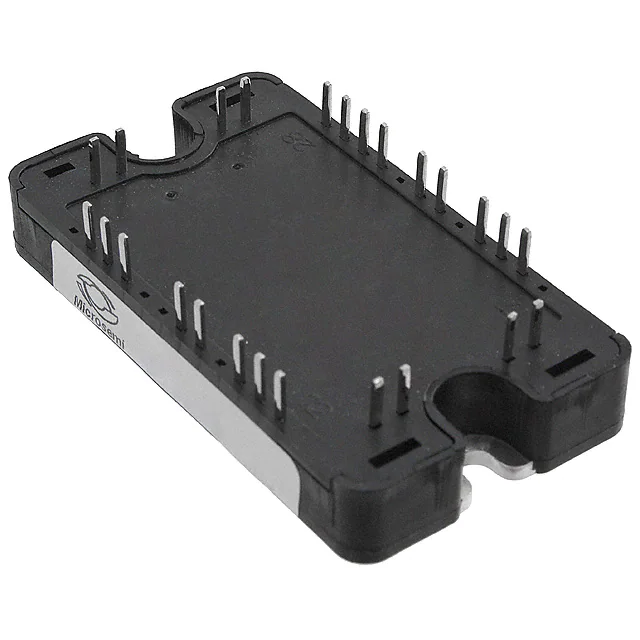

APTGT50H60T3GIGBT MODULE 600V 80A 176W SP3 |
8,244 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
