IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ1200R12HE4HOSA2IGBT MODULE 1200V 1200A |
6,008 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1200 V | 1825 A | 7150 W | 2.1V @ 15V, 1.2kA | 5 mA | 74 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FS380R12A6T4BBPSA1IGBT MODULE 1200V 380A |
8,816 |
|
- |
HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 380 A | 870 W | 1.95V @ 15V, 250A | 1 mA | 19 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-HYBRIDD-2 |
|
FF1400R12IP4BOSA1IGBT MODULE 1200V 1400A |
6,916 |
|
- |
PrimePACK™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1400 A | 765000 W | 2.05V @ 15V, 1400A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF1400R12IP4PBOSA1IGBT MODULE 1200V 1400A |
3,542 |
|
- |
PrimePACK™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1400 A | 1400000 W | 2.05V @ 15V, 1400A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF3MR20KM1HHPSA1MEDIUM POWER 62MM |
6,570 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | 2000 V | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-62MMHB |
|
|
FF1800XTR17T2P5BPSA1XHP LV |
7,620 |
|
- |
XHP™2 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 1800 A | 1800000 W | 2.25V @ 15V, 1.8kA | 10 mA | 84000 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
VS-GT90DA120USOT-227 - SINGLE SWITCH IGBT + A |
5,764 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 169 A | 781 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
IXXN200N60B3IGBT MOD 600V 280A 940W SOT227B |
4,746 |
|
- |
XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 280 A | 940 W | 1.7V @ 15V, 100A | 50 µA | 9.97 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
FS50R06W1E3BOMA1IGBT MODULE 600V 70A 205W |
5,828 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 70 A | 205 W | 1.9V @ 15V, 50A | 1 mA | 95 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP10R12W1T4BOMA1IGBT MOD 1200V 20A 105W |
4,834 |
|
- |
EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 20 A | 105 W | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS35R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
6,504 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7.3 µA | 6.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
APT75GP120JIGBT MOD 1200V 128A 543W ISOTOP |
5,454 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 128 A | 543 W | 3.9V @ 15V, 75A | 1 mA | 7.04 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT200GN60JDQ4IGBT MOD 600V 283A 682W ISOTOP |
5,972 |
|
- |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 50 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
FS50R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
4,890 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|

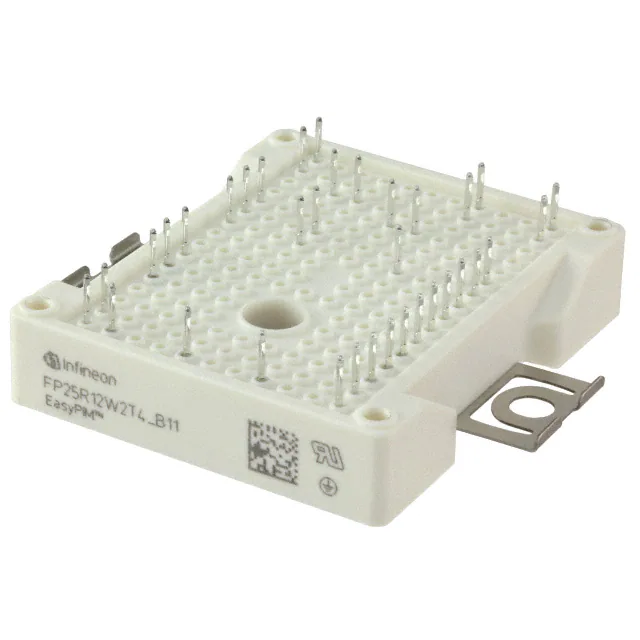

FP25R12W2T4B11BOMA1IGBT MOD 1200V 39A 175W |
7,120 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 175 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9,756 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | - | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12KT4BPSA1LOW POWER ECONO |
2,760 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 210 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
|
FP35R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2,830 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP50R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
3,856 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP50R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
7,122 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.25V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
