IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIXA40WB1200TEDIGBT MODULE 1200V 60A 195W E2 |
2,244 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 60 A | 195 W | 2.1V @ 15V, 35A | 2.1 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
FP25R12KT3BPSA1LOW POWER ECONO |
7,718 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 40 A | 105 W | 2.15V @ 15V, 25A | 5 mA | 1.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
FP75R12KT4B15BOSA1IGBT MOD 1200V 75A 385W |
2,602 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

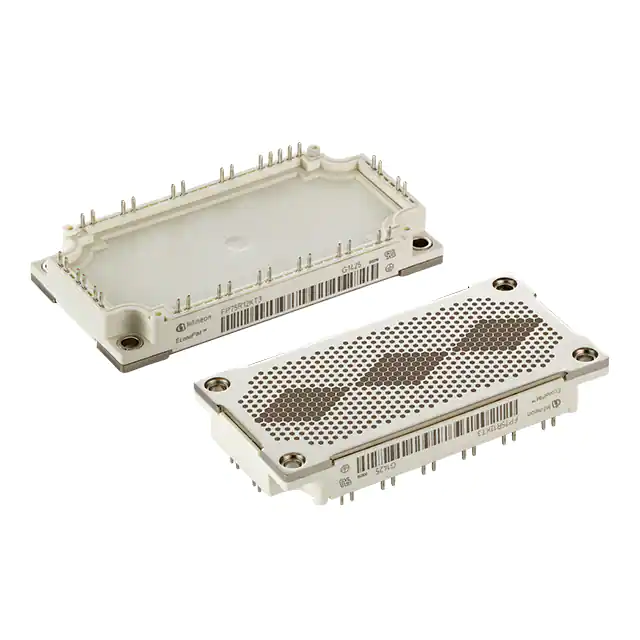

FP75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
3,496 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS75R12N2T7B15BPSA2LOW POWER ECONO |
7,912 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF400R07KE4HOSA1IGBT MODULE 650V 1250W |
3,934 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | - | 1250 W | 1.95V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L200R12W2H3B11BPSA1IGBT MOD 1200V 100A 600W |
7,528 |
|
- |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 100 A | 600 W | 1.75V @ 15V, 100A | 1 mA | 11.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 |
4,710 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF300R12ME7B11BPSA1MEDIUM POWER ECONO, AG-ECONOD-74 |
7,278 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 300 A | - | 1.75V @ 15V, 300A | 20 µA | 46 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|

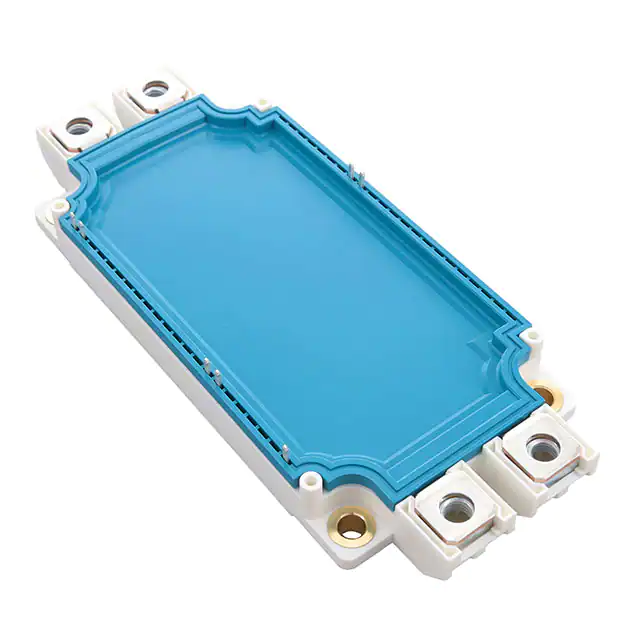

MIXA300PF1200TSFIGBT MOD 1200V 465A 1500W |
3,044 |
|
- |
- | Module | Box | Active | PT | Half Bridge | 1200 V | 465 A | 1500 W | 2.1V @ 15V, 300A | 300 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS3L100R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 |
5,072 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 1.38V @ 15V, 50A | 7 µA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
FZ400R12KE3HOSA1IGBT MOD 1200V 650A 2250W |
5,582 |
|
- |
- | Module | Tray | Active | - | Single | 1200 V | 650 A | 2250 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FD300R12KE3HOSA1IGBT MOD 1200V 480A 1470W |
6,592 |
|
- |
- | Module | Tray | Active | - | Single | 1200 V | 480 A | 1470 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FS75R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
5,142 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP100R12KT4BOSA1IGBT MOD 1200V 100A 515W |
7,038 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-4 |
9,120 |
|
- |
EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.8V @ 15V, 200A | 16 µA | 40.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
|
FS100R06KE3BOSA1IGBT MOD 600V 100A 335W |
9,000 |
|
- |
EconoPACK™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 335 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS200R07PE4BOSA1IGBT MOD 650V 200A 600W |
7,034 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 200 A | 600 W | 1.95V @ 15V, 200A | 1 mA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-3 |
2,024 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.55V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FF600R12KE4EBOSA1IGBT MODULE 1200V 600A |
9,122 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
