IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP15R12KT3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
6,232 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.45V @ 15V, 10A | 5 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2C |
|
DDB6U104N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 |
8,758 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 50 A | - | 2.8V @ 15V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
DDB6U134N16RRB80BPSA1LOW POWER ECONO AG-ECONO2B-8231 |
8,168 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS35R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
7,790 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DDB6U180N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-411 |
3,314 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 140 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FF225R17ME7B11BPSA1ECONODUAL3 MODULE WITH TRENCHSTO |
2,750 |
|
- |
EconoDUAL™ 3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 225 A | - | 1.85V @ 15V, 225A | 5 mA | 22.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FS50R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
3,190 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
NXH200B100H4F2SG1500V F2 BOOST FOR SOLAR PIM |
7,550 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1000 V | 100 A | 93 W | 2.4V @ 15V, 100A | 200 µA | 6.523 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 36-PIM (56.7x48) |
|

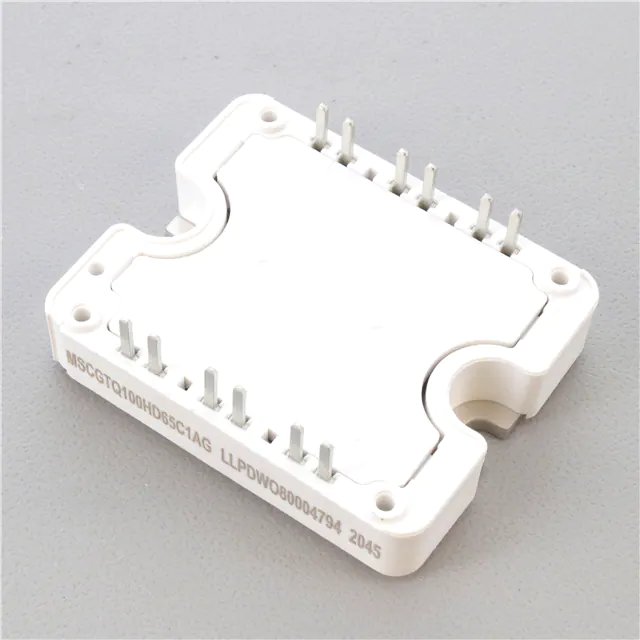

MSCGTQ100HD65C1AGPM-IGBT-TFS-SBD~-SP1F |
5,682 |
|
- |
MSC | Module | Tube | Active | Trench | Half Bridge | 650 V | 80 A | - | - | 80 A | - | Standard | No | - | Chassis Mount | SP1 |
|
|
FS150R12N2T7B54BPSA1LOW POWER ECONO |
9,048 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
F1225R12KT4GBOSA1IGBT MOD 1200V 25A 160W |
7,092 |
|
- |
EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KT3BOSA1IGBT MOD 1200V 200A 700W |
5,606 |
|
- |
EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS75R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
5,640 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FS75R17KE3BOSA1IGBT MOD 1700V 130A 465W |
4,758 |
|
- |
- | Module | Tray | Active | - | Full Bridge | 1700 V | 130 A | 465 W | 2.45V @ 15V, 75A | 5 mA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

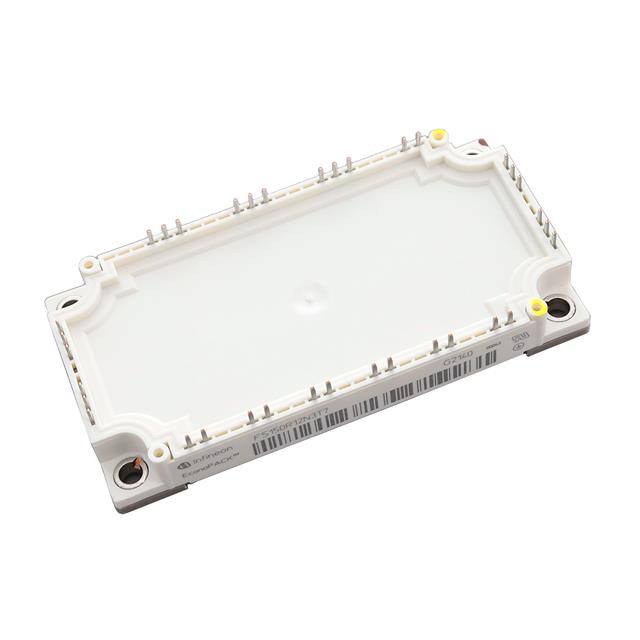

FS150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2,426 |
|
- |
EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
FP100R12N3T7B11BPSA1LOW POWER ECONO AG-ECONO3B-711 |
9,080 |
|
- |
EconoPIM™ 3 | - | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | - | - | Standard | No | - | - | - |
|
|
FS100R17N3E4BOSA1IGBT MOD 1700V 100A 600W |
8,544 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 100 A | 600 W | 2.3V @ 15V, 100A | 1 mA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXA450PF1200TSFIGBT MOD 1200V 650A 2100W |
6,042 |
|
- |
- | Module | Box | Active | PT | Half Bridge | 1200 V | 650 A | 2100 W | 2.15V @ 15V, 450A | 1 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F4200R12N3H3FB11BPSA1LOW POWER ECONO AG-ECONO3B-411 |
3,784 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FF200R12KS4PHOSA1IGBT MOD 1200V 275A 1400W |
5,950 |
|
- |
- | Module | Tray | Active | - | Half Bridge | 1200 V | 275 A | 1400 W | 3.7V @ 15V, 200A | 5 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
