IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R17ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-311 |
13,008 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
IFT150B12N3E4BOSA1MOD IGBT LOW PWR ECONO |
18,814 |
|
- |
MIPAQ™ | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MG12400D-BN2MMIGBT MODULE 1200V 580A 1925W D3 |
19,046 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 580 A | 1925 W | 1.7V @ 15V, 400A (Typ) | 2 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D3 |
|
CM150RX-24SIGBT MOD 1200V 150A 1150W |
18,792 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 150 A | 1150 W | 2.15V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HA-12HIGBT MOD 600V 600A 2100W |
16,818 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 600 A | 2100 W | 2.8V @ 15V, 600A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTGT100DU170TGIGBT MODULE 1700V 150A 560W SP4 |
7,718 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

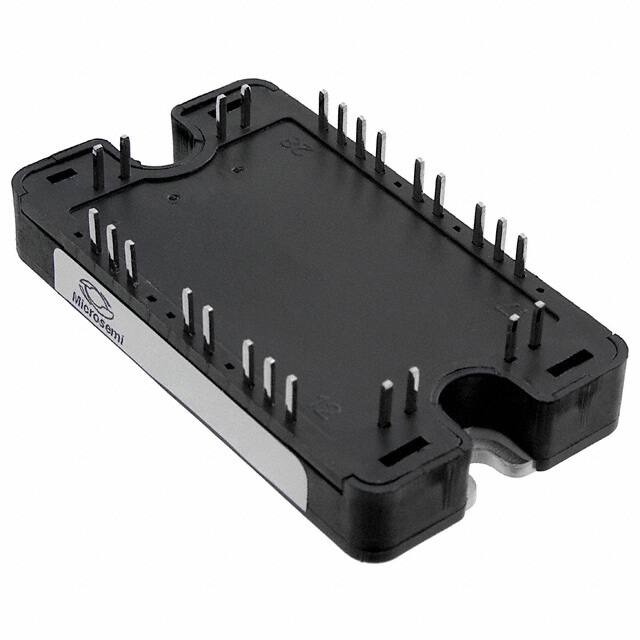

APTGT100A170TGIGBT MODULE 1700V 150A 560W SP4 |
16,138 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
MG12600WB-BR2MMIGBT MODULE 1200V 750A 2500W WB |
8,600 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 750 A | 2500 W | 2.5V @ 15V, 600A | 100 µA | 60.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | WB |
|
|
CM30TF-24HIGBT MOD 1200V 30A 310W |
5,536 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 30 A | 310 W | 3.4V @ 15V, 30A | 1 mA | 6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

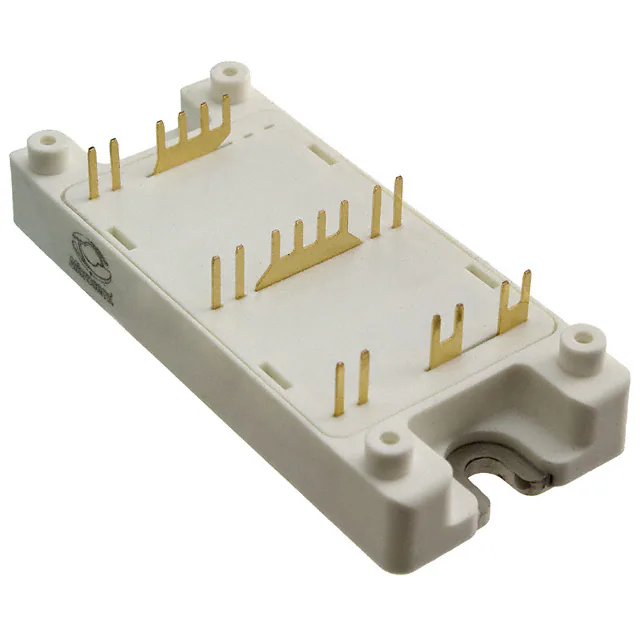

APTGT300A60TGIGBT MODULE 600V 430A 935W SP4 |
7,266 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 430 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
NXH600B100H4Q2F2PGMASS MARKET GEN3 Q2BOOST WITH PR |
15,720 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1 kV | 192 A | 511 W | 2.3V @ 15V, 200A | 10 µA | 13256 pF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 44-PIM (93x47) |
|
|
APTGT450DU60GIGBT MODULE 600V 550A 1750W SP6 |
4,804 |
|
- |
- | SP6 | Bulk | Obsolete | Trench Field Stop | Dual, Common Source | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGT150DU120TGIGBT MODULE 1200V 220A 690W SP4 |
4,864 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150A120TGIGBT MODULE 1200V 220A 690W SP4 |
5,908 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
CM600HA-5FIGBT MOD 250V 600A 960W |
10,950 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 250 V | 600 A | 960 W | 1.7V @ 10V, 600A | 1 mA | 165 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MDI550-12A4IGBT MOD 1200V 670A 2750W Y3DCB |
17,028 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Single | 1200 V | 670 A | 2750 W | 2.8V @ 15V, 400A | 21 mA | 26 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
MID550-12A4IGBT MOD 1200V 670A 2750W Y3DCB |
16,290 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Single | 1200 V | 670 A | 2750 W | 2.8V @ 15V, 400A | 21 mA | 26 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
MG150J7KS61IGBT MOD 600V 150A 750W |
10,370 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 150 A | 750 W | 2.3V @ 15V, 150A | 1 mA | 30 nF @ 10 V | Standard | Yes | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DU-12NFHIGBT MOD 600V 400A 960W |
14,978 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 960 W | 2.7V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MII300-12A4IGBT MOD 1200V 330A 1380W Y3DCB |
7,778 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Half Bridge | 1200 V | 330 A | 1380 W | 2.7V @ 15V, 200A | 13 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y3-DCB |
