IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH600N100L4F5PG15709 F5 INVENTER WITH BASEPLATE |
6,070 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM400DU-12FIGBT MOD 600V 400A 960W |
10,220 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 400 A | 960 W | 2.2V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F4100R17ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-311 |
12,884 |
|
- |
EconoDUAL™ 3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Full Bridge Inverter | 1700 V | 155 A | - | 2.3V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-6 |
|
|
MIXG450PF1700TSFIGBT MODULE - PHASELEG SIMBUS F- |
13,768 |
|
- |
- | SimBus F | Box | Active | PT | Single | - | - | - | - | - | - | Standard | No | - | Chassis Mount | SimBus F |
|
CM300DY-24NFIGBT MOD 1200V 300A 1130W |
10,186 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1130 W | 2.5V @ 15V, 300A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DY-24AIGBT MOD 1200V 400A 2710W |
5,624 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 2710 W | 3V @ 15V, 400A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IFF600B12ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 |
9,564 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-5 |
|
|
MWI100-12A8IGBT MODULE 1200V 160A 640W E3 |
10,952 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 160 A | 640 W | 2.6V @ 15V, 100A | 6.3 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MIXG240W1200PTEHIGBT MODULE - SIXPACK E3-PACK-PF |
6,064 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 312 A | 938 W | 2V @ 15V, 200A | 150 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
|
MIXG240W1200TEHIGBT MODULE - SIXPACK E3-PACK-PF |
9,470 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 370 A | 1250 W | 2V @ 15V, 200A | 200 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
MG12150W-XN2MMIGBT MOD 1200V 200A 625W |
9,156 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
IFF600B12ME4S8PB11BOSA1IGBT MOD 1200V 600A 20MW ECONO |
13,370 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | - | Standard | Yes | -40°C ~ 150°C | Chassis Mount | AG-ECONOD-5 |
|
|
APTGT200DH60GIGBT MODULE 600V 290A 625W SP6 |
19,382 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200DA120D3GIGBT MODULE 1200V 300A 1050W D3 |
4,802 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 300 A | 1050 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
MIXG240W1200PT-PCIGBT MODULE MIXG240W1200PTEH-PC |
9,864 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

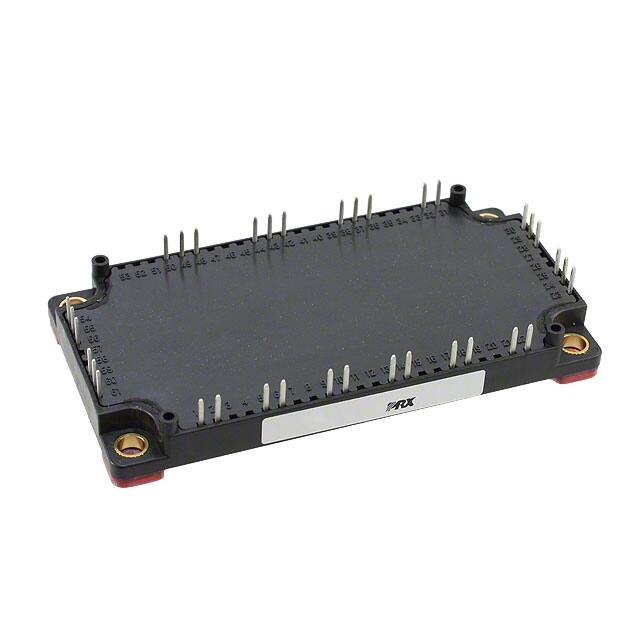

CM150TX-24SIGBT MOD 1200V 150A 1150W |
14,916 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 150 A | 1150 W | 2.15V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG300Q2YS60AIGBT MOD 1200V 300A 2800W |
8,986 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 2800 W | 2.8V @ 15V, 300A | 1 mA | 21 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|

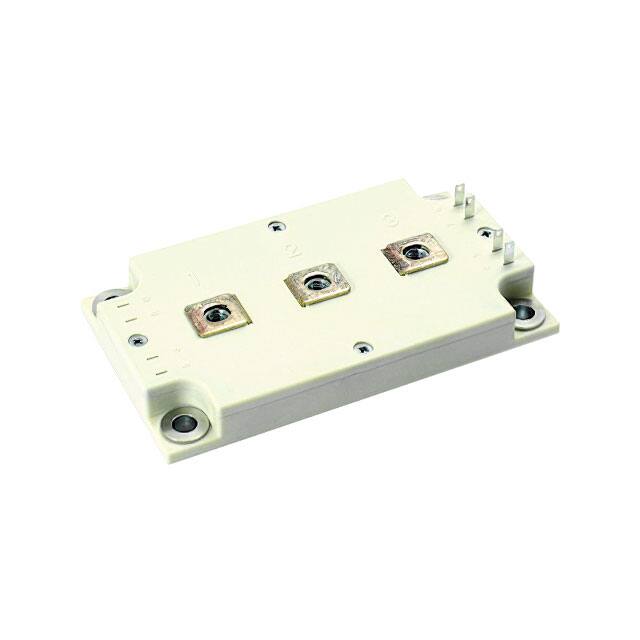

VS-GT400TD60SIGBT MOD 600V 758A INT-A-PAK |
12,182 |
|
- |
FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 711 A | 1364 W | 1.4V @ 15V, 400A | 300 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
FP200R12N3T7B80BPSA1LOW POWER ECONO |
13,954 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.55V @ 15V, 200A | 5 µA | 40.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
|
CM75TU-24HIGBT MOD 1200V 75A 600W |
13,228 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 75 A | 600 W | 3.7V @ 15V, 75A | 1 mA | 11 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
