IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ75H120TGIGBT MODULE 1200V 130A 385W SP4 |
11,060 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 130 A | 385 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|

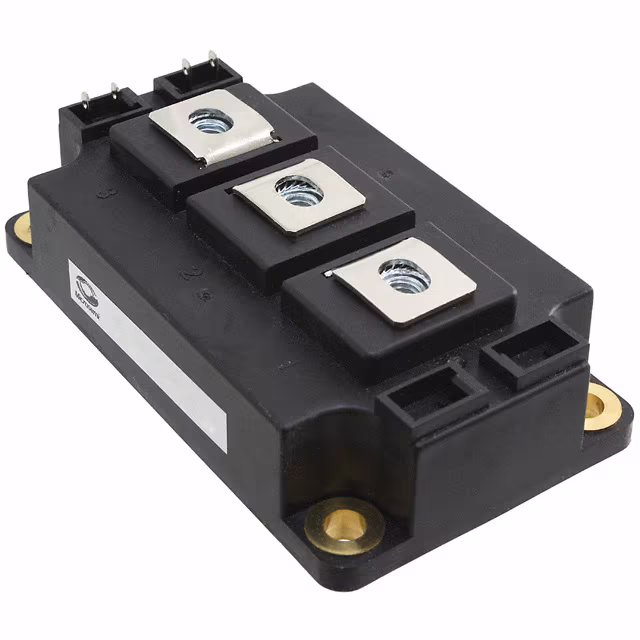

APTGF300A120D3GIGBT MODULE 1200V 420A 2100W D3 |
18,194 |
|
- |
- | D-3 Module | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 420 A | 2100 W | 3.7V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | - | Chassis Mount | D3 |
|
CM400DY-12NFIGBT MOD 600V 400A 1130W |
5,794 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 1130 W | 2.2V @ 15V, 400A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXG180W1200PTEHIGBT MODULE - SIXPACK E3-PACK-PF |
18,388 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIXG180W1200TEHIGBT MODULE - SIXPACK E3-PACK-PF |
6,558 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 280 A | 935 W | 2V @ 15V, 150A | 500 µA | 8.5 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
APTGT150A120T3AGIGBT MODULE 1200V 220A 833W SP3 |
5,626 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 833 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
FF600R12ME4B73BPSA2MEDIUM POWER ECONO AG-ECONOD-411 |
4,462 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
CM400HU-24FIGBT MOD 1200V 400A 1600W |
17,426 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 1200 V | 400 A | 1600 W | 2.4V @ 15V, 400A | 2 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXG490PF1200TSFIGBT MODULE - PHASELEG SIMBUS F- |
5,750 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIXG180W1200PT-PCIGBT MODULE MIXG180W1200PTEH-PC |
4,472 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MG200Q2YS60AIGBT MOD 1200V 200A 2000W |
17,110 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 2000 W | 2.8V @ 15V, 200A | 1 mA | 15 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTGT150DA120GIGBT MODULE 1200V 220A 690W SP6 |
4,138 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
APTGT150SK120GIGBT MODULE 1200V 220A 690W SP6 |
13,358 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
CM150RL-12NFIGBT MOD 600V 150A 730W |
18,378 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 150 A | 730 W | 2.2V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
BSM25GD120DN2BOSA1IGBT MOD 1200V 35A 200W |
15,818 |
|
- |
- | Module | Tray | Obsolete | - | Full Bridge | 1200 V | 35 A | 200 W | 3V @ 15V, 25A | 800 µA | 1.65 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
MIXG300PF1700TSFIGBT MODULE - PHASELEG SIMBUS F- |
19,952 |
|
- |
- | SimBus F | Box | Active | PT | Single | - | - | - | - | - | - | Standard | No | - | Chassis Mount | SimBus F |
|
|
CM150RX-12AIGBT MOD 600V 150A 520W |
16,312 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 600 V | 150 A | 520 W | 2.1V @ 15V, 150A | 1 mA | 18 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT300DA60D3GIGBT MODULE 600V 400A 940W D3 |
17,700 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 500 µA | 18.5 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
APTGT300SK60D3GIGBT MODULE 600V 400A 940W D3 |
19,568 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 500 µA | 18.5 nF @ 25 V | Standard | No | - | Chassis Mount | D3 |
|
|
MIF600R12E3TL-BPIGBT MODULES,E3 |
8,742 |
|
- |
- | Module | Bulk | Active | - | Half Bridge | 1200 V | 600 A | 3.26 kW | 1.5V @ 15V, 600A | 1 mA | 44000 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
