IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

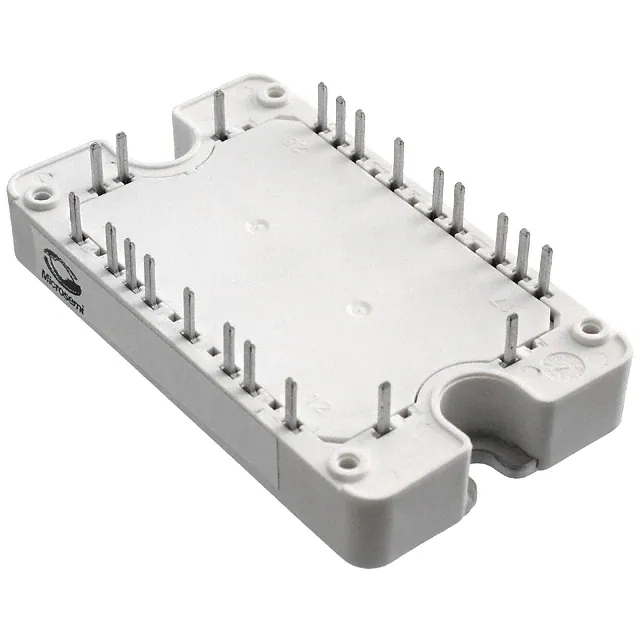

APTCV60HM45BC20T3GIGBT MODULE 600V 50A 250W SP3 |
7,376 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
CM300DU-12FIGBT MOD 600V 300A 830W |
6,346 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 300 A | 830 W | 2.2V @ 15V, 300A | 1 mA | 81 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM600HU-12FIGBT MOD 600V 600A 1420W |
5,600 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 600 V | 600 A | 1420 W | 2.2V @ 15V, 600A | 1 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MKI100-12F8IGBT MODULE 1200V 125A 640W E3 |
4,966 |
|
- |
- | E3 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 125 A | 640 W | 3.9V @ 15V, 100A | 1.3 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
FF600R12KE7PHPSA1MEDIUM POWER 62MM |
4,026 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 1.75V @ 15V, 600A | 100 µA | 92300 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
FF600R12KE7PEHPSA1MEDIUM POWER 62MM |
17,238 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 1.75V @ 15V, 600A | 100 µA | 92300 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
CM300DY-24SIGBT MOD 1200V 300A 2270W |
6,110 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
MG06400D-BN4MMIGBT MODULE 600V 400A 1250W D3 |
6,836 |
|
- |
- | D-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 500 A | 1250 W | 1.45V @ 15V, 400A (Typ) | 1 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
CM100RX-24SIGBT MOD 1200V 100A 750W |
11,852 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 100 A | 750 W | 2.15V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DX-12AIGBT MOD 600V 400A 1340W |
18,754 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 1340 W | 2.1V @ 15V, 400A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM20TF-24HIGBT MOD 1200V 20A 250W |
6,218 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 20 A | 250 W | 3.4V @ 15V, 20A | 1 mA | 4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IFS200B12N3E4B31BPSA1IGBT MOD 1200V 400A 940W |
18,826 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 400 A | 940 W | 2.1V @ 15V, 200A | 1 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MUBW50-17T8IGBT MODULE 1700V 74A 290W E3 |
7,480 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter with Brake | 1700 V | 74 A | 290 W | 2.4V @ 15V, 50A | 400 µA | 4.4 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|

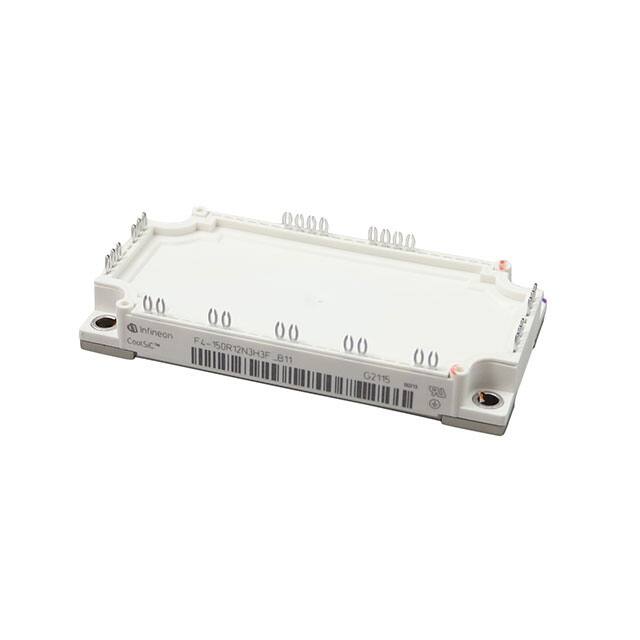

F4150R12N3H3FB11BPSA1LOW POWER ECONO AG-ECONO3B-411 |
3,598 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT50DH170TGIGBT MODULE 1700V 75A 312W SP4 |
8,920 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGL180A120T3AGIGBT MODULE 1200V 230A 940W SP3 |
18,162 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 230 A | 940 W | 2.2V @ 15V, 150A | 300 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
MG12100W-XN2MMIGBT MOD 1200V 140A 450W |
12,052 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 140 A | 450 W | 1.7V @ 15V, 100A (Typ) | 1 mA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
CM300DY-24AIGBT MOD 1200V 300A 1890W |
17,774 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1890 W | 3V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP150R12KT4B11BPSA1IGBT MODULE 1200V 150A |
16,716 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT100H60TGIGBT MODULE 600V 150A 340W SP4 |
10,256 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
