IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F |
5,754 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
FP100R12N3T4PB81BPSA1LOW POWER ECONO |
5,716 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MG1275W-XN2MMIGBT MOD 1200V 105A 368W |
7,314 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 368 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
DF300R07PE4B6BOSA1IGBT MOD 650V 300A 940W |
15,430 |
|
- |
EconoPACK™ 4 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 300 A | 940 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM75TU-12FIGBT MODULE 600V 75A 290W |
19,202 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 600 V | 75 A | 290 W | 2.2V @ 15V, 75A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS150R17N3E4B11BOSA1IGBT MOD 1700V 150A 835W |
13,728 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | 835 W | 2.3V @ 15V, 150A | 1 mA | 13.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FD450R12KE4HPSA1MEDIUM POWER 62MM |
7,028 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GD120DLCBOSA1IGBT MOD 1200V 85A 350W |
5,960 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.6V @ 15V, 50A | 84 µA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 |
4,718 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 |
17,710 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

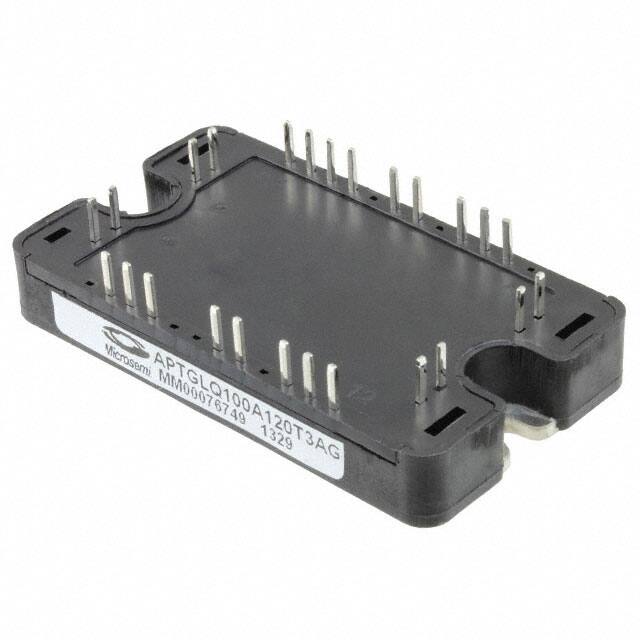

APTGLQ100A120T3AGIGBT MODULE 1200V 185A 650W SP3 |
6,394 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 185 A | 650 W | 2.4V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGF90TDU60PGIGBT MODULE 600V 110A 416W SP6P |
6,848 |
|
- |
- | SP6 | Bulk | Obsolete | NPT | Triple, Dual - Common Source | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
|
CM75RL-24NFIGBT MOD 1200V 75A 520W |
11,052 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 520 W | 3V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
MG1275H-XN2MMIGBT MOD 1200V 105A 348W |
14,722 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 348 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
NXH800A100L4Q2F2P2GMASS MARKET GEN3 Q2PACK NEGATIVE |
4,456 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1000 V | 309 A | 714 W | 2.3V @ 15V, 400A | 20 µA | 49700 pF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 51-PIM/Q2PACK (93x47) |
|
|
MIXA100W1200TEHIGBT MODULE 1200V 155A 500W E3 |
6,114 |
|
- |
- | E3 | Box | Active | PT | Three Phase Inverter | 1200 V | 155 A | 500 W | 2.1V @ 15V, 100A | 300 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|

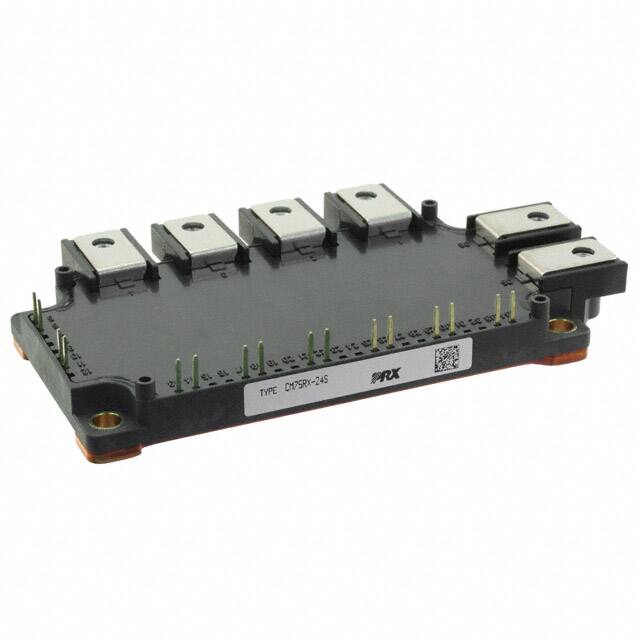

CM75RX-24SIGBT MOD 1200V 75A 600W |
13,200 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.15V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DU-24FIGBT MOD 1200V 150A 600W |
11,656 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 150 A | 600 W | 2.4V @ 15V, 150A | 1 mA | 59 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TU-24FIGBT MOD 1200V 50A 320W |
14,688 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 50 A | 320 W | 2.4V @ 15V, 50A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DY-12NFIGBT MOD 600V 300A 780W |
18,470 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 300 A | 780 W | 2.2V @ 15V, 300A | 1 mA | 45 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
