IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH300N95H4Q2F2SG1500V 125KW I-NPC Q2 PACK STRING |
12,350 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGLQ40DDA120CT3GIGBT MODULE 1200V 75A 250W SP6 |
13,612 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
|
APTGT50DU120TGIGBT MODULE 1200V 75A 277W SP4 |
11,016 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
FP25R12U1T4BPSA1IGBT MOD 1200V 39A 190W |
10,246 |
|
- |
SmartPIM1 | Module | Tray | Last Time Buy | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 190 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MIXA80W1200PTEHIGBT MODULE SIXPACK E3-PACK-PF |
14,182 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM150DY-24NFIGBT MOD 1200V 150A 780W |
4,172 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 150 A | 780 W | 2.5V @ 15V, 150A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FS75R07U1E4BPSA1IGBT MOD 650V 100A 275W |
6,314 |
|
- |
SmartPACK1 | Module | Tray | Last Time Buy | Trench Field Stop | Full Bridge | 650 V | 100 A | 275 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MWI50-12A7IGBT MODULE 1200V 85A 350W E2 |
15,058 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
FS100R12N2T4PBPSA1IGBT MODULE LOW POWER ECONO |
4,348 |
|
- |
EconoPACK™ 2 | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

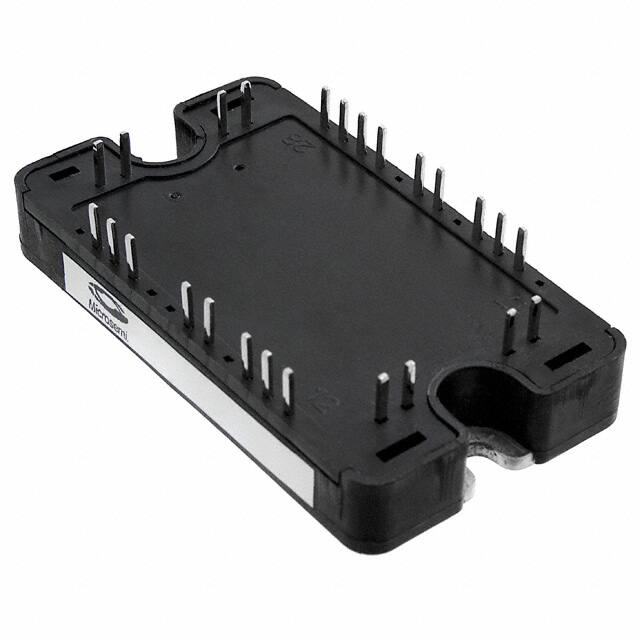

APTGT100H60T3GIGBT MODULE 600V 150A 340W SP3 |
4,564 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT100DH60TGIGBT MODULE 600V 150A 340W SP4 |
5,782 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
FF225R17ME4PBPSA1IGBT MOD 1700V 450A 20MW |
11,214 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 450 A | - | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MITA300RF1700PTEDIGBT MODULE - OTHERS E2-PACK-PFP |
18,726 |
|
- |
- | E2 | Box | Active | Trench | Single Chopper | 1700 V | 400 A | 1390 W | 2.45V @ 15V, 300A | 1.2 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|

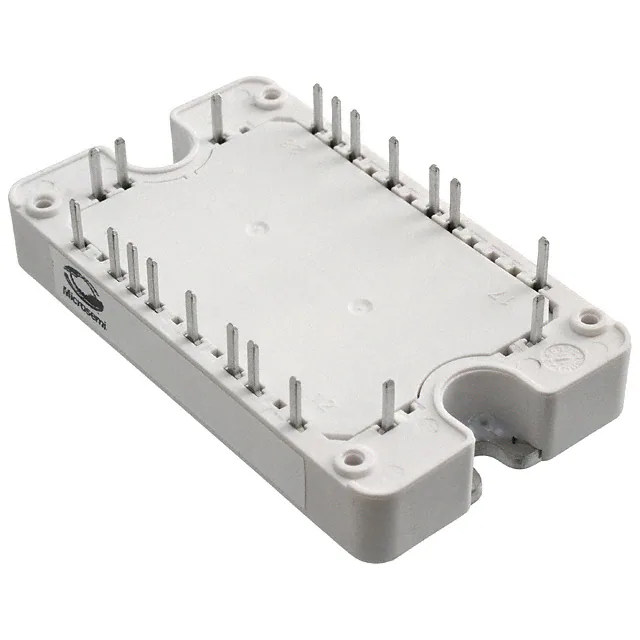

APTCV60HM45RT3GIGBT MODULE 600V 50A 250W SP3 |
7,994 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
IRG7T400SD12BIGBT MOD 1200V 780A POWIR 62 |
11,788 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 780 A | 2140 W | 2.2V @ 15V, 400A | 4 mA | 58.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
|
MWI50-12A7TIGBT MODULE 1200V 85A 350W E2 |
14,964 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
FS75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
19,456 |
|
- |
EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
MIXA600PF650TSFIGBT MOD 650V 720A 1750W |
16,386 |
|
- |
- | Module | Box | Obsolete | PT | Half Bridge | 650 V | 720 A | 1750 W | 1.8V @ 15V, 600A | 1.8 mA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
|
APTGT150A60T3AGIGBT MODULE 600V 225A 600W SP3 |
19,568 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 225 A | 600 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FF300R12ME4PB11BPSA1IGBT MOD 1200V 600A 20MW |
12,676 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
