Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0431601103CONN HDR 3POS 7.50MM R/A SLDR |
40,000 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 3 | 0.295" (7.50mm) | Through Hole, Right Angle | 1 | Solder | - | - | Black |
|
1720420601CONN HDR 6POS 7.50MM PCB SLDR |
4,564 |
|
Datasheet |
Super Sabre 172042 | Tray | Active | - | Header, Male Blades | 6 | 0.295" (7.50mm) | Through Hole | 1 | Solder | - | Finger-Proof | Black |
|
0431605303CONN HDR 3POS 7.50MM R/A SLDR |
1,242 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 3 | 0.295" (7.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Lock | Black |
|
1747367-1CONN RCPT 5POS 2.50MM PCB SLDR |
2,624 |
|
Datasheet |
- | Bulk | Active | Battery | Receptacle, Female Blade Sockets | 5 | 0.098" (2.50mm) | Through Hole | - | Solder | - | - | Black |
|
0431604304CONN HDR 4POS 7.50MM PCB SLDR |
558 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 4 | 0.295" (7.50mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|
1746798-1CONN RCPT 8POS 2.50MM R/A SLDR |
8,420 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 8 | 0.098" (2.50mm) | Through Hole, Right Angle | 1 | Solder | - | Keyed | Black |
|
1827684-1CONN RCPT 7POS 2.00MM PCB SLDR |
2,974 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 7 | 0.079" (2.00mm) | Through Hole | 1 | Solder | - | Keyless | Black |
|

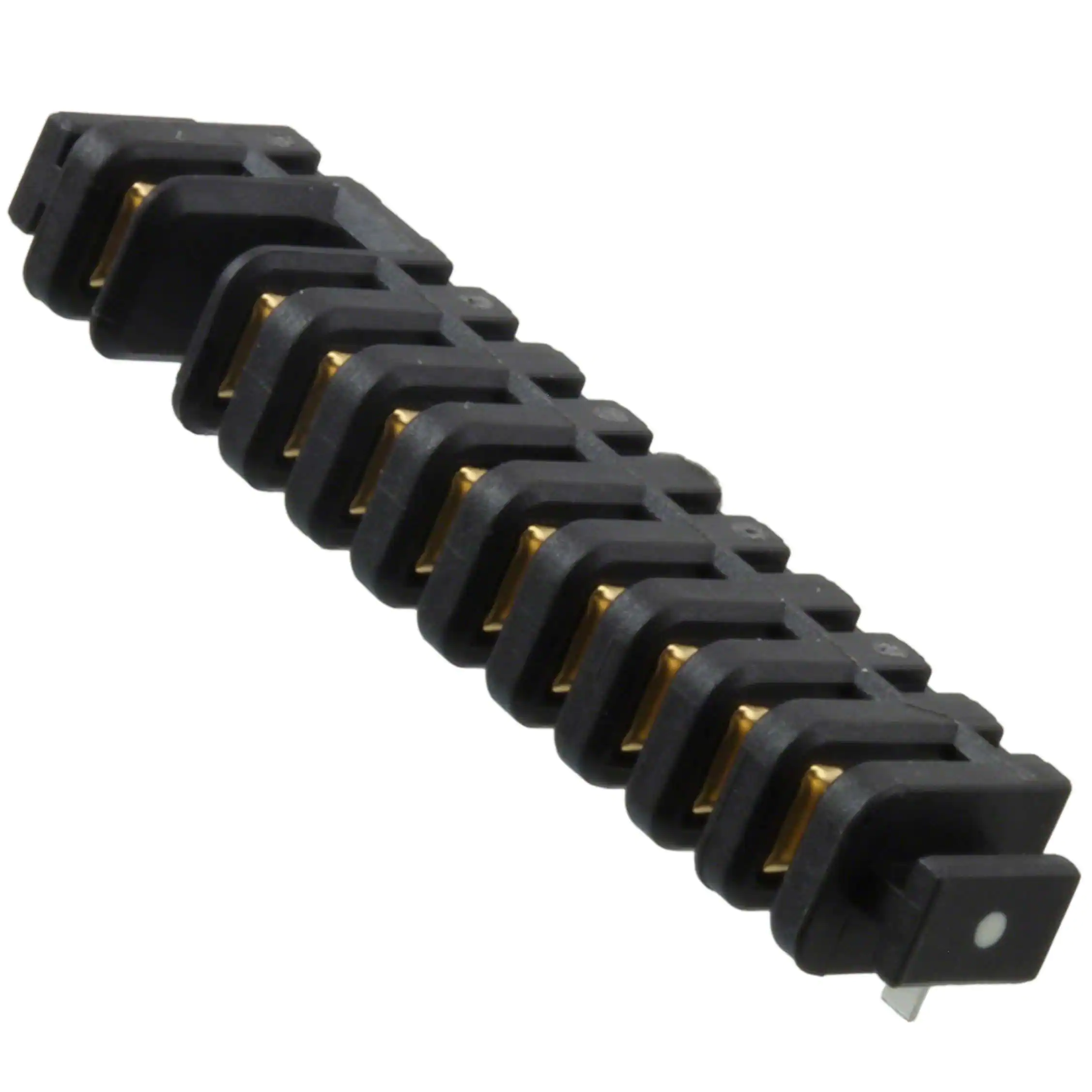

1-1473776-7CONN RCPT 10POS 2.50MM PCB SLDR |
7,000 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 10 | 0.098" (2.50mm) | Through Hole | 1 | Solder | - | Solder Retention | Black |
|
0431604305CONN HDR 5POS 7.50MM PCB SLDR |
1,494 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 5 | 0.295" (7.50mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|
1717478-2CONN RCPT 8POS 2.50MM PCB SLDR |
252 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 8 | 0.098" (2.50mm) | Through Hole | 1 | Solder | - | Keyed | Black |
|
1720430206CONN HDR 2POS 7.50MM R/A SLDR |
778 |
|
Datasheet |
Super Sabre 172043 | Tray | Active | - | Header, Male Blades | 2 | 0.295" (7.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Lock, Finger-Proof | Black |
|
UMPT-02-01.5-L-V-S-W-TRCONN HDR 2POS 2.00MM SMD SLDR |
456 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPS-02-05.5-L-V-S-W-TRCONN RCPT 2POS 2.00MM SMD SLDR |
1,506 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPT-02-02.5-L-V-S-W-TRCONN HDR 2POS 2.00MM SMD SLDR |
1,802 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPT-02-02.5-L-V-S-W-M-TRCONN HDR 2POS 2.00MM SMD SLDR |
286 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPS-02-07.5-L-V-S-W-TRCONN RCPT 2POS 2.00MM SMD SLDR |
306 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPT-02-01-T-RA-WT-TRCONN HDR 2POS 2.00MM R/A SLDR |
318 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount, Right Angle | 1 | Solder | - | Solder Retention | Black |
|
UMPT-02-06.5-G-V-S-W-TRCONN HDR 2POS 2.00MM SMD SLDR |
1,406 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|
0431601105CONN HDR 5POS 7.50MM R/A SLDR |
1,516 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 5 | 0.295" (7.50mm) | Through Hole, Right Angle | 1 | Solder | - | - | Black |
|
|
UMPT-02-01-L-RA-WT-TRCONN HDR 2POS 2.00MM R/A SLDR |
558 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount, Right Angle | 1 | Solder | - | Solder Retention | Black |
