Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPS-04-01-01-L-RACONN RCPT 4POS 3.81MM R/A SLDR |
1,140 |
|
Datasheet |
PowerStrip™ 20 UPS | Tube | Active | - | Receptacle, Female Blade Sockets | 4 | 0.150" (3.81mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
MPS-04-7.70-03-L-VCONN RCPT 4POS 5.00MM PCB SLDR |
332 |
|
Datasheet |
PowerStrip™ 30 MPS | Tray | Active | - | Receptacle, Female Blade Sockets | 4 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|
UMPT-05-01.5-G-V-S-W-TRCONN HDR 5POS 2.00MM SMD SLDR |
6,076 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 5 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|
UMPS-05-05.5-G-V-S-W-TRCONN RCPT 5POS 2.00MM SMD SLDR |
990 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 5 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|
1827654-1CONN HDR 7POS 2.00MM R/A SLDR |
2,730 |
|
Datasheet |
- | Tray | Active | Battery | Header, Male Blades | 7 | 0.079" (2.00mm) | Through Hole, Right Angle | 1 | Solder | - | Keyless | Black |
|

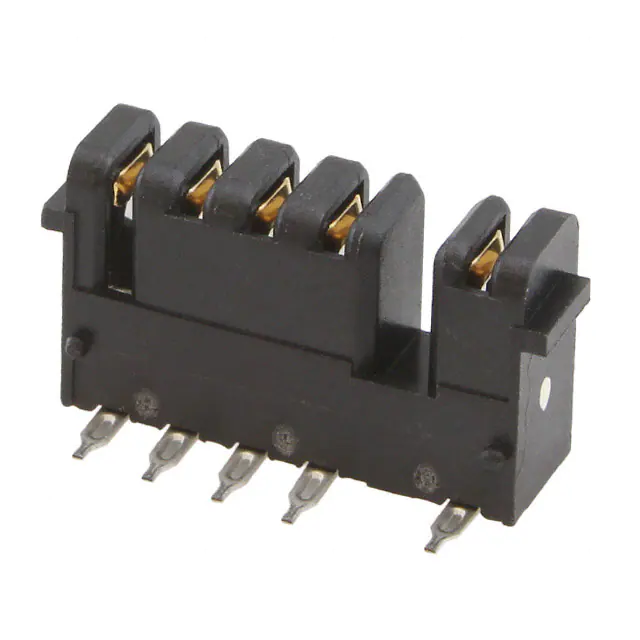

1473971-2CONN RCPT 5POS 2.50MM R/A SLDR |
1,930 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 5 | 0.098" (2.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
MPT-04-01-01-L-RA-SDCONN HDR 4POS 5.00MM R/A SLDR |
4,554 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 4 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide, Latch Lock | Black |
|
MPT-04-01-03-L-RA-SDCONN HDR 4POS 5.00MM R/A SLDR |
304 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 4 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | - | Black |
|
UMPT-06-01.5-L-V-S-W-TRCONN HDR 6POS 2.00MM SMD SLDR |
556 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 6 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPS-06-05.5-L-V-S-W-TRCONN RCPT 6POS 2.00MM SMD SLDR |
758 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 6 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|

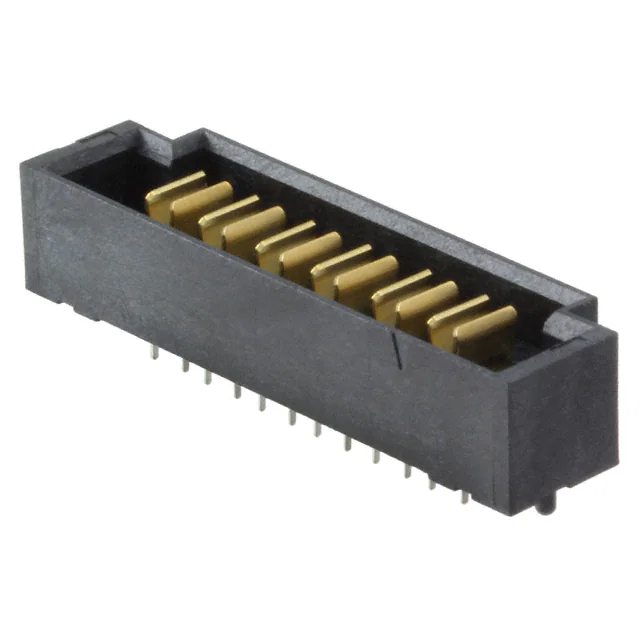

UPT-06-03.0-01-L-VCONN HDR 6POS 3.81MM PCB SLDR |
538 |
|
Datasheet |
PowerStrip™ 20 UPT | Tube | Active | - | Header, Male Blades | 6 | 0.150" (3.81mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|
6376042-2CONN PLUG 5POS 2.50MM R/A SLDR |
2,876 |
|
Datasheet |
- | Bulk | Active | Battery | Plug, Male Blades | 5 | 0.098" (2.50mm) | Through Hole, Right Angle | 1 | Solder | - | - | Black |
|

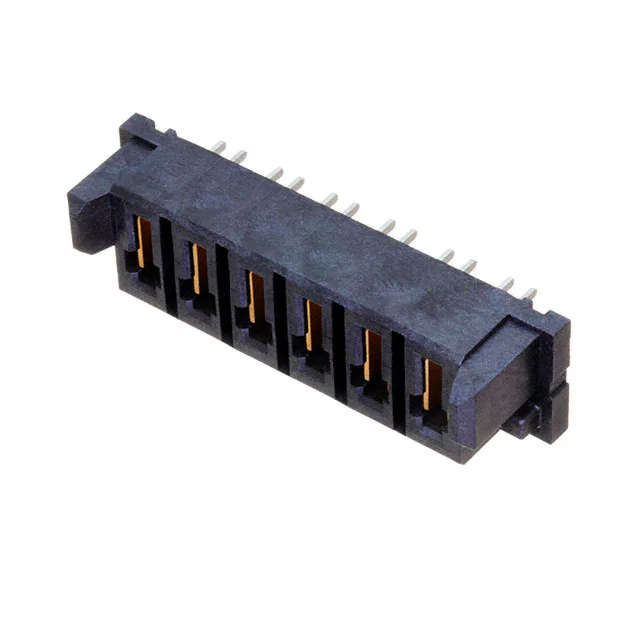

MPS-06-7.70-03-L-VCONN RCPT 6POS 5.00MM PCB SLDR |
3,222 |
|
Datasheet |
PowerStrip™ 30 MPS | Tray | Active | - | Receptacle, Female Blade Sockets | 6 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|

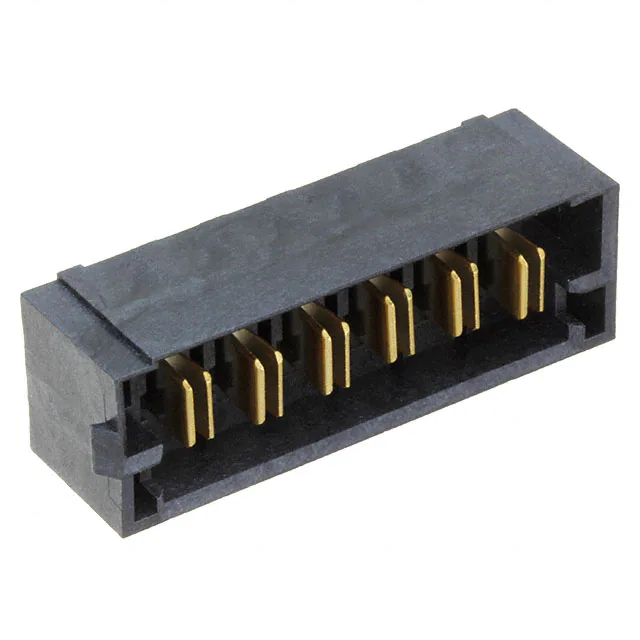

MPT-06-6.30-01-L-VCONN HDR 6POS 5.00MM PCB SLDR |
368 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 6 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide, Latch Lock | Black |
|

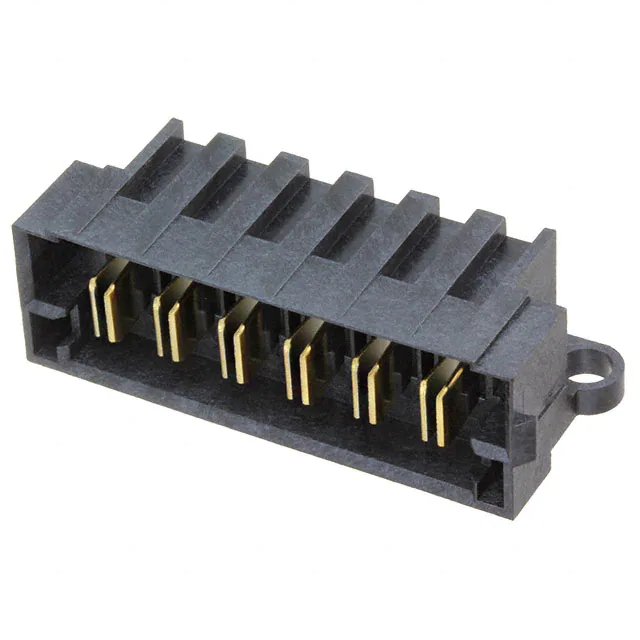

MPT-06-01-01-L-RA-SDCONN HDR 6POS 5.00MM R/A SLDR |
3,428 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 6 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide, Latch Lock | Black |
|

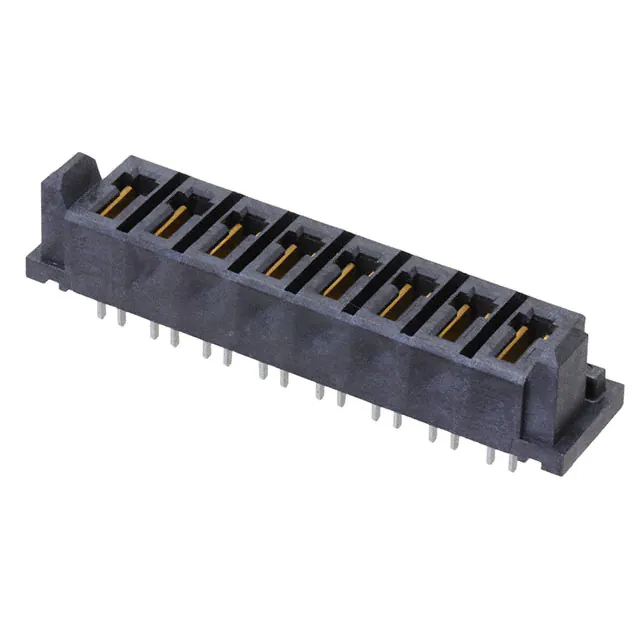

MPS-08-7.70-03-L-VCONN RCPT 8POS 5.00MM PCB SLDR |
210 |
|
Datasheet |
PowerStrip™ 30 MPS | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | - | Black |
|
5787441-1CONN HDR 5POS 5.00MM R/A SLDR |
4,920 |
|
Datasheet |
- | Tray | Active | Battery | Header, Male Blades | 5 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | Keyless | Black |
|
UPT-08-01-01-L-RACONN HDR 8POS 3.81MM R/A SLDR |
7,524 |
|
Datasheet |
PowerStrip™ 20 UPT | Tube | Active | - | Header, Male Blades | 8 | 0.150" (3.81mm) | Through Hole, Right Angle | 1 | Solder | - | - | Black |
|

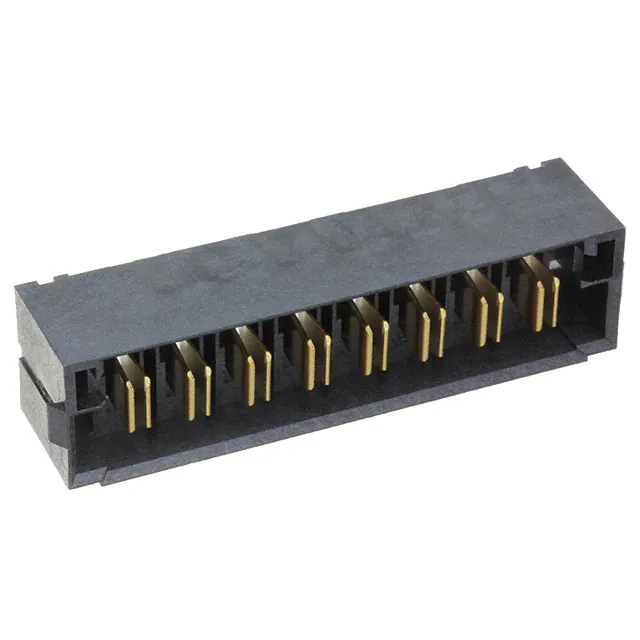

MPT-08-6.30-03-L-VCONN HDR 8POS 5.00MM PCB SLDR |
212 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 8 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide, Latch Lock | Black |
|
UMPS-10-07.5-L-V-S-W-TRCONN RCPT 10POS 2.00MM SMD SLDR |
548 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 10 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
