Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UMPS-02-05.5-G-V-S-W-TRCONN RCPT 2POS 2.00MM SMD SLDR |
900 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|
1612963-4CONN RCPT 10POS 2.00MM PCB SLDR |
21,482 |
|
Datasheet |
- | Bulk | Active | Battery | Receptacle, Female Blade Sockets | 10 | 0.079" (2.00mm) | Through Hole | 1 | Solder | - | Flange | Black |
|
1565986-1CONN RCPT 5POS 2.50MM PCB SLDR |
18,652 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 5 | 0.098" (2.50mm) | Through Hole | 1 | Solder Eyelet(s) | - | Board Guide | Black |
|
6318977-3CONN HDR 6POS 2.50MM R/A SLDR |
6,716 |
|
Datasheet |
- | Bulk | Active | Battery | Header, Male Blades | 6 | 0.098" (2.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide, Flange | Black |
|

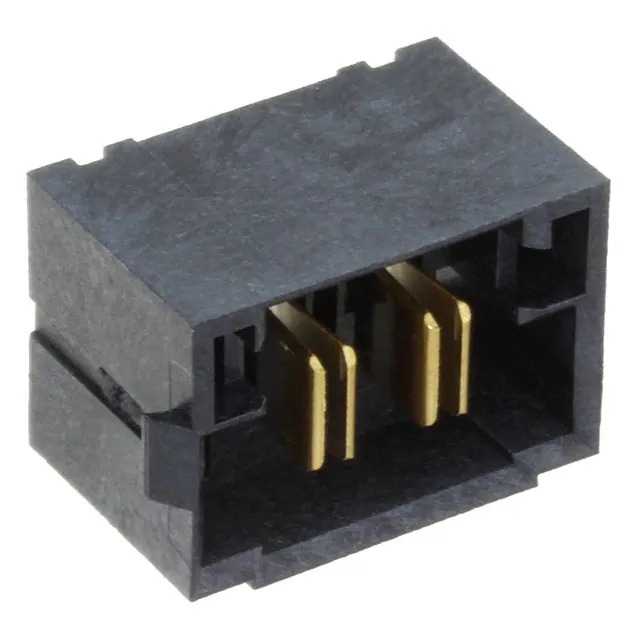

MPT-02-6.30-01-L-VCONN HDR 2POS 5.00MM PCB SLDR |
4,034 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 2 | 0.197" (5.00mm) | Through Hole | 2 | Solder | - | Board Guide, Latch Lock | Black |
|
UMPT-03-01-L-RA-WT-M-TRCONN HDR 3POS 2.00MM R/A SLDR |
446 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 3 | 0.079" (2.00mm) | Surface Mount, Right Angle | 1 | Solder | - | Solder Retention | Black |
|

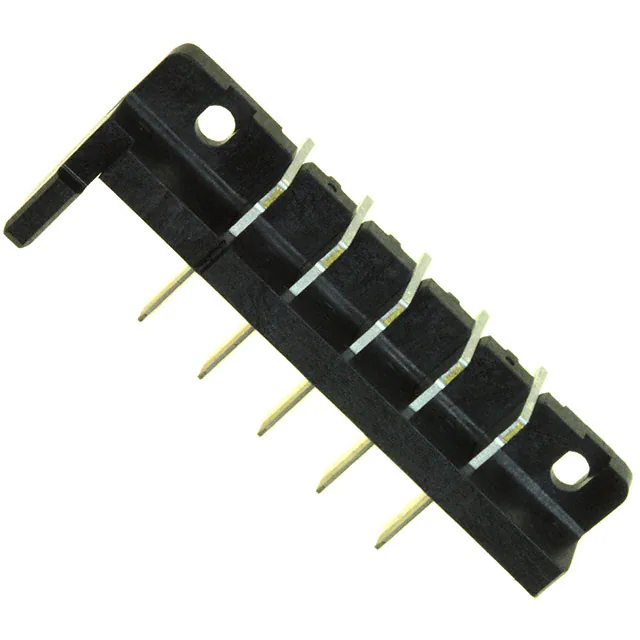

5787246-1CONN HDR 5POS 5.00MM R/A SLDR |
7,084 |
|
Datasheet |
- | Tray | Active | 10.8V Battery | Header, Male Blades | 5 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | Flange, Left Hand Keying | Black |
|
UMPT-04-01.5-L-V-S-W-TRCONN HDR 4POS 2.00MM SMD SLDR |
1,236 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
787439-1CONN RCPT 5POS 5.00MM SMD SLDR |
17,472 |
|
Datasheet |
- | Tray | Active | 12.0V Battery | Receptacle, Female Blade Sockets | 5 | 0.197" (5.00mm) | Surface Mount | 1 | Solder | - | Right Hand Keying | Black |
|
UMPS-04-05.5-L-V-S-W-TRCONN RCPT 4POS 2.00MM SMD SLDR |
1,756 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
0431603106CONN HDR 6POS 7.50MM R/A SLDR |
7,196 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 6 | 0.295" (7.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Lock | Black |
|
UMPS-03-03.5-G-V-S-W-TRCONN RCPT 3POS 2.00MM SMD SLDR |
3,340 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 3 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|
UMPS-04-05.5-G-V-S-W-TRCONN RCPT 4POS 2.00MM SMD SLDR |
408 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|
UMPT-04-02.5-L-V-S-W-TRCONN HDR 4POS 2.00MM SMD SLDR |
1,174 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
UMPS-04-07.5-L-V-S-W-TRCONN RCPT 4POS 2.00MM SMD SLDR |
1,080 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
5787443-1CONN HDR 5POS 5.00MM KINKED PIN |
4,134 |
|
Datasheet |
- | Tray | Active | Battery | Header, Male Blades | 5 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Kinked Pin | - | Keyless | Black |
|
UMPT-04-06.5-G-V-S-W-TRCONN HDR 4POS 2.00MM SMD SLDR |
4,820 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Pick and Place, Solder Retention | Black |
|

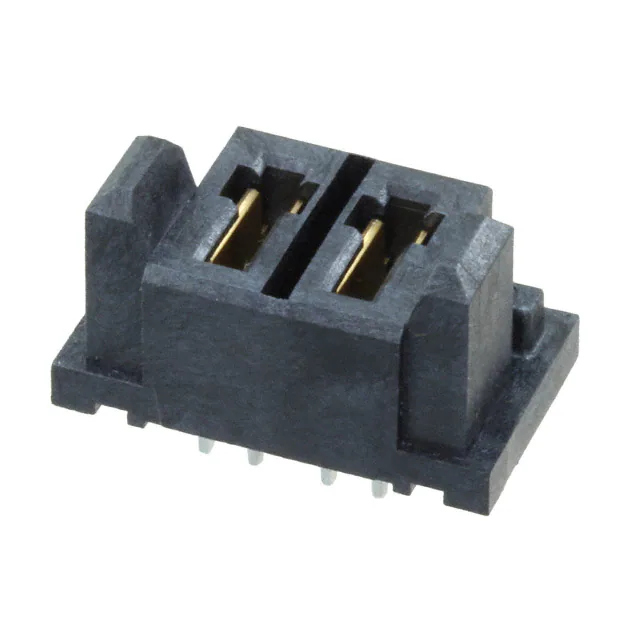

MPS-02-7.70-01-L-VCONN RCPT 2POS 5.00MM PCB SLDR |
290 |
|
Datasheet |
PowerStrip™ 30 MPS | Tray | Active | - | Receptacle, Female Blade Sockets | 2 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|

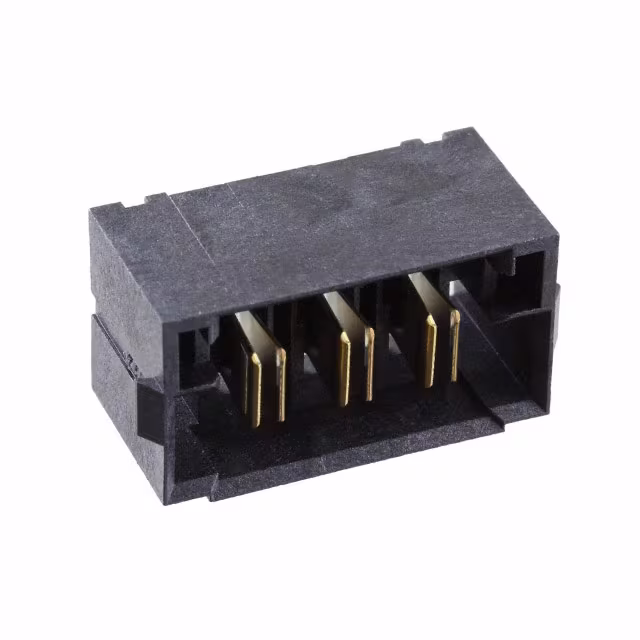

MPT-03-6.30-01-L-VCONN HDR 3POS 5.00MM PCB SLDR |
454 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 3 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide, Latch Lock | Black |
|
UMPT-04-12.5-L-V-S-W-TRCONN HDR 4POS 2.00MM SMD SLDR |
540 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
