Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPS-08-01-01-L-RACONN RCPT 8POS 3.81MM R/A SLDR |
298 |
|
Datasheet |
PowerStrip™ 20 UPS | Tube | Active | - | Receptacle, Female Blade Sockets | 8 | 0.150" (3.81mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
1123688-3CONN RCPT 6POS 2.50MM SMD SLDR |
2,964 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 6 | 0.098" (2.50mm) | Surface Mount | 1 | Solder | - | Board Lock | Black |
|
0468171002CONN PLUG 2POS 11.00MM R/A SLDR |
594 |
|
Datasheet |
EXTreme Guardian 46817 | Tray | Active | - | Plug, Male Blades | 2 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide, Flange | Black |
|
UMPT-10-06.5-L-V-S-TRCONN HDR 10POS 2.00MM SMD SLDR |
1,366 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 10 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | - | Black |
|

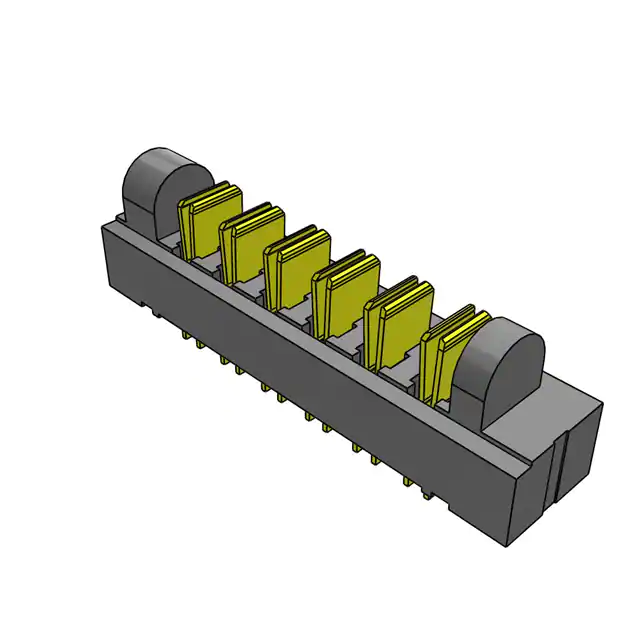

FMPT-06-01-L-S-VCONN HDR 6POS 5.00MM PCB SLDR |
540 |
|
Datasheet |
PowerStrip™ 30 FMPT | Tray | Active | - | Header, Male Blades | 6 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|
UMPT-08-01-L-RA-WT-TRCONN HDR 8POS 2.00MM R/A SLDR |
532 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 8 | 0.079" (2.00mm) | Surface Mount, Right Angle | 1 | Solder | - | Solder Retention | Black |
|
1445716-7CONN PLUG 1POS IN-LINE CRIMP |
202 |
|
Datasheet |
Power Series 75 | Bulk | Active | Single Pole | Non-Gendered | 1 | - | Free Hanging (In-Line) | 1 | Crimp | 6 AWG | Stackable | Black |
|
1445716-5CONN PLUG 1POS IN-LINE CRIMP |
428 |
|
Datasheet |
Power Series 75 | Bulk | Active | Single Pole | Non-Gendered | 1 | - | Free Hanging (In-Line) | 1 | Crimp | 6 AWG | Stackable | Red |
|
UMPT-10-02.5-L-V-S-W-TRCONN HDR 10POS 2.00MM SMD SLDR |
618 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 10 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
|
UMPT-10-02.5-L-V-S-W-P-TRCONN HDR 10POS 2.00MM SMD SLDR |
328 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 10 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
|
MPT-08-01-03-L-RA-SDCONN HDR 8POS 5.00MM R/A SLDR |
526 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 8 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | - | Black |
|
556881-3CONN RCPT 3POS 11.18MM PCB SLDR |
2,464 |
|
Datasheet |
AMPINNERGY | Bulk | Active | - | Receptacle, Female Blade Sockets | 3 | 0.440" (11.18mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|

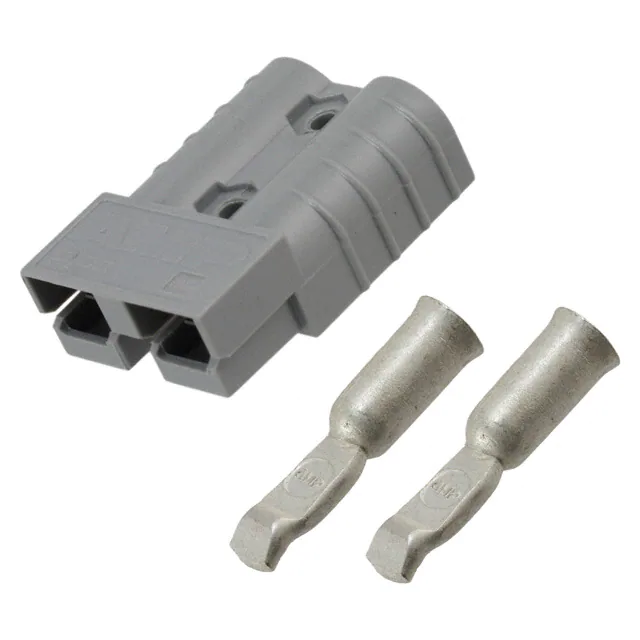

647892-4CONN PLUG 2POS IN-LINE CRIMP |
266 |
|
Datasheet |
Power Series 50 | Bulk | Active | 2 Poles | Non-Gendered | 2 | - | Free Hanging (In-Line) | 1 | Crimp | 6 AWG | - | Gray |
|
6318430-2CONN RCPT 5POS 2.50MM R/A SLDR |
9,620 |
|
Datasheet |
- | Bulk | Active | Battery | Receptacle, Female Blade Sockets | 5 | 0.098" (2.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
2141130011CONN PLUG 17POS 2.00MM R/A SLDR |
624 |
|
Datasheet |
EXTreme Guardian 214113 | Tray | Active | - | Plug, Male Blades | 17 | 0.079" (2.00mm) | Through Hole, Right Angle | 5 | Solder | - | Board Guide, Mating Guide | Black |
|
FMPS-08-01-L-S-RA-SDCONN RCPT 8POS 5.00MM R/A SLDR |
5,250 |
|
Datasheet |
PowerStrip™ 30 FMPS | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | Flange | Black |
|
PET-04-01-L-VTCONN HDR 4POS PCB SLDR |
5,220 |
|
Datasheet |
PowerStrip™ 40 PET | Tray | Active | - | Header, Male Blades | 4 | - | Through Hole | 1 | Solder | - | - | Black |
|

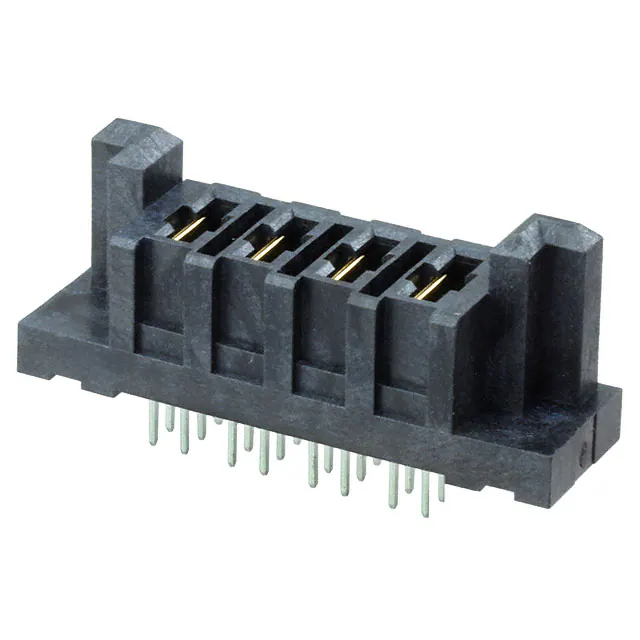

PES-04-02-L-VTCONN RCPT 4POS PCB SLDR |
6,210 |
|
Datasheet |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 4 | - | Through Hole | 1 | Solder | - | - | Black |
|
556882-4CONN RCPT 4POS 11.18MM R/A SLDR |
928 |
|
Datasheet |
AMPINNERGY | Bulk | Active | - | Receptacle, Female Blade Sockets | 4 | 0.440" (11.18mm) | Through Hole, Right Angle | 1 | Solder | - | Flange | Black |
|
2141140001CONN RCPT 38POS PCB SLDR |
494 |
|
Datasheet |
EXTreme Guardian 214114 | Tray | Active | - | Receptacle, Female Blade Sockets | 38 | - | Through Hole | 5 | Solder | - | Mating Guide | Black |
