Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS75GPRBLK-BKCONN PLUG 3POS IN-LINE SLDR |
2,402 |
|
Datasheet |
SBS® 75G | Bag | Active | - | Non-Gendered | 3 | - | Free Hanging (In-Line) | 1 | Solder | - | - | Black |
|

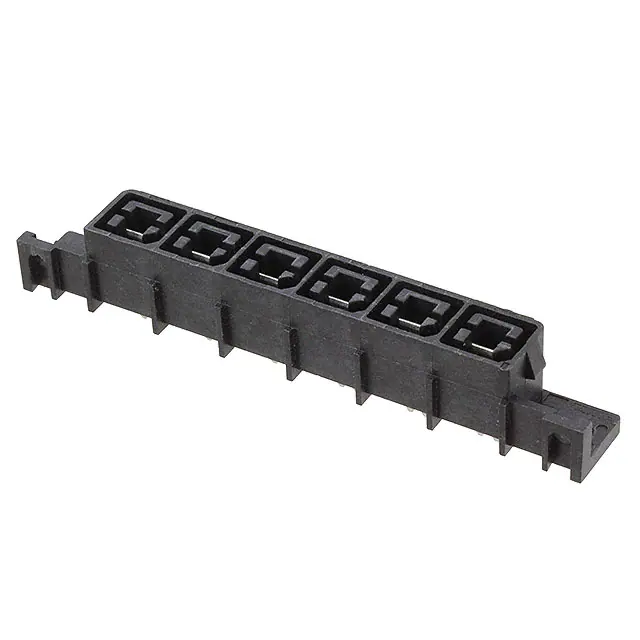

556881-6CONN RCPT 6POS 11.18MM PCB SLDR |
288 |
|
Datasheet |
AMPINNERGY | Bulk | Active | - | Receptacle, Female Blade Sockets | 6 | 0.440" (11.18mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|
1604002-5CONN PLUG 1POS IN-LINE CRIMP |
470 |
|
Datasheet |
Power Series 120 | Bulk | Active | Single Pole | Non-Gendered | 1 | - | Free Hanging (In-Line) | 1 | Crimp | 2 AWG | Stackable | Red |
|
441G1CONN PLUG 4POS IN-LINE CRIMP |
208 |
|
Datasheet |
SBE®160 | Bulk | Active | Single Pole | Non-Gendered | 4 | - | Free Hanging (In-Line) | 1 | Crimp | 14-16 AWG | - | - |
|
556882-6CONN RCPT 6POS 11.18MM R/A SLDR |
984 |
|
Datasheet |
AMPINNERGY | Bulk | Active | - | Receptacle, Female Blade Sockets | 6 | 0.440" (11.18mm) | Through Hole, Right Angle | 1 | Solder | - | Flange | Black |
|
556881-7CONN RCPT 7POS 11.18MM PCB SLDR |
648 |
|
Datasheet |
AMPINNERGY | Bulk | Active | - | Receptacle, Female Blade Sockets | 7 | 0.440" (11.18mm) | Through Hole | 1 | Solder | - | Board Guide | Black |
|
414575-ECONN HDR 15POS 7.62MM R/A SLDR |
326 |
|
Datasheet |
DIN | Tray | Active | - | Header, Male Blades | 15 | 0.300" (7.62mm) | Through Hole, Right Angle | 2 | Solder | - | Flange | - |
|
1-1827684-2CONN RCPT 7POS 2.00MM EDGE R/A |
5,624 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 7 | 0.079" (2.00mm) | Board Edge, Surface Mount, Right Angle | 1 | Solder | - | Keyed, Panel Stops | Black |
|
0919991238CONN HDR 3POS 5.00MM PCB SLDR |
11,962 |
|
Datasheet |
91999 | Bulk | Active | - | Header, Male Blades | 3 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide, Keyed | Natural |
|
1827684-3CONN RCPT 7POS 2.00MM EDGE R/A |
13,864 |
|
Datasheet |
- | Tray | Active | Battery | Receptacle, Female Blade Sockets | 7 | 0.079" (2.00mm) | Board Edge, Surface Mount, Right Angle | 1 | Solder | - | Keyed, Panel Stops | Black |
|
0431600303CONN HDR 3POS 7.50MM PCB SLDR |
1,726 |
|
Datasheet |
Sabre 43160 | Bulk | Active | - | Header, Male Blades | 3 | 0.295" (7.50mm) | Through Hole | 1 | Solder | - | - | Black |
|
0919991284CONN HDR 4POS 5.00MM PCB SLDR |
1,190 |
|
Datasheet |
Appli-Mate 91999 | Bulk | Active | - | Header, Male Blades | 4 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide | Natural |
|
0431606303CONN HDR 3POS 7.50MM PCB SLDR |
826 |
|
Datasheet |
Sabre 43160 | Tray | Active | - | Header, Male Blades | 3 | 0.295" (7.50mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|
1717445-5CONN HDR 8POS 2.50MM R/A SLDR |
532 |
|
Datasheet |
- | Tray | Active | Battery | Header, Male Blades | 8 | 0.098" (2.50mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
UMPT-02-01.5-L-V-S-TRCONN HDR 2POS 2.00MM SMD SLDR |
624 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | - | Black |
|
1720420306CONN HDR 3POS 7.50MM PCB SLDR |
660 |
|
Datasheet |
Super Sabre 172042 | Tray | Active | - | Header, Male Blades | 3 | 0.295" (7.50mm) | Through Hole | 1 | Solder | - | Board Lock, Finger-Proof | Black |
|
UMPT-02-06.5-L-V-S-TRCONN HDR 2POS 2.00MM SMD SLDR |
2,400 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | - | Black |
|
UMPT-02-02.5-L-V-S-TRCONN HDR 2POS 2.00MM SMD SLDR |
446 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | - | Black |
|
UMPT-02-07.5-L-V-S-TRCONN HDR 2POS 2.00MM SMD SLDR |
310 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | - | Black |
|
UMPS-02-03.5-L-V-S-W-TRCONN RCPT 2POS 2.00MM SMD SLDR |
960 |
|
Datasheet |
mPower™ UMPS | Tape & Reel (TR) | Active | - | Receptacle, Female Blade Sockets | 2 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | Solder Retention | Black |
