DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

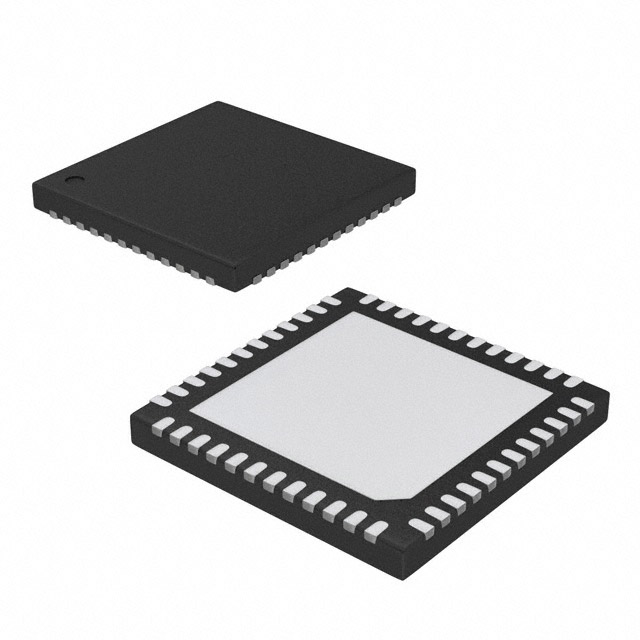

ADP5054ACPZ-R7IC REG CTRLR BUCK 48LFCSP |
2,814 |
|
Datasheet |
- | 48-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 4 | 2 | 4.5V ~ 15.5V | 250kHz ~ 2MHz | 50% | Yes | Yes | - | Enable, Frequency Control, Power Good | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 48-LFCSP (7x7) |
|
LTC3728EG#TRPBFIC REG CTRLR BUCK 28SSOP |
2,534 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 3.5V ~ 30V | 260kHz ~ 550kHz | 99.4% | Yes | No | - | Enable, Power Good, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
LTC7810ELXE#PBF150V LOW IQ, DUAL, 2-PHASE SYNCH |
474 |
|
Datasheet |
- | 48-LQFP Exposed Pad | Tray | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 140V | 105kHz ~ 780kHz | 100% | Yes | Yes | - | Current Limit, Frequency Control, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 48-eLQFP (7x7) |
|
LTC3780EUH#TRPBFIC REG CTRLR BUCK-BOOST 32QFN |
8,794 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
LTC3780EG#TRPBFIC REG CTRLR BUCK-BOOST 24SSOP |
6,444 |
|
Datasheet |
- | 24-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 24-SSOP |
|
|
LTC3780EUH#PBFIC REG CTRLR BUCK-BOOST 32QFN |
3,578 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
|
LTC3780EG#PBFIC REG CTRLR BUCK-BOOST 24SSOP |
882 |
|
Datasheet |
- | 24-SSOP (0.209", 5.30mm Width) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 24-SSOP |
|
|
LTC7821EUH#TRPBFIC REG CTRLR BUCK HYBRID 32QFN |
4,830 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 2 | 10V ~ 72V | 200kHz ~ 1.5MHz | 40% | No | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
LT3790IFE#TRPBFIC REG CTRLR BUCK-BOOST 38TSSOP |
6,040 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 4.7V ~ 60V | 200kHz ~ 700kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
|
LT3790IFE#PBFIC REG CTRLR BUCK-BOOST 38TSSOP |
1,686 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 4.7V ~ 60V | 200kHz ~ 700kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
|
LTC3890IUH#TRPBFIC REG CTRLR BUCK/SEPIC 32QFN |
5,902 |
|
Datasheet |
PolyPhase® | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4V ~ 60V | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 99% | Yes | No | - | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
LT8390HFE#TRPBF60V SYNCHRONOUS 4-SWITCH BUCK-BO |
3,950 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 60V | 190kHz ~ 630kHz | 95% | Yes | Yes | - | Current Limit, Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
|
LTC3708EUH#PBFIC REG CTRLR BUCK 32QFN |
2,212 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 3.2V ~ 36V | - | - | Yes | Yes | - | Enable, Power Good, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-QFN (5x5) |
|
|
LTC3727EG-1#PBFIC REG CTRLR BUCK 28SSOP |
282 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4V ~ 30V | 255kHz ~ 530kHz | 99.4% | Yes | No | - | Enable, Power Good, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
|
LTC3789IGN#TRPBFIC REG CTRLR BUCK-BOOST 28SSOP |
4,200 |
|
Datasheet |
- | 28-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 1 | 4V ~ 38V | 200kHz ~ 640kHz | 90% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-SSOP |
|
LTC3789IUFD#TRPBFIC REG CTRLR BUCK-BOOST 28QFN |
2,732 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 1 | 4V ~ 38V | 200kHz ~ 640kHz | 90% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-QFN (4x5) |
|
LTC1625CS#TRPBFIC REG CTRLR BUCK/BOOST 16SOIC |
5,992 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost | 1 | 1 | 3.7V ~ 36V | 150kHz | 99% | Yes | Yes | - | Enable, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SO |
|
LTC3895HFE#PBFIC REG CTRLR BUCK 38TSSOP |
2,882 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4V ~ 140V | 50kHz ~ 900kHz | 100% | Yes | No | - | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
|
LTC1775CS#PBFIC REG CTRLR BUCK/BCK-BST 16SOIC |
1,282 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Buck-Boost | 1 | 1 | 4V ~ 36V | 150kHz | 99% | Yes | Yes | - | Enable, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SO |
|
|
LTC1628IG#TRPBFIC REG CTRLR BUCK 28SSOP |
3,814 |
|
Datasheet |
- | 16-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 3.5V ~ 30V | 220kHz | 99.4% | Yes | No | - | Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
