DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3892IUH#TRPBFIC REG CTRLR BUCK 32QFN |
2,158 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 60V | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 99% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
|
LTC3892IUH#PBFIC REG CTRLR BUCK 32QFN |
620 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 60V | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 99% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
|
LTC3780IUH#PBFIC REG CTRLR BUCK-BOOST 32QFN |
10,156 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
LTC3780IG#TRPBFIC REG CTRLR BUCK-BOOST 24SSOP |
5,800 |
|
Datasheet |
- | 24-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SSOP |
|
|
LTC3892HUH#PBFIC REG CTRLR BUCK 32QFN |
2,058 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 60V | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 99% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|
|
LTC3780IG#PBFIC REG CTRLR BUCK-BOOST 24SSOP |
836 |
|
Datasheet |
- | 24-SSOP (0.209", 5.30mm Width) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 4V ~ 30V | 200kHz ~ 400kHz | 99% | Yes | No | - | Current Limit, Enable, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SSOP |
|
LTC7810ILXE#PBF150V LOW IQ, DUAL, 2-PHASE SYNCH |
9,170 |
|
Datasheet |
- | 48-LQFP Exposed Pad | Tray | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 140V | 105kHz ~ 780kHz | 100% | Yes | Yes | - | Current Limit, Frequency Control, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 48-eLQFP (7x7) |
|
LT8705AEFE#TRPBFIC REG CTRLR BUCK-BOOST 38TSSOP |
6,798 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 2.8V ~ 80V | 100kHz ~ 400kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 38-TSSOP-EP |
|
LTC3779EFE#PBFIC REG CTRLR BUCK-BOOST 38-TSSOP |
5,826 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tube | Active | Transistor Driver | Step-Up, Step-Down | Positive | Buck, Boost | 1 | 1 | 4.5V ~ 150V | 50kHz ~ 600kHz | 90% | Yes | No | - | Current Limit, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
LT8705EUHF#TRPBFIC REG CTRLR BUCK-BOOST 38QFN |
5,166 |
|
Datasheet |
- | 38-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 2.8V ~ 80V | 100kHz ~ 400kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-QFN (5x7) |
|
|
LTC3779EFE#TRPBFIC REG CTRLR BUCK-BOOST 38-TSSOP |
3,296 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Down | Positive | Buck, Boost | 1 | 1 | 4.5V ~ 150V | 50kHz ~ 600kHz | 90% | Yes | No | - | Current Limit, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
|
LT8705EFE#PBFIC REG CTRLR BUCK-BOOST 38TSSOP |
2,902 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 2.8V ~ 80V | 100kHz ~ 400kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
|
LT8705AEUHF#PBFIC REG CTRLR BUCK-BOOST 38QFN |
810 |
|
Datasheet |
- | 38-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 2.8V ~ 80V | 100kHz ~ 400kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 38-QFN (5x7) |
|

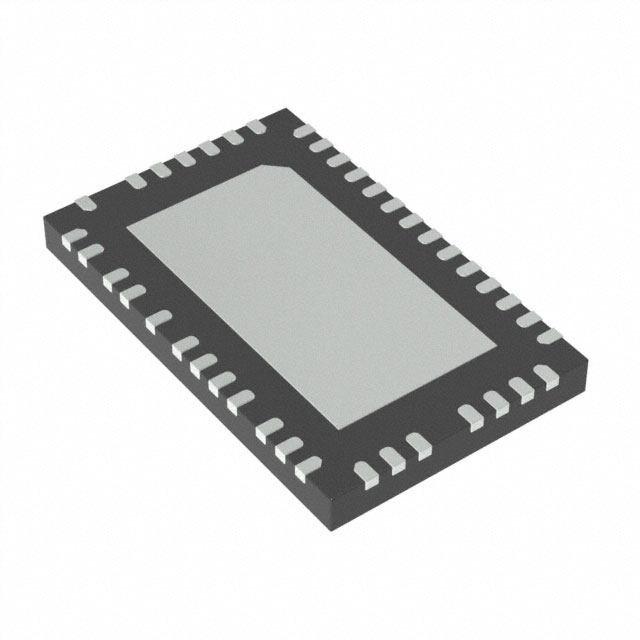

LT8708EUHG#TRPBF80V SYNCHRONOUS 4-SWITCH BUCK-BO |
752 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 2 | 2.8V ~ 80V | 100kHz ~ 400kHz | 80% | Yes | Yes | - | - | -40°C ~ 125°C | - | - | Surface Mount | 40-QFN (5x8) |
|
LTC3880IUJ#PBFIC REG CTRLR BUCK PMBUS 40QFN |
690 |
|
Datasheet |
PolyPhase® | 40-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 24V | - | - | Yes | Yes | I2C, PMBus | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 40-QFN (6x6) |
|
|
LTC3887IUJ#PBFIC REG CTRLR BUCK PMBUS 40QFN |
560 |
|
Datasheet |
PolyPhase® | 40-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 24V | 250kHz ~ 1MHz | - | Yes | Yes | I2C, PMBus | Enable, Frequency Control, Phase Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 40-QFN (6x6) |
|
|
LTC7810HLXE#PBF150V LOW IQ, DUAL, 2-PHASE SYNCH |
8,082 |
|
Datasheet |
- | 48-LQFP Exposed Pad | Tray | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 140V | 105kHz ~ 780kHz | 100% | Yes | Yes | - | Current Limit, Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 48-eLQFP (7x7) |
|
LTC3884IUK#PBFIC REG CTRLR BUCK PMBUS 48QFN |
956 |
|
Datasheet |
PolyPhase® | 48-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4.5V ~ 38V | 200kHz ~ 1MHz | - | Yes | Yes | I2C, PMBus | Enable, Frequency Control, Phase Control, Power Good | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 48-QFN (7x7) |
|
LTC3722IGN-1#PBFIC REG CTRLR FULL-BRIDGE 24SSOP |
1,594 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Full-Bridge | 2 | 2 | 3.8V ~ 10.25V | - | 98.5% | Yes | Yes | - | Current Limit, Ramp, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SSOP |
|
|
LT8705IUHF#PBFIC REG CTRLR BUCK-BOOST 38QFN |
5,984 |
|
Datasheet |
- | 38-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 2 | 2.8V ~ 80V | 100kHz ~ 400kHz | - | Yes | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-QFN (5x7) |
